My experience with the PC components market has sometimes led me down the wrong path, but more often than not, the results are surprisingly positive. For instance, when I was offered to review an affordable RAM module from the Ukrainian brand Prologix, I expected something without a heatsink, slow performance, using old Samsung chips, and full of potential issues. However, I have to admit that I was wrong about the Prologix DDR5 6000MHz 32GB, and that’s a good thing.
Technical characteristics
- Part number: PRO32GB5200B5K
- Format: UDIMM
- Capacity: 2×16 GB
- Frequency: 6000 MHz (via AMD Expo/Intel XMP)
- Timings: 36-42-42-90
- Voltage: 1.35 V (1.25 V via AMD Expo/Intel XMP)
- JEDEC standard: PC5-48000
- Warranty: 3 years
Price
The recommended price for this specific kit, with the part number PRO32GB6000B5K, is around $90 or slightly under €88. This particular kit is the third in the lineup and is considered the flagship of the DDR5 series. However, even the youngest kit in the series, the PRO32GB5200B5K, with a frequency of 5200 MT/s, manages to avoid most of my initial concerns.
Specifically, the lack of a heat spreader on the module’s body. When I last conducted a full stress test with 64GB of RAM at XMP frequencies, the module’s body heated up to nearly 60°C. Yes, it was a long-term test with much larger memory capacity, but this kind of test is realistic for rendering stations. In such setups, 16GB of RAM won’t be enough, unlike in a gaming PC.
Appearance and specifications

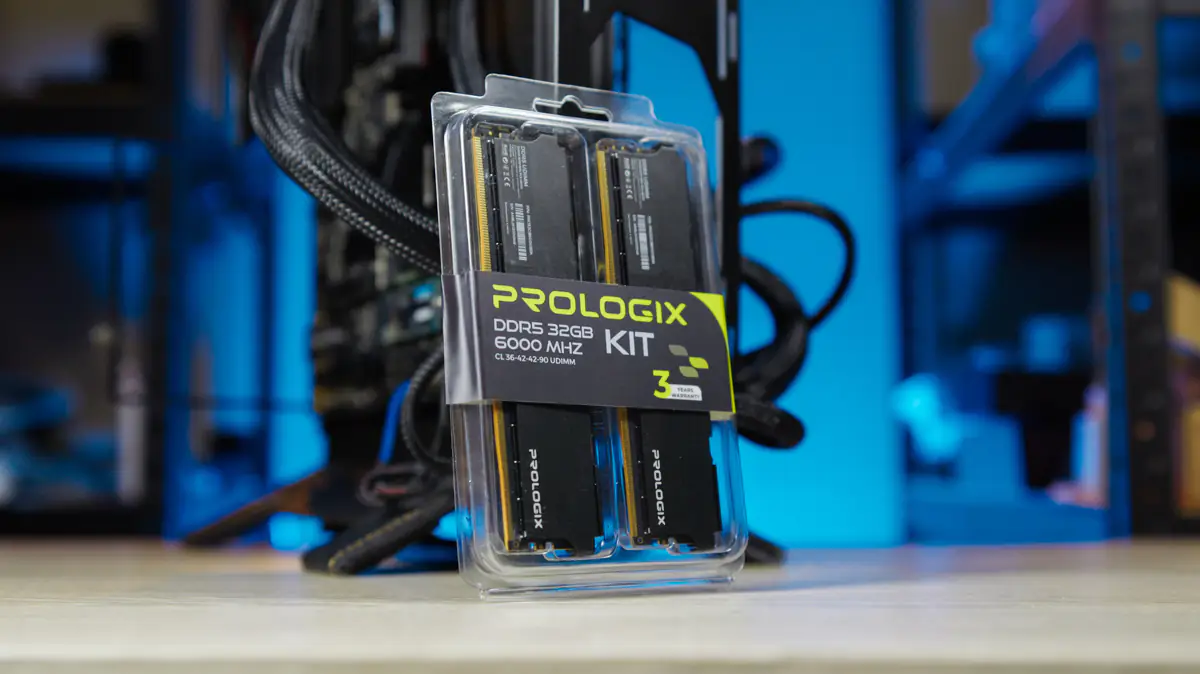

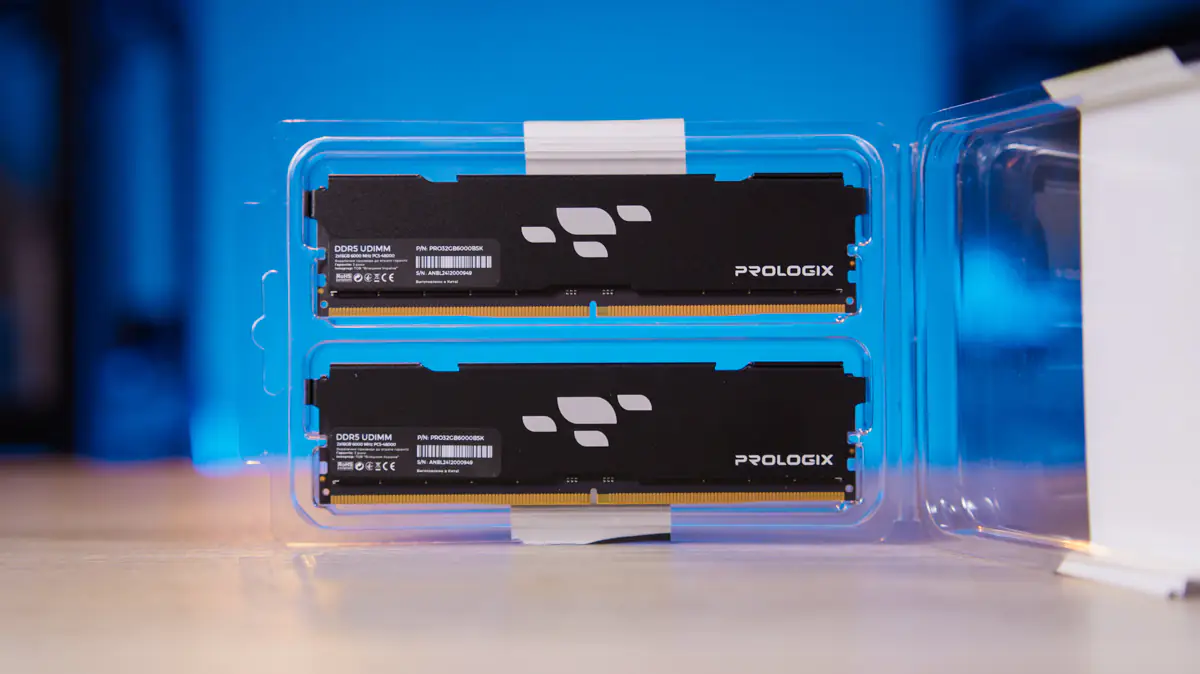

Overall, the design of the Prologix DDR5 6000MHz 32GB PRO32GB6000B5K is pleasant and stylish. The heat spreader is made of metal, painted black, with a nice matte texture. Initially, I thought the matte finish would help with cooling, as the thermal exchange with the surrounding environment would be more efficient. However, it turns out that a glossy surface is actually better in this regard. So, it’s likely that the matte finish is there primarily for better grip.
The height of the modules is 35 mm, and the weight is 38 g. All models have a UDIMM form factor, with two modules in the kit, providing a total capacity of 32 GB. The standard is PC5-48000. Now, the differences begin: for example, the youngest version lacks XMP support, has timings of CL42-42-42-90, and operates at 1.1V. The older model, like mine, runs at 1.35V and has timings of CL36-42-42-90. Additionally, it’s worth noting that the warranty for this RAM is 3 years.
And all the rest of the information will come after the launch. So let’s move on to the test bench.
Test bench

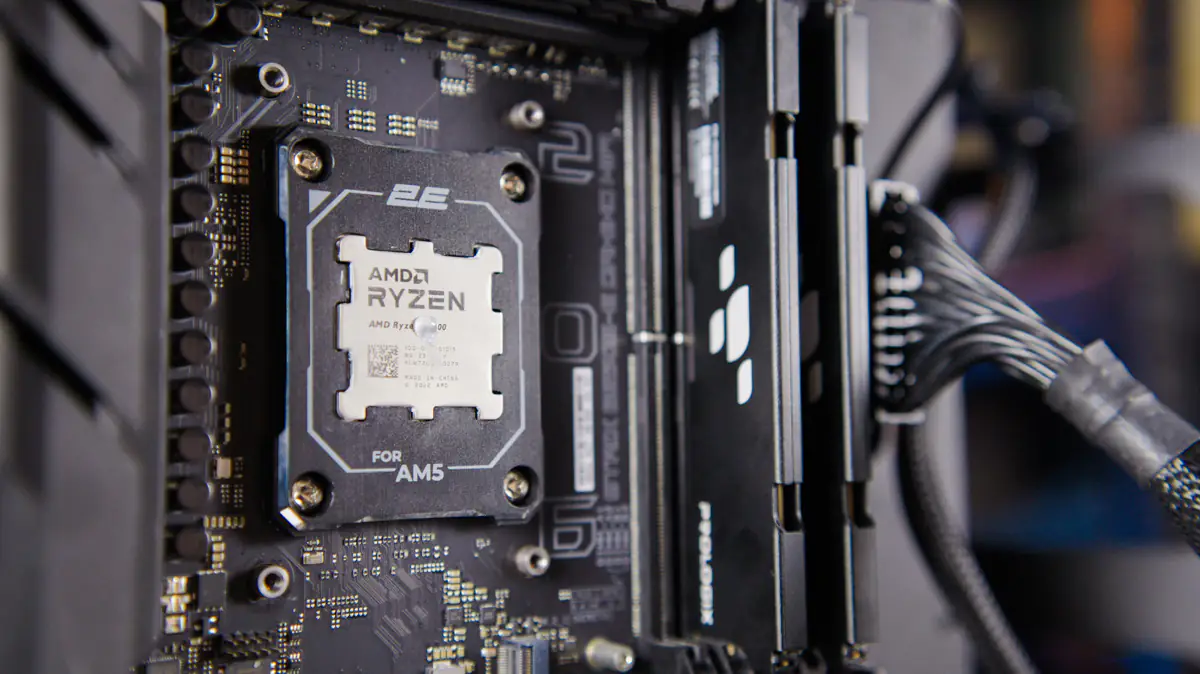

The processor used is the AMD Ryzen 5 7600. The motherboard is the ASUS ROG Strix B650E-E Gaming Wi-Fi. The case is locally manufactured, Gorilla Custom X, and the power supply is the be quiet! Straight Power 12 1200W. The cooling is handled by the stock cooler. The RAM was tested in the second and fourth slots.

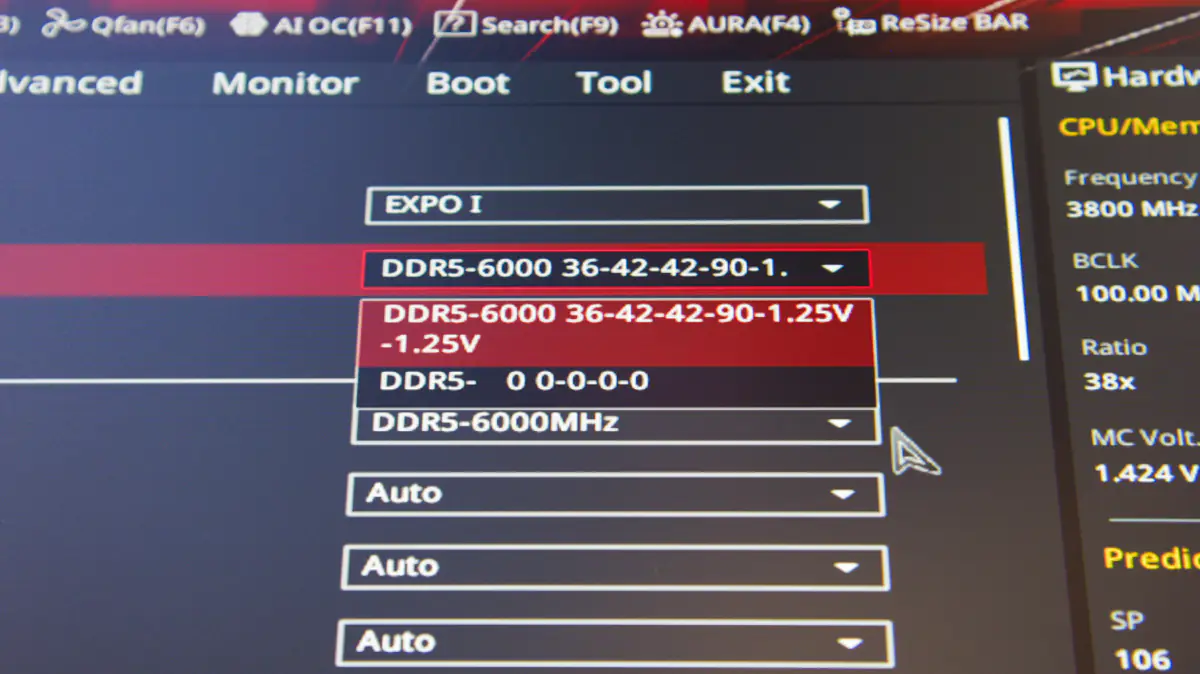

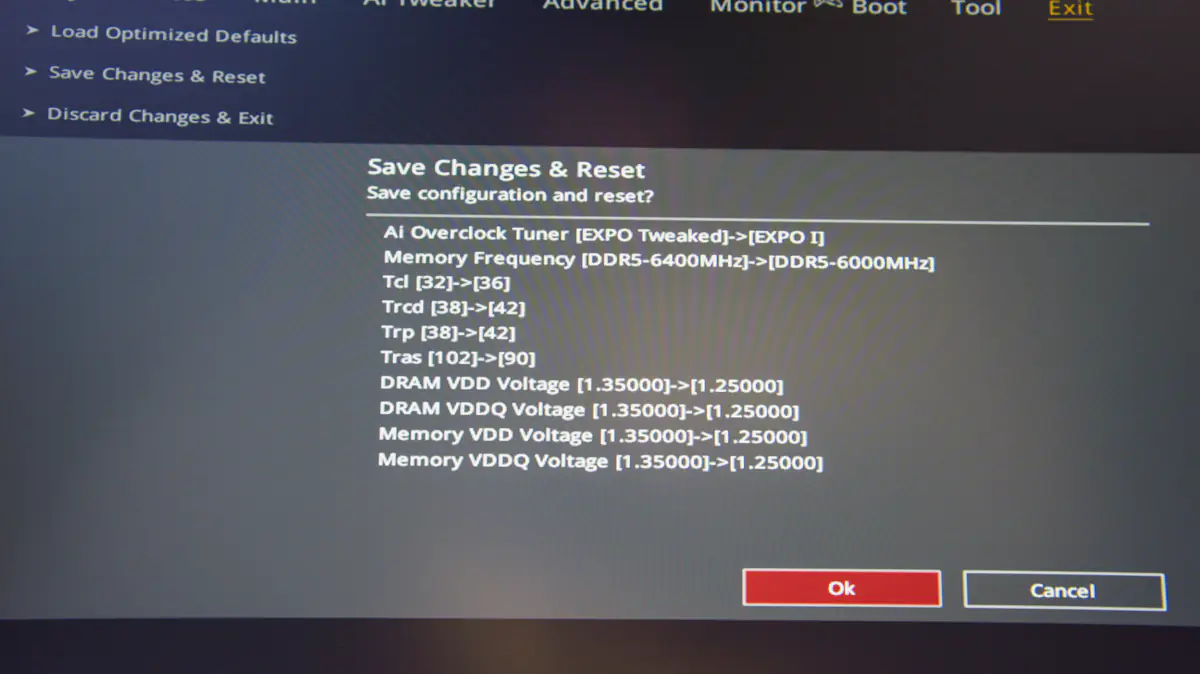

Upon system startup, the speed of the Prologix DDR5 6000MHz 32GB was initially set to 4800 MT/s, which is generally acceptable. Entering the BIOS revealed support for AMD Expo at 6000-36-42-42-90 with 1.25V. I was surprised to see that the second profile, which is usually present as a backup, was empty. It was also unusual to see a voltage of 1.25V for such a relatively high frequency.

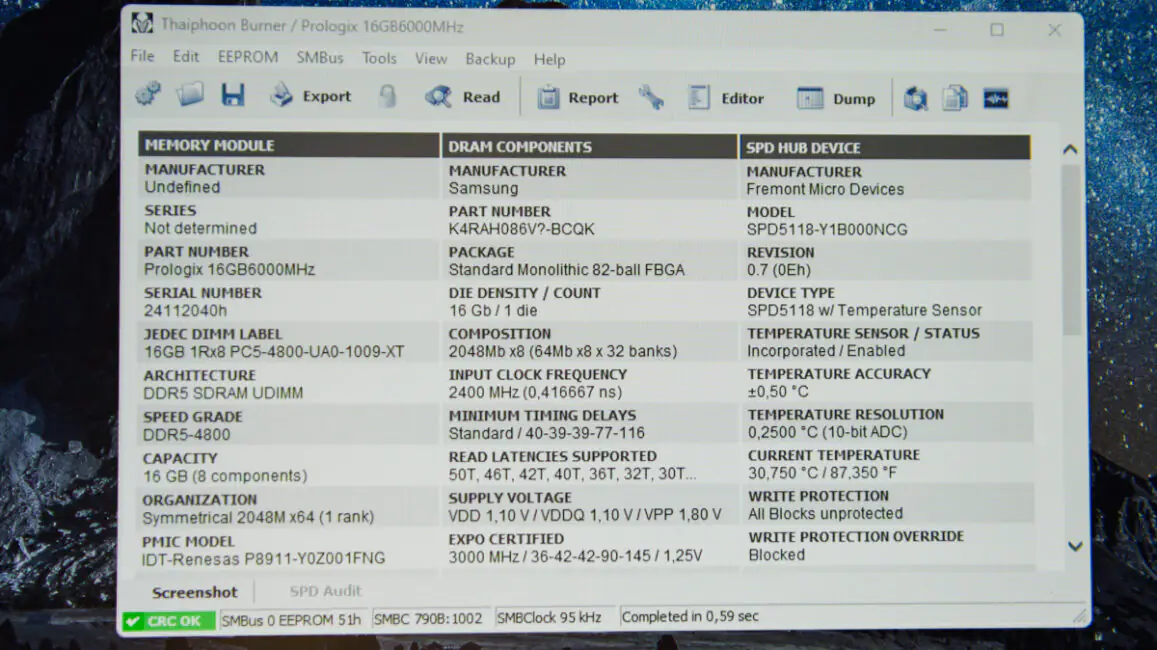

Directly in the system, using Thaiphoon Burner, it shows that the RAM is rank 1, with a chip from Samsung. The Die type is not specified, but considering that when the Prologix DDR5 6000MHz 32GB was released, Samsung only had A-Die chips available, there are not many alternatives. This is generally fine because, according to chip revisions, all options except Hynix A-Die are pretty much the same, and currently, Hynix A-Die is only found in flagship models with higher frequencies.

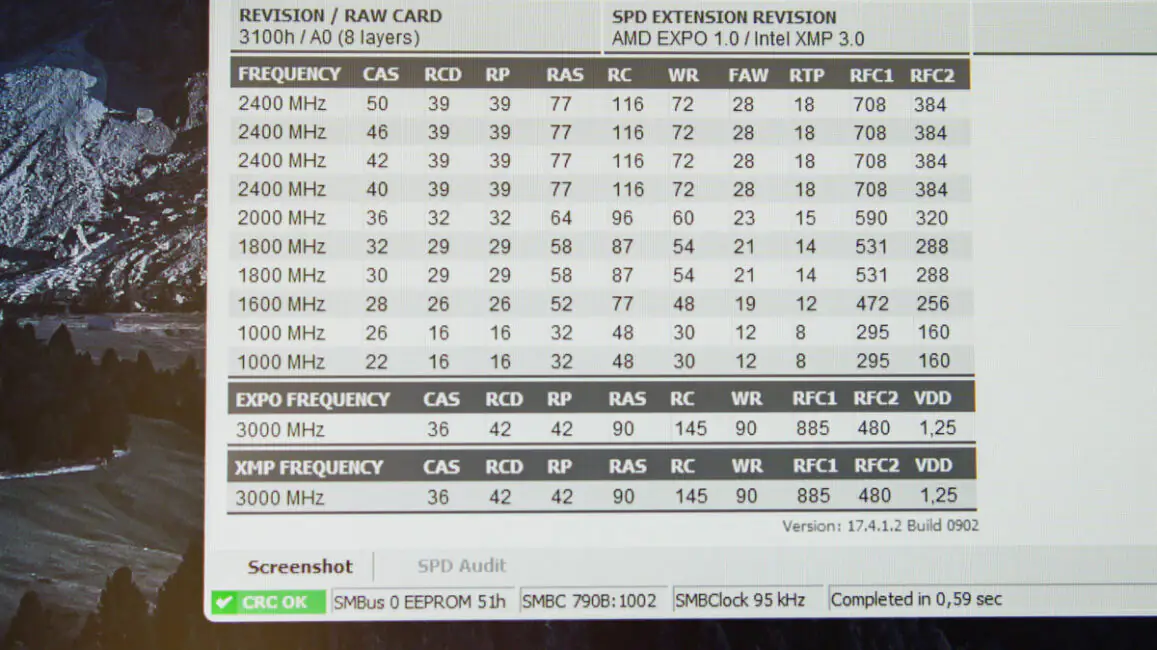

It’s worth noting that even Thaiphoon Burner shows a single profile for both AMD Expo 1.0 and Intel XMP 3.0, with identical specifications. Additionally, we can see that at 4800 MT/s, but without any overclocking profiles applied, the timings are expected to be 40-39-39-77-166. This indicates that the memory is functioning within its rated specifications without needing custom tuning yet.
Prologix DDR5 6000MHz 32GB test results

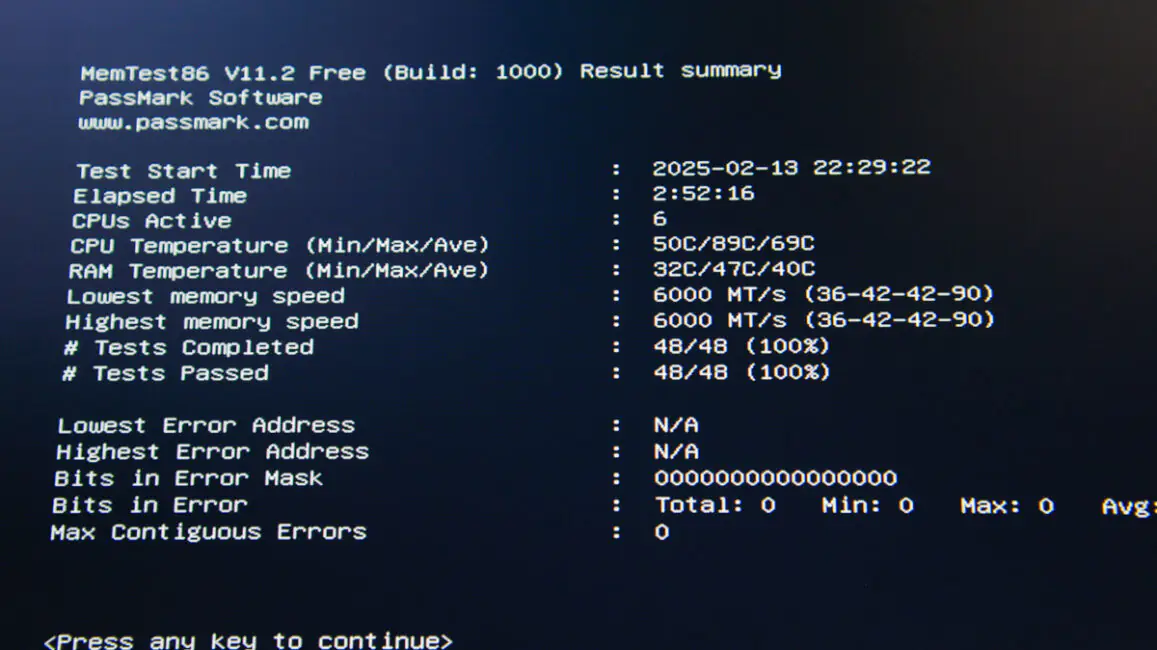

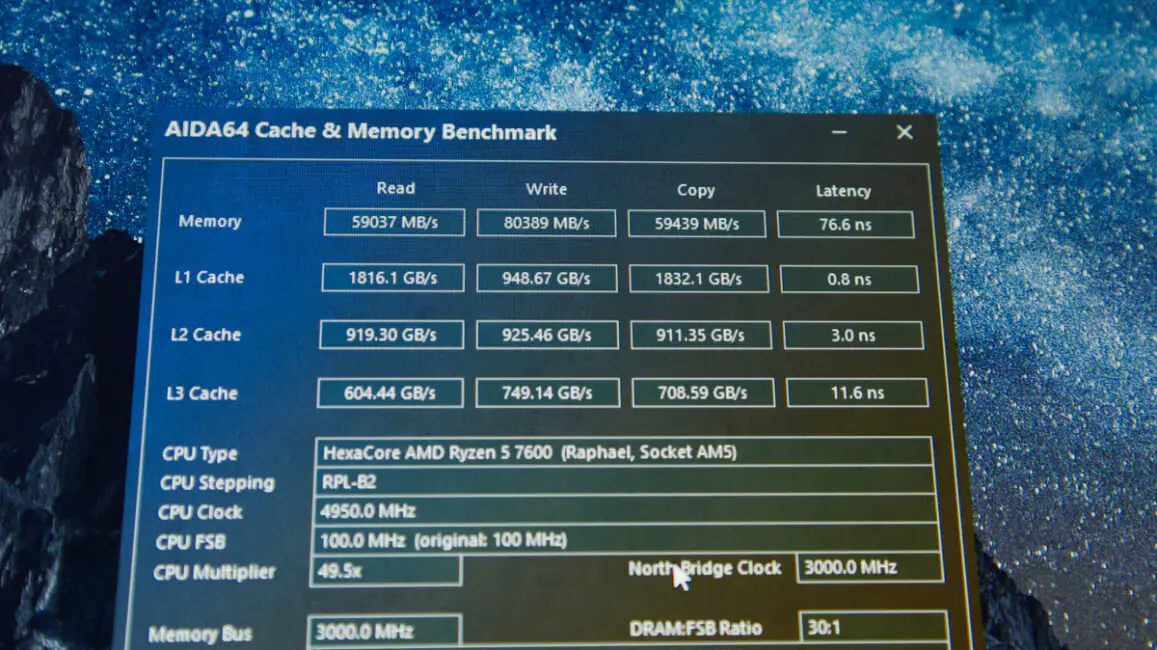

After enabling AMD Expo, the stress test on my relatively budget Prologix DDR5 6000MHz 32GB setup passed the full check in MemTest86. The memory chips reached a maximum temperature of 47°C. As I mentioned before, without a heatsink, the RAM will overheat. Speed tests in AIDA64 showed 59,037 MB/s read, 80,389 MB/s write, 59,439 MB/s copy, and a latency of 76.6 ns.
Is there potential for overclocking? I don’t think so, and I don’t see much reason for it. Why? Let’s move on to the conclusions.
Conclusions
The Prologix DDR5 6000MHz 32GB is a solid entry-level RAM. It works well for a gaming PC without unnecessary RGB, and it looks good with some RGB lighting. Its performance matches the price. The only downside is the underdeveloped second AMD Expo profile, but it’s not a major issue. Overall, I would recommend it.
