Choosing between 3D printing vs injection molding depends on production stage, volume, cost, and part requirements. 3D printing is usually more flexible for prototypes and changing designs, while injection molding becomes more attractive once the design is stable and repeat production begins.
At HingTung, we often see this decision arise when a project moves from validation into manufacturing. The right choice depends less on one fixed production quantity than on the economics and performance requirements of the actual part.
TABLE OF CONTENTS:
3D Printing vs Injection Molding at a Glance
The biggest difference is that 3D printing produces parts directly from a digital file, while injection molding requires a mold before production can begin.
| Factor | 3D Printing | Injection Molding |
| Upfront cost | Low; no conventional mold | Higher due to tooling |
| Cost at scale | Changes less with volume | Unit cost falls as volume increases |
| First-part lead time | Short | Longer because tooling is required |
| Production speed | Slower per part | Fast once the mold is ready |
| Design changes | Easy to implement | May require mold changes |
| Geometry freedom | High | Must follow moldability rules |
| Mechanical consistency | Process dependent | Generally more consistent |
| Surface finish | May require post-processing | Often better as molded |
| Typical fit | Prototype and lower volume | Repeat and higher-volume production |
3D printing favors flexibility. Injection molding favors repeatability and scale.

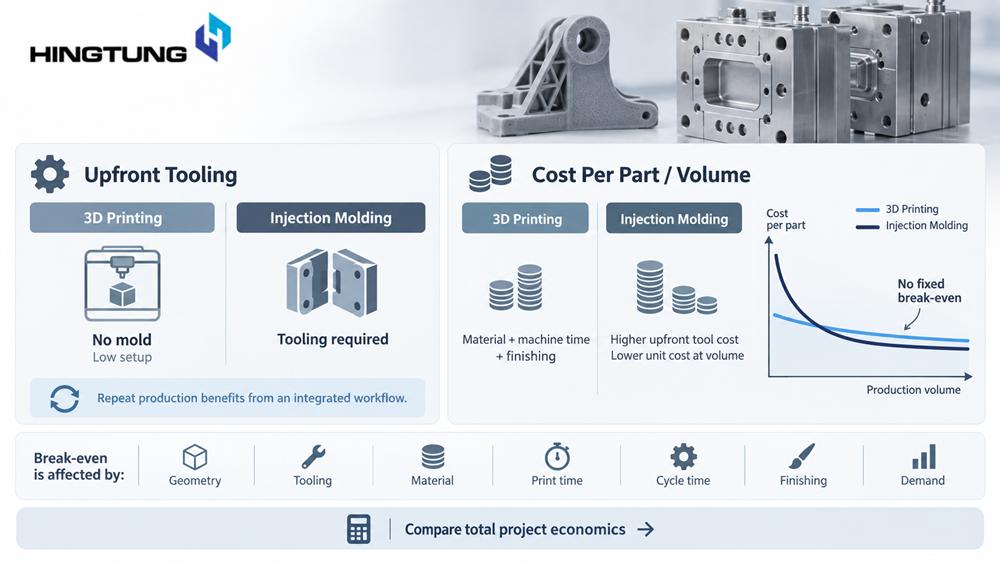

Cost and Production Volume
Cost is usually the deciding factor in an injection molding vs 3D printing comparison, but the two processes distribute costs differently.
Upfront Tooling Cost
3D printing avoids conventional production tooling, so design changes can be made without modifying a mold. Injection molding requires mold design, machining, validation, and setup before production starts.
Once repeat production becomes likely, however, working with an integrated supplier can make the transition easier to manage. HingTung custom injection molding services combine DFM, mold development, molding, and downstream manufacturing within one coordinated workflow.
Cost Per Part and Break-Even Volume
With 3D printing, material, machine time, supports, and finishing continue to contribute to each part. Injection molding has a higher initial tooling cost, but that cost is spread across more parts as production increases.
There is no universal break-even volume. The crossover depends on part geometry, mold complexity, material, print time, molding cycle time, finishing requirements, and expected lifetime demand. For this reason, a 3D printing vs injection molding cost comparison should evaluate total project economics rather than rely on a fixed quantity threshold.

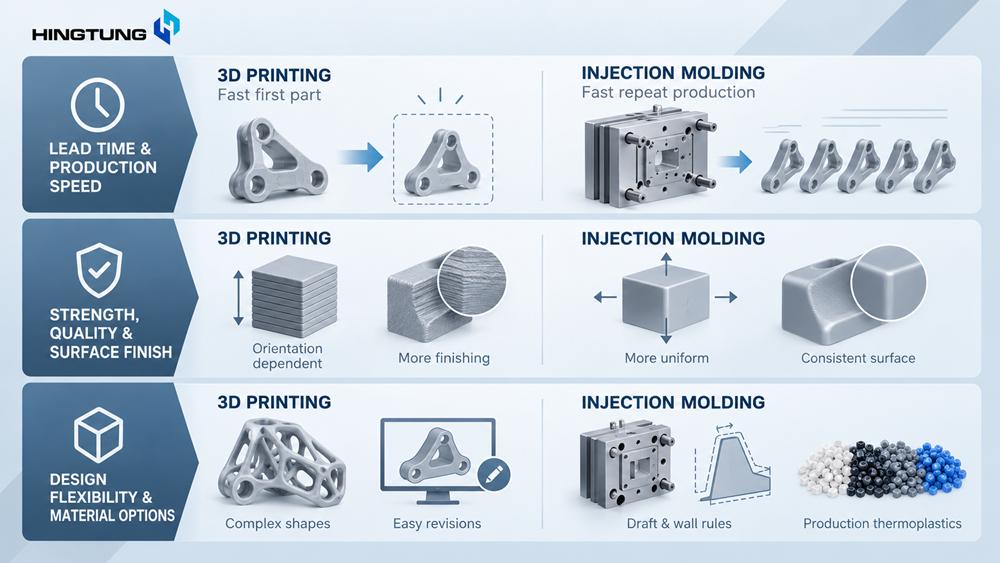

Lead Time and Production Speed
3D printing usually wins on time to first part because there is no mold to manufacture. It is well suited to prototypes, fit checks, and early production when the design is still evolving.
Injection molding takes longer to start, but once the tool is ready, it supports much faster repeat production. This distinction matters because time to first part and production throughput are not the same thing.
Strength, Quality, and Surface Finish
A 3D printing vs injection molding strength comparison depends on material, geometry, process, and loading direction. Printed parts can be affected by build orientation and layer bonding, while molded parts generally offer more uniform properties once the process is stable.
Surface quality also differs. Many printed parts need support removal, sanding, curing, or other finishing. Injection molding can often provide a more consistent production surface directly from the mold.
Design Flexibility and Material Options
3D printing offers more freedom for complex geometry, internal channels, organic shapes, and frequent design revisions. Changes can often be made directly in the CAD model.
Injection molding requires more design discipline. Draft angles, wall thickness, ribs, bosses, undercuts, gates, and ejection all affect moldability. In return, molding supports a broad range of production thermoplastics and stable repeat manufacturing.
A part that is easy to print is not automatically easy or economical to mold.
When 3D Printing Makes More Sense
3D printing is generally the better fit when:
- the product is still in prototype or validation stages;
- production quantities are low;
- the design is likely to change;
- customization is frequent;
- geometry is difficult to mold;
- tooling investment is not yet justified.
Its main advantage is flexibility. Engineers can test and revise the design before committing to production tooling.
When Injection Molding Makes More Sense
Injection molding becomes more attractive when:
- the design has been validated;
- repeat orders are expected;
- production volume is increasing;
- dimensional consistency matters;
- surface quality must remain stable;
- lower unit cost at scale is important.
At this stage, the choice of supplier matters almost as much as the process itself. Tooling quality, DFM support, inspection, and secondary operations all affect long-term production performance. Buyers comparing plastic injection molding companies should therefore look beyond molding capacity alone.
For HingTung, this is where an integrated workflow adds value. DFM, mold making, injection molding, secondary processing, assembly, and inspection can be coordinated within the same manufacturing program rather than handled as separate steps.
Final Thoughts
The choice between 3D printing vs injection molding is mainly a question of development stage and production economics. 3D printing is usually more practical for prototypes, changing designs, and lower volumes. Injection molding becomes stronger once the design is stable and repeat production matters.
For OEM projects moving into that stage, HingTung supports the transition from DFM and tooling through molding, secondary processing, and assembly. The best decision comes from comparing total project cost, performance requirements, and expected demand rather than relying on one fixed volume threshold.
FAQs About 3D Printing and Injection Molding
Will 3D Printing Replace Injection Molding?
3D printing is taking on more production work than it did a few years ago, especially for prototypes, customized parts, and short runs. That does not mean injection molding is being pushed out. Once a design is stable and the same part needs to be produced repeatedly, molding still offers a clear advantage in output, consistency, and cost at scale.
Can 3D Printed Molds Be Used for Injection Molding?
They can, but mainly in limited situations. Printed tooling is sometimes useful for early validation or very short runs when making a conventional metal mold would be difficult to justify. Its limits usually show up in tool life, heat resistance, and pressure resistance, so it is not a direct replacement for production tooling.
Is Injection Molding Always Stronger Than 3D Printing?
“Stronger” depends on what is being compared. A printed part can perform very well when the material, build direction, and geometry are suited to the load. Injection-molded parts, however, tend to give more predictable properties from one part to the next because they do not rely on layer-by-layer bonding in the same way.
