7 Computer Vision Use Cases in Electronics Manufacturing

Root NationRoot Nation

© ROOT-NATION.com - Use of content is permitted with a backlink.

Electronics manufacturing gives computer vision a concrete job: turn visible evidence into a useful quality decision. That might mean finding a damaged component, reading an identifier or checking that an assembly matches the expected configuration. The difficult part is connecting the observation to the right material, board and action.

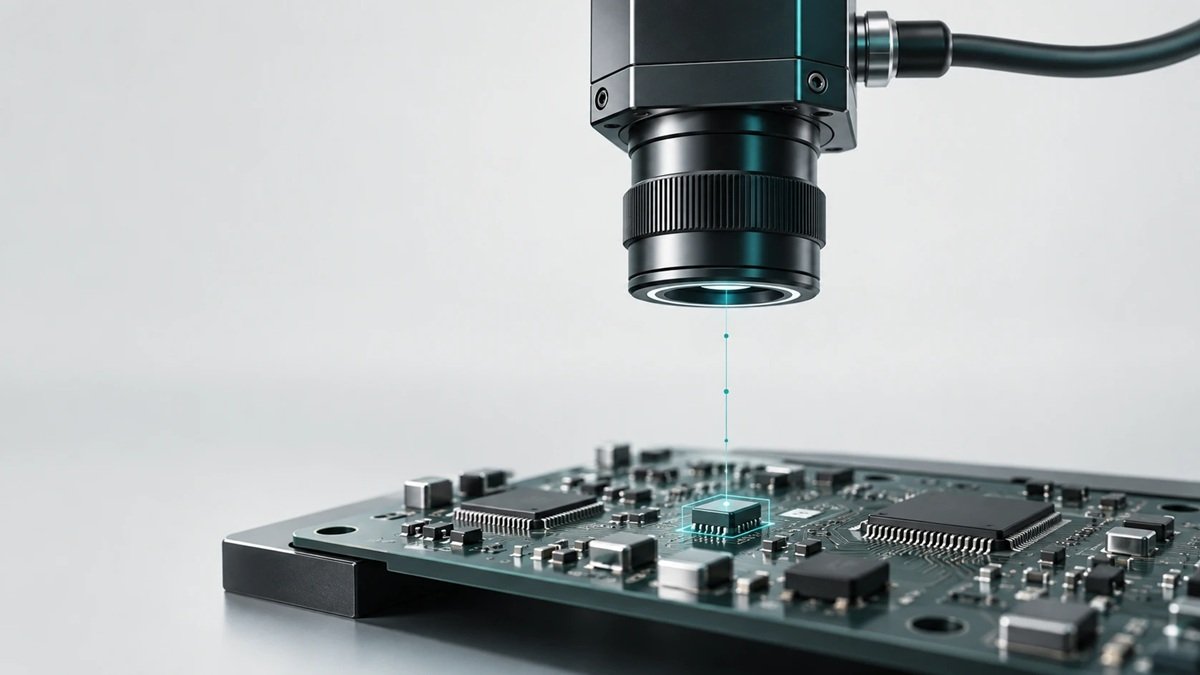

Sponsored contribution by Go Wombat
Sponsored contribution by Go Wombat

A camera and a model are only part of that system. Lighting, image quality, reference data and integration with production software determine whether an inspection result can be trusted and used. A clear review workflow matters whenever the system encounters an unfamiliar component or an ambiguous image.

Here are seven potential applications, together with the operational questions that determine whether each is a sensible starting point. They describe possible uses of computer vision, not seven capabilities claimed for any single product.

1. Screen incoming components for visible anomalies

Incoming inspection can look for inconsistent markings, package damage or other visible differences from expected components. The purpose is to surface exceptions early enough for a quality specialist to investigate.

The starting point is a representative image collection and a clear definition of what should trigger review. Suppliers may use legitimate variations in packaging or markings. A model that treats every variation as a defect can create unnecessary work.

Check before building: can the business connect an image to the supplier, part number and batch? An anomaly should trigger an evidence-based review; a photograph alone does not establish that a component is counterfeit or electrically sound.

2. Verify component presence and orientation

An inspection step can compare an assembly with its expected configuration and flag missing, misplaced or incorrectly oriented parts. This is particularly useful when a visual error can be addressed before later steps make rework more difficult.

The reference configuration must stay aligned with the product revision. A perfectly consistent inspection process still produces misleading results if it compares the current board with yesterday’s specification.

Check before building: who owns the reference data when engineering changes a component or board layout? Test product variants separately, including examples close to the boundary between an acceptable and unacceptable placement.

3. Flag visible assembly defects for review

Computer vision may help identify visible damage, contamination or irregularities at a suitable inspection stage. The imaging arrangement must expose the feature the team wants to evaluate. Some faults are hidden, require other test methods, or cannot be distinguished reliably with the available camera setup.

Start by asking an experienced inspector to explain the evidence used for a decision. If that evidence is not captured in the image, changing the model is unlikely to solve the underlying problem.

Check before building: evaluate missed defects and false alerts separately. Record how long a flagged item takes to review, because a higher alert volume can erase the operational benefit of an otherwise promising model.

4. Read labels and compare them with expected records

Optical character recognition and code-reading systems can help capture component, reel or packaging identifiers. The useful step is the comparison with the expected material or work order, not transcription alone.

Poor contrast, glare, curved surfaces and partial labels can make a reading uncertain. The workflow should preserve that uncertainty instead of silently accepting a plausible-looking identifier.

Check before building: define what happens when a label cannot be read or disagrees with the production record. Route the exception to a person and retain the original image so the decision can be checked later.

5. Connect inspection images to component traceability

An inspection result becomes more useful when it can be traced to a specific component, board or batch. A quality team can then investigate where a suspect material was used and which production records need attention.

This requires reliable identifiers and software integration as well as image analysis. The inspection system needs to handle repeated events, missing records and the retention of relevant evidence.

The published Go Wombat case study for Cybord describes an electronics quality-control platform that combines inspection with component-level traceability. Go Wombat’s contribution includes the software work around that product. The case illustrates why the data and application layers deserve attention alongside the model.

Check before building: can an engineer retrieve the original evidence and its associated production context without combining several spreadsheets manually?

6. Verify the contents of a kit or package

A vision step can compare the visible contents of a kit or package with a known expected set. It may help flag an omitted item, an unexpected component or a visible packaging issue before shipment or the next production stage.

Occlusion is an immediate limitation: if an item cannot be seen, a camera cannot confirm its presence from that view. The process may need a different presentation, another image or a separate check.

Check before building: decide whether the operational process can present items consistently enough for inspection. Measure the time added to the workflow as well as the number of discrepancies found.

7. Find recurring patterns across inspection results

Once inspection events are connected to production context, teams can compare patterns across material batches, product revisions or workstations. Repeated exceptions may help prioritise an investigation.

These patterns are signals, not proof of cause. A cluster of alerts could reflect a lighting change, a new supplier or a change in the inspection model. Keep the relevant versions and timestamps so an engineer can distinguish between those explanations.

Check before building: agree on the level of evidence needed to trigger an investigation. A dashboard should make the underlying examples available, rather than presenting a chart that nobody can audit.

Choose a first use case with an observable result

Start with one inspection point where the team already understands the decision and can collect representative examples. Record the existing process: what is checked, how exceptions are handled and how much review effort is required.

Then test the proposed system on a separate set of examples collected under realistic conditions. Include acceptable variation and difficult cases. If the data is too limited to support a confident decision, record the gap instead of extrapolating a percentage from a small demonstration.

Run the first evaluation alongside the current process. Compare the system’s flags with expert judgement before deciding whether it should influence an operational action. Give operators a clear way to disagree and retain their corrections for later analysis.

Make the result usable on the factory floor

The best starting question is not which model to buy. It is which visible decision creates enough cost or uncertainty to justify a better inspection workflow.

Once that decision is clear, the engineering scope follows: image acquisition, evaluation, integration, operator review and ongoing support. Teams considering a custom implementation can explore computer vision engineering by Go Wombat and use a specific inspection point as the basis for a feasibility discussion.
