It is particularly interesting to look at a PSU from one of the world’s largest power supply manufacturers. However, I’ve always had a very strong association between Seasonic and its flagship models, the kind designed for high-end, almost unicorn-level builds. The Seasonic CORE BC-850 ATX 3.1 is a very different kind of product.
Read also: PC power supply unit (PSU) reviews
TABLE OF CONTENTS:
Price and Product Positioning
The price is around $95/€83. In other words, this is well beyond the budget segment, but still far from flagship territory. Seasonic simply has models that cost several hundred US dollars.
The price point is immediately reflected in the fact that the Seasonic CORE BC-850 ATX 3.1 is a non-modular power supply. For comparison, the GX-850 from the same Core series is fully modular. In fact, even the BC-850’s packaging looks rather modest and much more like that of an OEM model intended for large-scale PC assembly.
Standards
That said, the BC-850 should not be considered a budget or entry-level power supply. With an 850 W rated output, it carries an 80 PLUS Bronze certification, meaning its conversion efficiency ranges from 82% to 85%. The higher the efficiency, the less energy is dissipated inside the PSU as heat, which generally contributes to better performance and a longer service life.
Of course, you still need the usual protection features – against overcurrent and undercurrent, overvoltage and undervoltage, voltage spikes, and so on. Undervoltage matters as well: when the voltage drops, the current automatically increases to maintain the same power output. Conductors are not always designed to handle that kind of load.
The good news is that this PSU is built to handle quite a lot. The Seasonic CORE BC-850 ATX 3.1 fully complies with the ATX 3.1 and PCIe 5.1 standards. In particular, ATX 3.1 is designed to accommodate short-duration power excursions of up to 200%, while the 12V-2×6 connector can handle spikes of up to 300% for microsecond-scale periods. Unfortunately, such transient loads are not uncommon with flagship graphics cards, including models in the NVIDIA GeForce RTX 5080 class.
One important clarification is worth making here. The Seasonic CORE BC series consists of three models rated at 650, 750, and 850 W. The entry-level model also supports ATX 3.1 and PCIe 5.1, but it does not include a 12V-2×6 connector among its available outputs. In other words, its PCIe 5.1 support is not fully implemented, even though the PSU is still advertised as providing the full range of protections.
Fortunately, we are talking about 650 W of total power here, while graphics cards that actually benefit from PCIe 5.1 support typically call for at least an 850 W PSU. In other words, that is exactly the power rating of the model under review.
Cooling of the Seasonic CORE BC-850 ATX 3.1

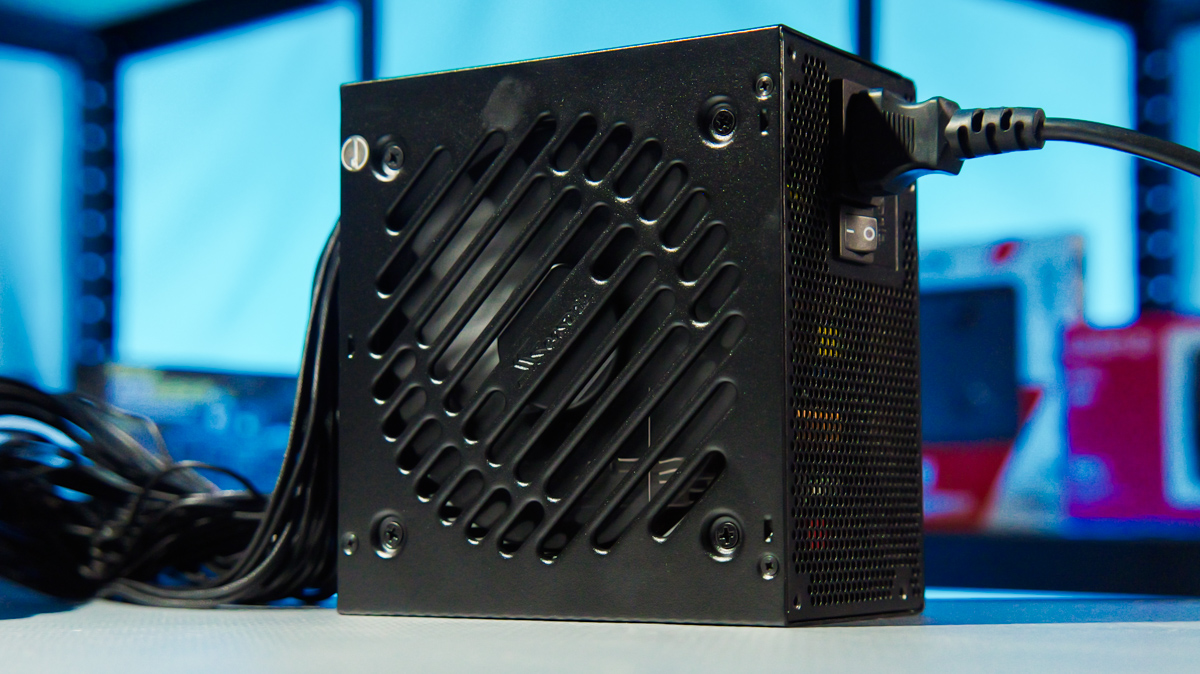

Cooling in the CORE BC-850 ATX 3.1 is handled by a 120 mm fan with a fluid dynamic bearing. There is no fully fanless mode here – the fan runs continuously, although it is rated for 40,000 hours of continuous operation at 40 °C.
40 °C is also the maximum operating temperature specified for the power supply itself. Seasonic also highlights its S2FC, or Smart and Silent Fan Control, fan curve. At loads of up to 50%, the fan runs at 33% speed.
Compatibility
With a length of just 140 mm, the Seasonic CORE BC-850 ATX 3.1 fits comfortably into 99% of standard Mid-Tower cases and larger. The permanently attached cables do require a bit more effort during cable management to keep them tucked away behind the motherboard tray, but their lengths are quite adequate.
- 24-pin motherboard cable: 550 mm
- 4+4-pin CPU cable: 550 + 50 mm, dual connector
- 6+2-pin VGA cable: 550 mm
- 6+2-pin VGA cable: 500 + 50 mm, dual connector

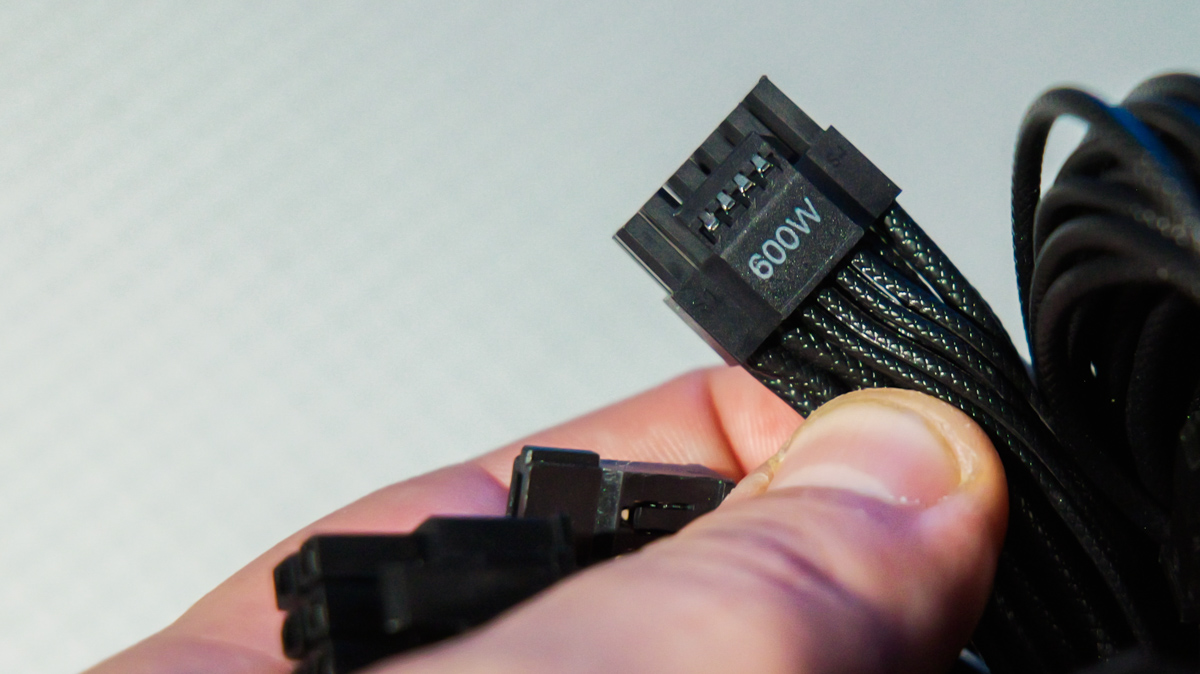

- 12V-2×6 VGA cable: 600 mm
- SATA + SATA + Molex: 500 + 50 + 50 mm
My general recommendation for the Seasonic CORE BC-850 ATX 3.1 would be to use it in a mid-range to upper-mid-range PC. Something along the lines of an NVIDIA GeForce RTX 5070 Ti paired with an AMD Ryzen 7 9850X3D, plus a generous amount of RGB lighting all around. In such a system, you can expect a long service life under normal workloads – the PSU comes with a 5-year warranty – and there is no need to worry about system stability during gaming or demanding work.
Conclusion
This power supply makes a good case for its own compromises by focusing on what users need most. Do you prioritize modular cables, or power and reliability? The answer is obvious: power and reliability. And the Seasonic CORE BC-850 ATX 3.1 delivers both at a reasonable price, while also offering quiet operation and a sufficient selection of cables overall. Recommended!
