How Transparent OLED Displays Are Redefining Modern Visual Tech

For decades, sci-fi movies conditioned us to believe that floating, see-through interfaces were the ultimate destination for digital computing. From interactive glass workstations in blockbuster films to spaceship flight displays, the idea of overlaying vibrant digital data onto the physical world has captivated tech enthusiasts.

Early commercial attempts at transparent displays – predominantly modified, see-through LCD panels – struggled to deliver on that promise. They were often washed out, demanded bulky auxiliary lighting, and suffered from poor contrast.

Today, transparent organic light-emitting diode (TOLED) panels have rewritten the rules of display engineering. By stripping away traditional backlights and re-engineering the microscopic sub-pixel architecture, modern see-through screens allow users to view bright graphics and the physical space behind the panel simultaneously.

Why Transparent LCDs Failed to Impress

To understand why transparent OLEDs represent such a leap forward, it helps to examine the limitations of legacy transmissive screens.

Liquid crystals do not emit native photons. In a typical liquid crystal display (LCD), the molecules function strictly as an electro-optical light valve, modulating light from an external source. Building a transparent LCD required removing the opaque backlight unit, forcing the screen to rely entirely on ambient room lighting or edge-mounted light boxes.

This reliance introduced severe physical bottlenecks:

• Polarizer Attenuation: Stacking liquid crystal fluid between dual cross-polarizing filters absorbs substantial incident light, capping overall ambient transparency at a dim 10% to 15%.
• Washed-Out Contrast: In the absence of a controlled backlight, black pixels appear as a translucent grey haze against brightly lit rooms.
• Bulky Housing: Because the display requires high-intensity perimeter lighting or controlled light boxes to make graphics readable, it cannot operate as a standalone, minimalist pane of glass.

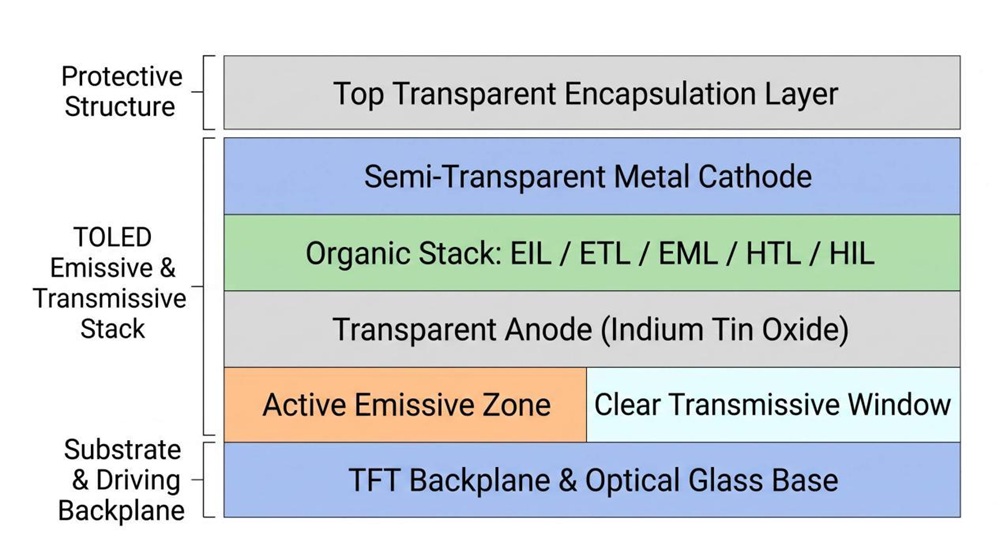

The Organic Semiconductor Stack: How TOLED Works

Unlike transmissive panels, OLED pixels are self-luminous. When an electric potential is applied across the active sub-pixel, positively charged holes from the anode and electrons from the cathode travel through dedicated transport layers (HTL and ETL) into the Emissive Layer (EML). Their recombination produces electroluminescence, generating native red, green, or blue light directly at the pixel level.

To turn this self-emitting mechanism into a see-through screen, engineers redesigned the entire OLED display layer structure from the ground up:

• Transparent Substrate & Encapsulation: Precision glass or optical-grade polymers replace traditional opaque bases. The organic materials are hermetically sealed using thin-film encapsulation (TFE) or specialized transparent barrier glass.
• Transparent Conducting Electrodes: Traditional reflective metal backplates are replaced with transparent conductive oxides like Indium Tin Oxide (ITO) and ultra-thin, semi-transparent alloy cathode matrices.
• Emissive Pixel Areas: Microscopic dedicated regions where the TFT driving circuits, electrodes, and organic stack generate vibrant digital imagery.
• Transmissive Pixel Windows: Engineered clear optical openings within the pixel matrix that allow ambient light from behind the screen to pass through unobstructed.

By balancing the ratio between active emitting areas and transmissive open windows, commercial TOLED panels achieve high ambient light transmission while maintaining rich color saturation.

Engineering Trade-Offs: The Science of “See-Through Black”

While transparent OLEDs deliver striking visual effects, integrating them into commercial hardware requires understanding their real-world engineering constraints:

• The Illusion of Black: TOLEDs cannot produce an opaque, pitch-black state. When a pixel is switched off to display black, it emits zero light, making that area completely see-through. Black is perceived through optical contrast against bright adjacent pixels and a darker physical background.
• Ambient Light Dependency: High ambient glare or cluttered, bright backgrounds can wash out fine UI details and small text. Optimal performance requires controlled backdrops and deliberate lighting design.
• The Aperture Trade-Off: Expanding the clear transmissive area increases overall transparency but leaves less physical real estate for TFT circuits and emitting material, requiring careful balancing of peak luminance and pixel density.

For a detailed analysis of panel metrics, integration rules, and display limitations, read this technical breakdown of what is a transparent OLED and how it functions in commercial deployments.

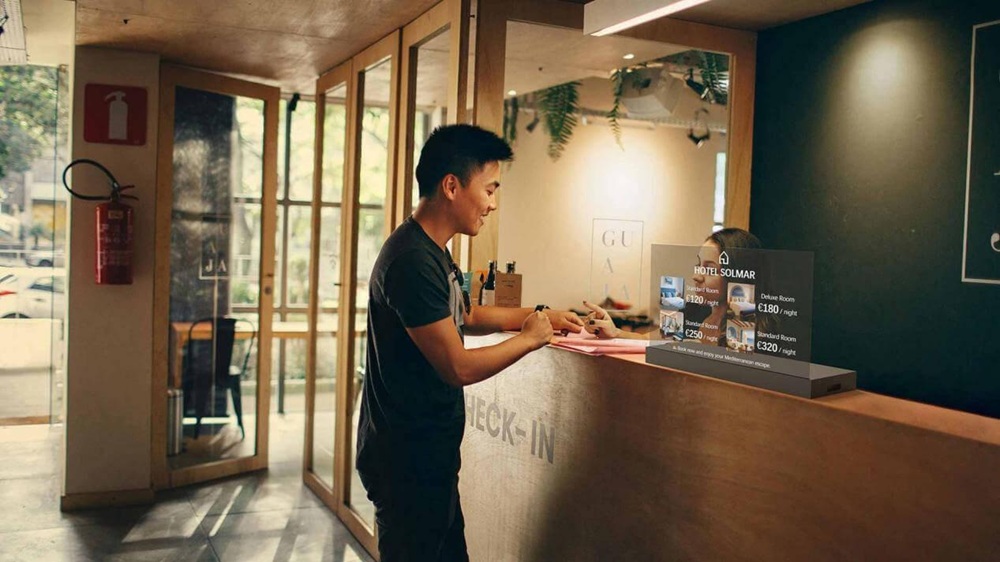

Real-World Applications: From Retail to Public Transit

Because TOLED panels blend digital motion graphics with physical objects, they are rapidly moving into specialized enterprise and consumer-facing environments:

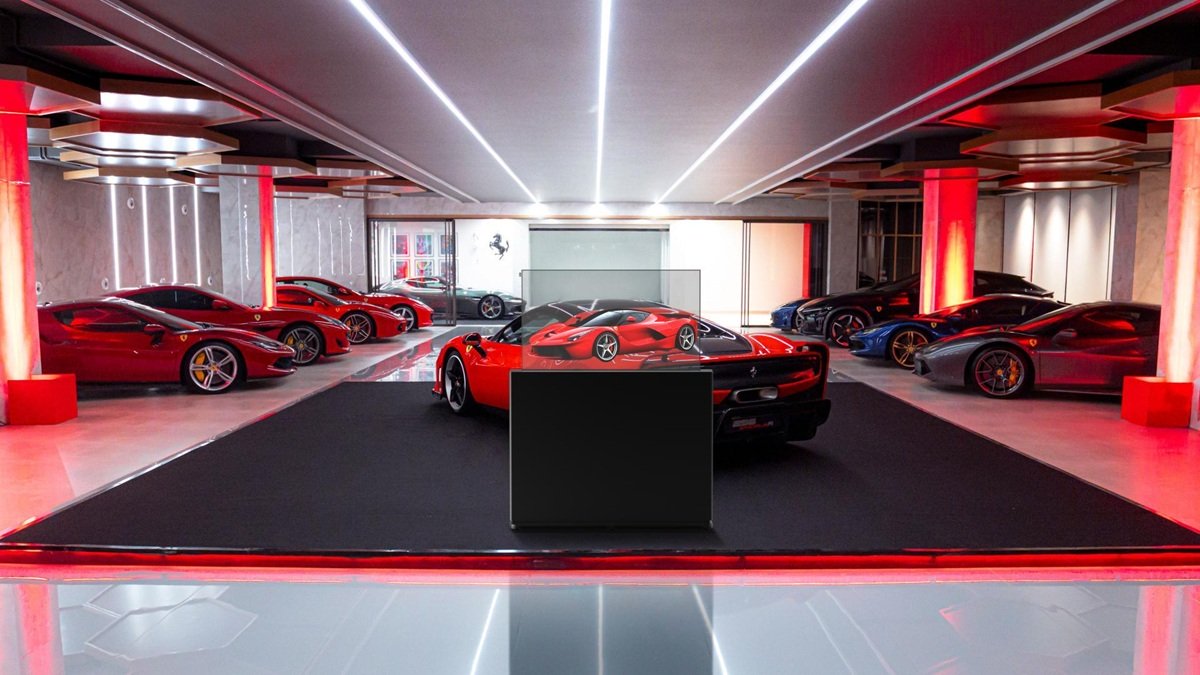

• Interactive Retail Showcases: Luxury boutiques and electronics flagship stores place TOLED panels in front of physical merchandise, overlaying animated pricing, specs, and particle effects without concealing the product.
• Museum & Gallery Vitrines: Transparent screens present historical context, dynamic translations, and cutaway schematics directly over physical artifacts inside protective display cases.
• Smart Public Transit Windows: Train and subway operators install TOLEDs into passenger windows to serve live route maps, speed readouts, and station notifications while preserving outside visibility.
• Commercial Partitions & HUDs: High-tech corporate offices and automotive concepts utilize transparent screens for touch-enabled meeting partitions and heads-up telemetry.

As manufacturing processes mature and transparent conductive materials advance, transparent OLED technology continues to bridge the divide between physical environments and digital interfaces.
