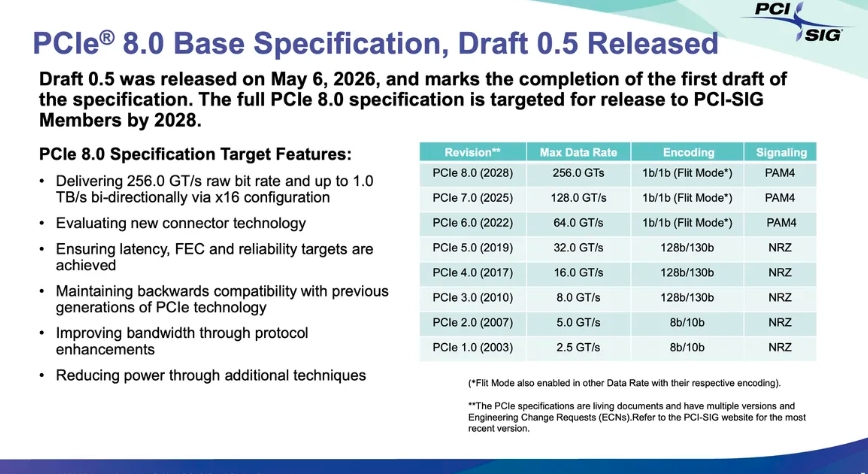

The PCI-SIG organization, which is responsible for promoting and improving the PCIe interface and related technologies, has officially released version 0.5 of the PCIe 8.0 specification. This event is considered a key milestone in the development of the standard.

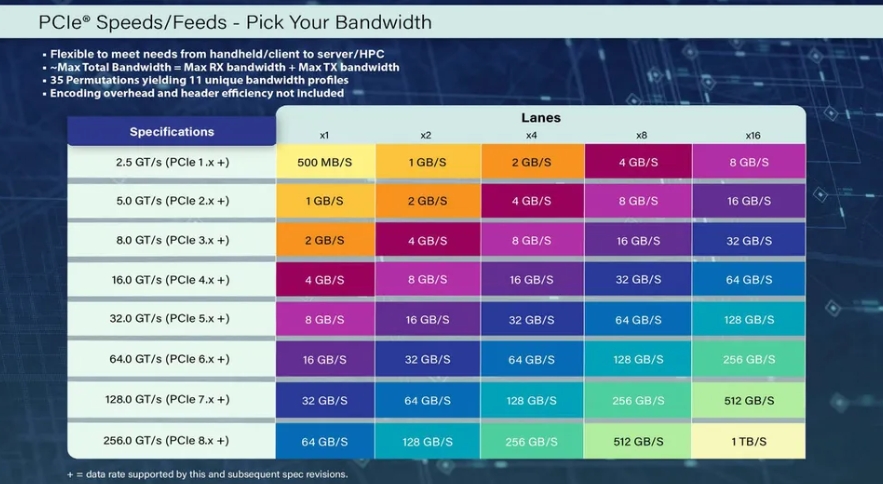

The initial version of the document establishes the basic architectural requirements, allowing consortium members to begin prototyping and making final proposals for the structure. The current version confirms plans to achieve a data transfer rate of 256 GT/s. This will provide up to 1 TB/s bi-directional throughput for 16-lane configurations.
The release of version 0.5 marks the first comprehensive draft of the standard, which sets out strategic goals and mechanisms of operation. The document describes the fundamental principles of the architecture, including electrical parameters, operation logic, interoperability standards, and software. At this stage, the PCI-SIG confirms the use of 256 GT/s, PAM4 signaling, along with FEC error correction and Fit Mode encoding. It also includes protocol optimizations to expand bandwidth, maintain backward compatibility, and develop new connector technologies that are currently undergoing testing. As this is not the final version of the specification, certain electrical characteristics and protocol configuration methods may still be adjusted.
This release is extremely important for the industry because now giants such as NVIDIA, Intel, and AMD, as well as IP block and PHY developers, can begin designing architectures and early prototyping. Although developers have to take into account the possibility of future changes in the documentation, the current state of the specification is already mature enough for active practical work.
One of the most interesting aspects of the announcement is the ongoing evaluation of new connector technologies. This indicates that the capabilities of the current copper infrastructure at the physical layer are almost exhausted. Problems with signal loss budget, crosstalk, and wave reflection were already evident in the PCIe 5.0 and 6.0 generations. However, these challenges will become critical for PCIe 8.0 with its unprecedented 256GT/s speed for copper conductors. At these frequencies, traditional motherboard connectors and pinouts may not provide adequate signal integrity. This forces you to either spend excessive energy on equalization or put up with increased delays due to the operation of error correction mechanisms (FEC).
For this reason, the PCI-SIG is considering upgrading PCIe slots with more durable materials and tighter tolerances, or further reducing the length of electrical traces in parallel with increasing the number of redrawers in the link. However, we should not expect any drastic changes in the design of the connectors, as the consortium aims to maintain full backward compatibility. Final approval and ratification of the final specification is scheduled for 2028.
