The ASUS ZenWiFi BT10 is a tri-band mesh system with Wi-Fi 7 support, theoretically delivering speeds of up to 18 Gbps across three bands.
Over the past two decades, Wi-Fi networks have become the dominant wireless technology, effectively replacing many competing solutions. Despite certain limitations, nearly all modern mobile devices are equipped with adapters supporting IEEE 802.11 standards. Wi-Fi development has been continuous since its introduction, with a primary focus on improving security and increasing bandwidth capacity.
When it comes to coverage range, the trend has actually reversed. With the transition from 2.4 GHz to 5 GHz and 6 GHz, along with the introduction of more complex modulation schemes, the coverage area has even decreased. This issue can be addressed by increasing transmitter power or improving receiver sensitivity, but both approaches have technical limitations. The most effective solution is deploying additional signal repeaters, which create a unified network and ensure seamless connectivity as users move between access points.
One of the most successful implementations of this approach is ASUS’s AiMesh technology. It is particularly well-suited for private homes and small offices due to its efficiency and ease of setup. Having tested multiple ASUS mesh systems, I’ve developed considerable experience with them, yet each time, I still discover something new and unexpected.
After testing the ASUS ZenWiFi BQ16, I realized that mesh networking is now fully integrated into the Wi-Fi 7 standard. My experience with that router was entirely positive. However, at the time, I noted that the system was quite expensive for the average user. It seems ASUS took that feedback into account, releasing more affordable mesh systems—the ZenWiFi BT10 and BD4—designed to reduce the cost of high-quality mesh networking.
When ASUS’s Ukrainian office offered me the opportunity to test the ZenWiFi BT10, I gladly accepted. I was curious to see if this system could stand out and what compromises the developers made to create a more budget-friendly version of the ZenWiFi BQ16. So, here are my thoughts on the ZenWiFi BT10.
Read also: ASUS ZenWiFi BQ16 Review: Mesh with Wi-Fi 7
Positioning and price
This mesh system represents an attempt to encourage more users to adopt advanced networking solutions. The ASUS ZenWiFi BT10 is aimed at those who want to take full advantage of Wi-Fi 7 without overspending. It offers nearly all the features found in the ZenWiFi BQ16 but with some adjustments.
Designed for next-generation connectivity, this router is well-suited for home entertainment and cloud-based applications. It supports 8K streaming, HDR gaming, content creation, and AI-powered processing, making it a versatile option for demanding network tasks.
The system is equipped with ultra-fast 10 Gigabit Ethernet ports and modern networking technologies that ensure a stable, secure, and high-speed connection. The ZenWiFi BT10 supports an innovative tri-band Wi-Fi 7 architecture, unlocking the full potential of the latest standard while offering flexible wired connectivity options.
Thanks to Wi-Fi 7 support and the next-generation Smart AiMesh technology, the ASUS ZenWiFi BT10 sets a new benchmark for home network performance. It delivers an impressive tri-band speed of up to 18 Gbps and exceptional coverage in the 6 GHz band. A two-module setup provides outstanding coverage of up to 550 m² or six rooms, ensuring a stable, secure, and multifunctional connection for your smart home.
The 4K-QAM technology boosts data transmission speeds by up to 20% compared to Wi-Fi 6/6E, thanks to a higher QAM density that packs signals more efficiently, allowing for faster uploads and downloads within the same time frame. The innovative Multi-Link Operation (MLO) feature leverages Wi-Fi 7 by aggregating or seamlessly switching between the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously, ensuring higher speeds and a more reliable Wi-Fi connection.
Wi-Fi 7 also introduces ultra-wide 320 MHz channels in the 6 GHz band, effectively doubling bandwidth and enabling even faster data transfer. This advancement allows for a greater number of simultaneous connections at maximum speeds, optimizing performance for high-demand applications.
With eight internal antennas and ten high-power interface modules, the ZenWiFi BT10 eliminates Wi-Fi dead zones, ensuring reliable coverage in all directions. Efficient heat dissipation keeps temperatures low and maintains quiet operation, allowing for sustained high-performance usage even under heavy loads.
A powerful processor combined with 2 GB of RAM ensures seamless network performance, optimizing 8K streaming, HDR gaming, and intelligent networking features for the smoothest possible user experience.
The ASUS ZenWiFi BT10 2-Pack Mesh router is already available in electronics stores at a recommended price starting from $871 / €808. The single-unit ZenWiFi BT10 1-Pack version costs $627 / €582.
ASUS ZenWiFi BT10 Specifications
- Processor: 2.0 GHz quad-core processor
- Memory: 2 GB DDR4 RAM and 256 MB Flash memory
- Ports: 1×RJ45 10/100/1000/10000 BaseT for WAN/LAN, 1×RJ45 10/100/1000 BaseT for WAN/LAN, 1×RJ45 10/100/1000/10000 BaseT for LAN, 1×USB 3.0 Gen 1 Type A
- Buttons: Wi-Fi on/off button, reset button, WPS button
- Power: AC input 110~240 V (50~60 Hz). DC output 12 V with a maximum current of 3 A
- Dimensions (L×W×H): 159×72×186 mm
- Weight (one module): 680 г
- Antennas: 8 internal antennas
- Wireless communication standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
- Operating frequency: 2.4 GHz, 5 GHz and 6 GHz
- Transmission rate: maximum performance of BE18000 – 688+5764+11529 Mbps; WiFi 7 (802.11be) (2.4 GHz) – up to 688 Mbps; WiFi 7 (802.11be) (5 GHz) – up to 5764 Mbps; WiFi 7 (802.11be) (6 GHz) – up to 11529 Mbps
- AiMesh: AiMesh, Primary AiMesh router, AiMesh node
- Wireless transmission functions: OFDMA (orthogonal frequency division multiplexing for multiple access source), beamforming function – standard and universal, high data rate 4096-QAM
- Transmission ranges: 20/40/80/160/320 MHz
- Wireless network: MU-MIMO, UTF-8 SSID, WiFi MAC address filter – maximum number of MAC address filters 64, Wireless scheduler, Airtime fairness, Universal beamforming, Explicit beamforming
- Wireless transmission security: WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support, WPA3-Enterprise, Let’s Encrypt, DNS-over-TLS, SSH, Security Scan
- Guest network function: 2.4GHz guest network, 5GHz guest network
- Quality of service: advanced QoS function
- WAN: Internet connection types – automatic IP, static IP, PPPoE (MPPE support), PPTP, L2TP
- Management: UPnP, IGMP v1/v2/v3, DNS proxy, DHCP, NTP client, DDNS, port enable, virtual server, DMZ, system event log
- DHCP: server, DHCP client list, address reservation
- Port Forwarding: virtual server, port activation, UPnP, DMZ
- VPN: VPN server – PPTP server, OpenVPN server, IPSec server; VPN client – PPTP client, L2TP client, OpenVPN client.
That is, this is a slightly stripped-down version of ZenWiFi BQ16, but still a very modern and high-performance Mesh system.
Read also: Review of the ASUS RT-BE92U Router with Wi-Fi 7 Support
What’s in the package
I like that ASUS uses a unique color scheme for the packaging of each product. The ASUS ZenWiFi BT10 arrived in a large blue cardboard box, immediately making it clear that you’re dealing with a Mesh system.
The front of the box features an image with the product name, while the back lists its key features. There’s a lot of useful information for potential buyers, especially considering that ASUS is actively promoting the capabilities of Wi-Fi 7.
The developers also highlighted that the router is capable of supporting ultra-fast 10 Gbps internet connections.

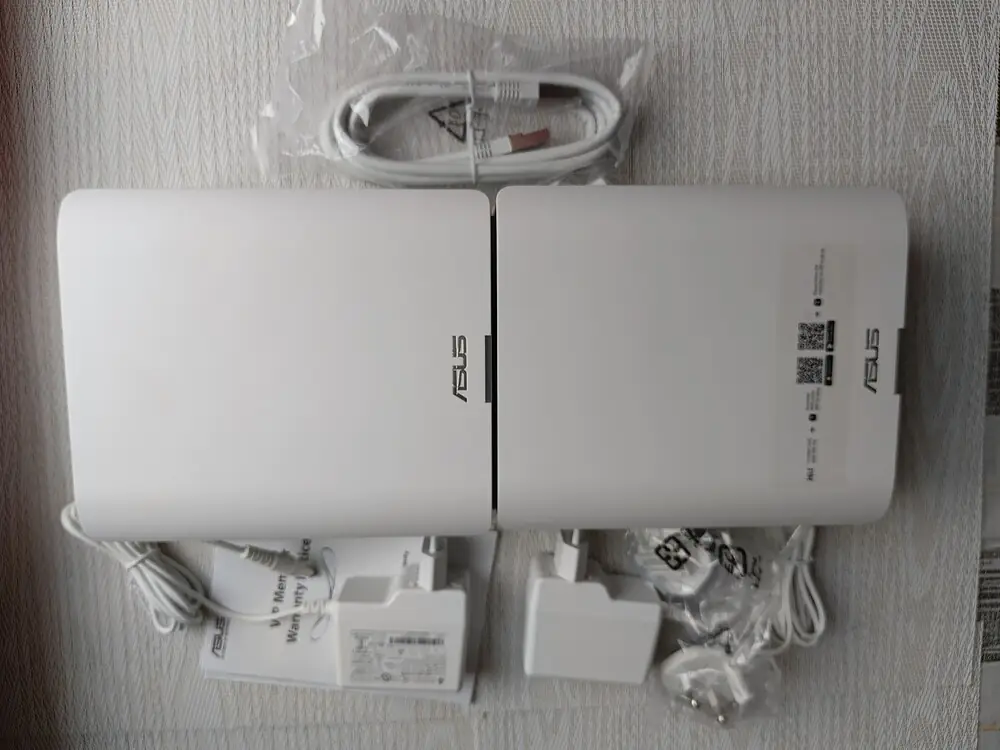

I received a set with two modules, so the box contains: two white ASUS ZenWiFi BQ16 routers, two power adapters with European and standard plugs, an Ethernet cable for the local network, and various accompanying paperwork.
This is quite a standard package for a Mesh router of this class. It is more than enough for the initial setup and subsequent use.
Read also: ASUS ROG Rapture GT-BE19000 Review: Tri-Band Gaming Router
Familiar design

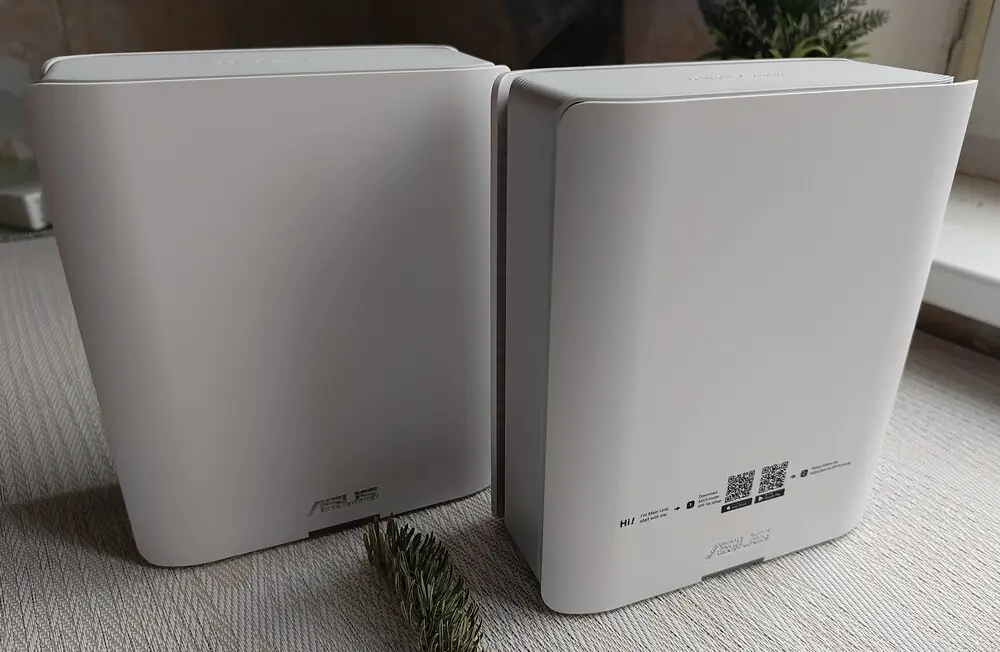

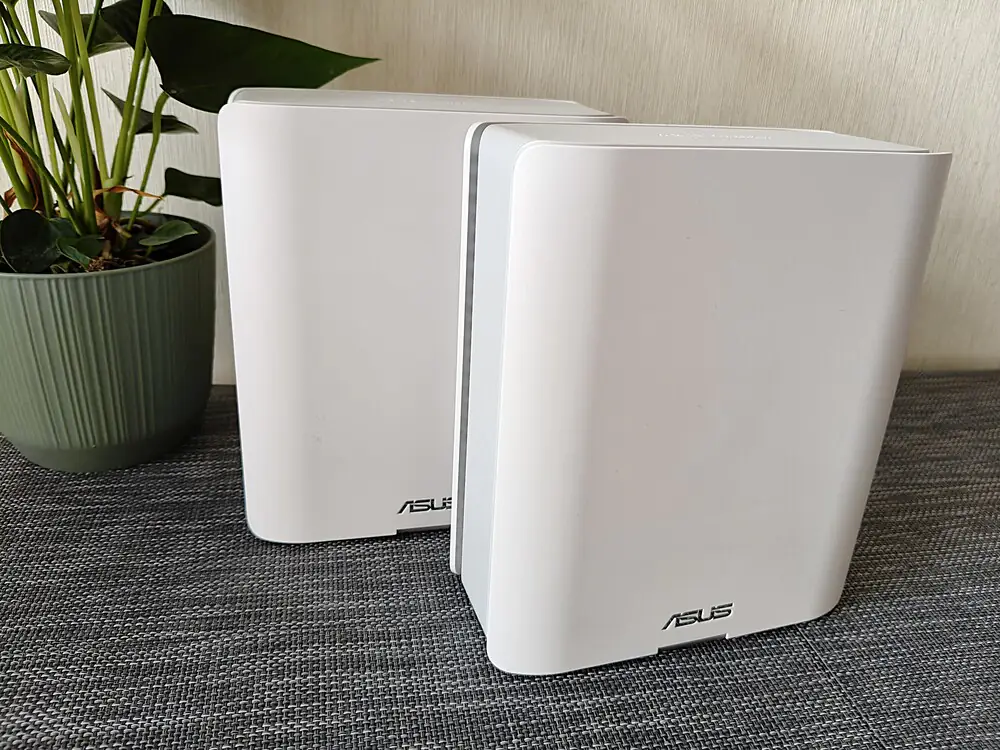

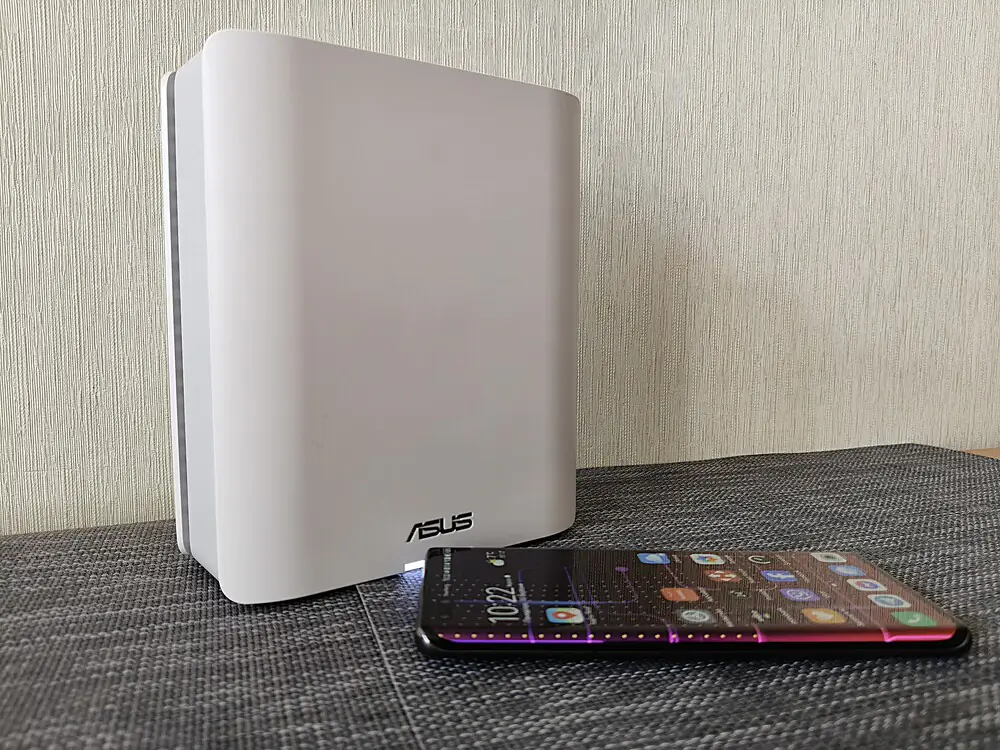

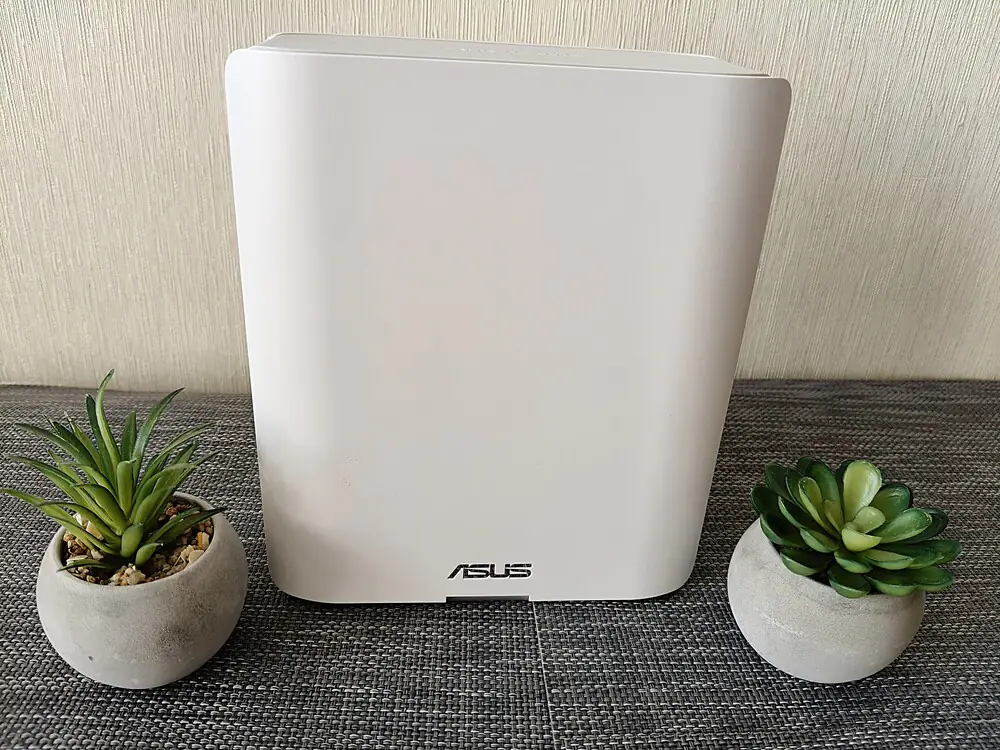

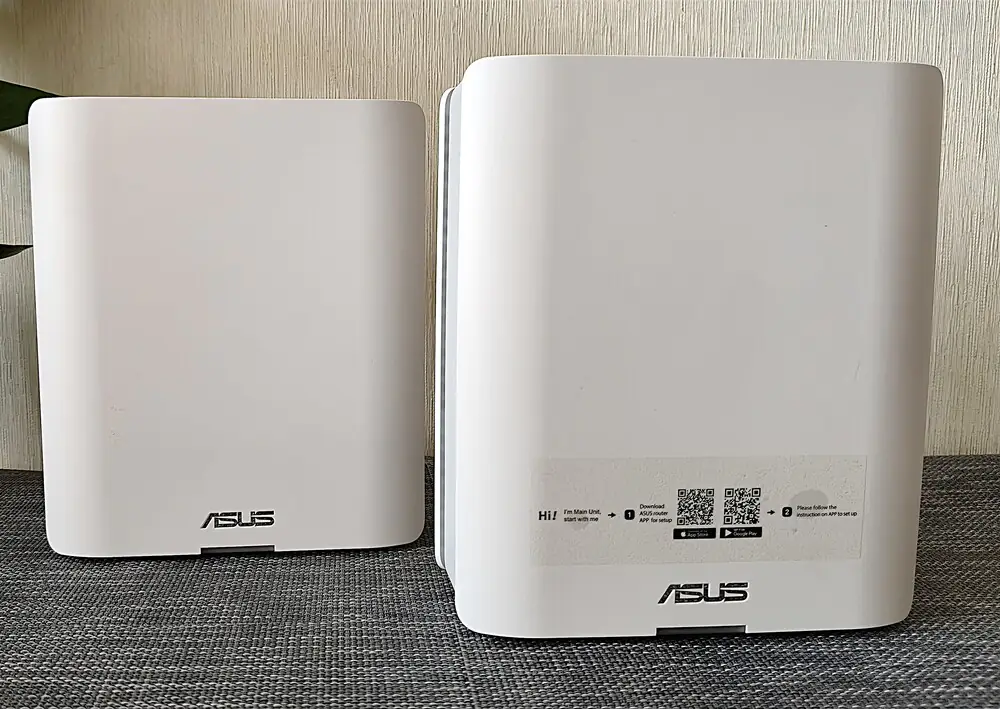

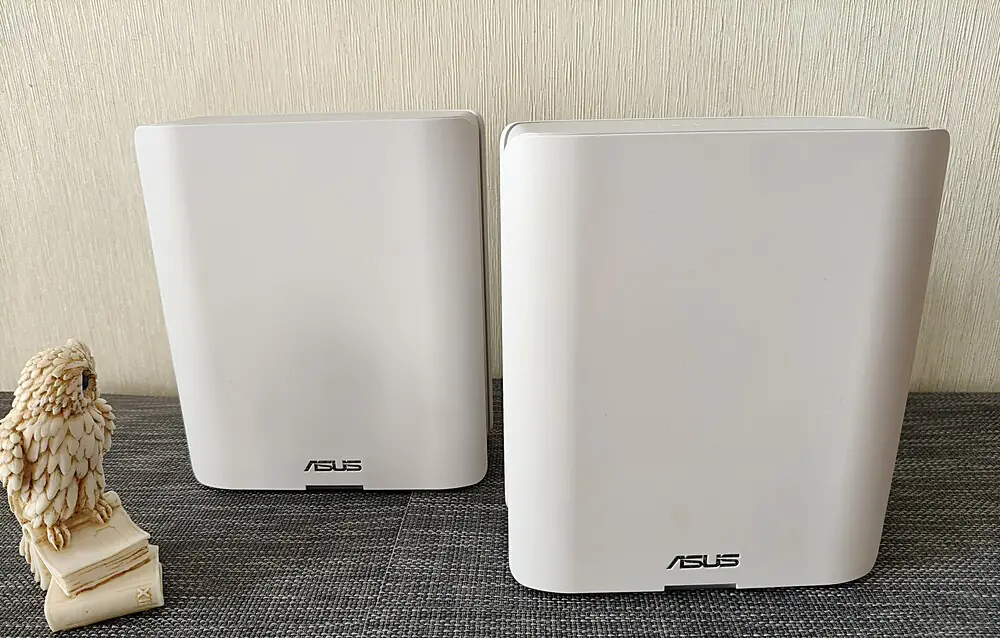

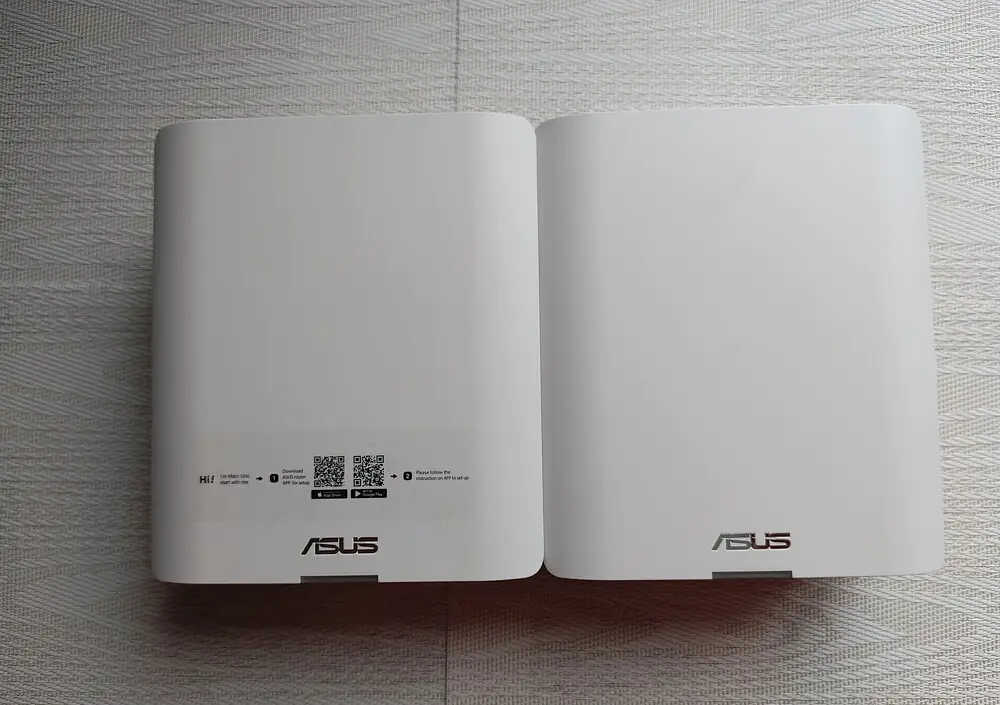

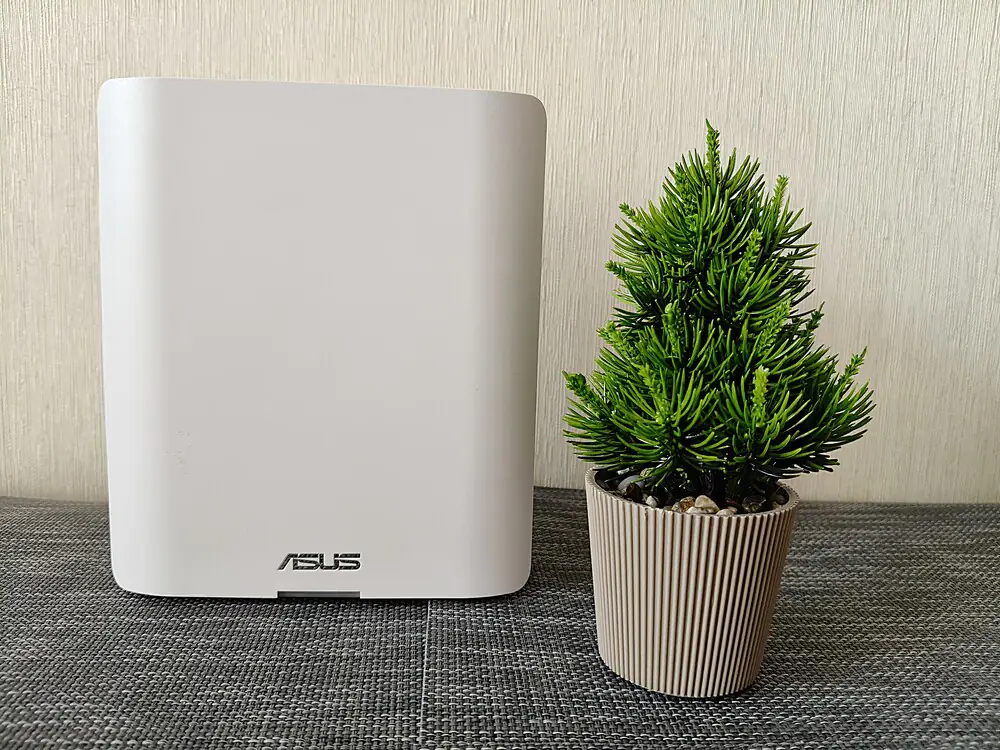

The design of the ASUS ZenWiFi BT10 is identical to that of the ZenWiFi BQ16. In my case, the two modules are white but smaller in size. The new model from ASUS is more compact and lighter compared to the flagship Mesh system. With dimensions of 159×72×186 mm, each module weighs just 680 g.

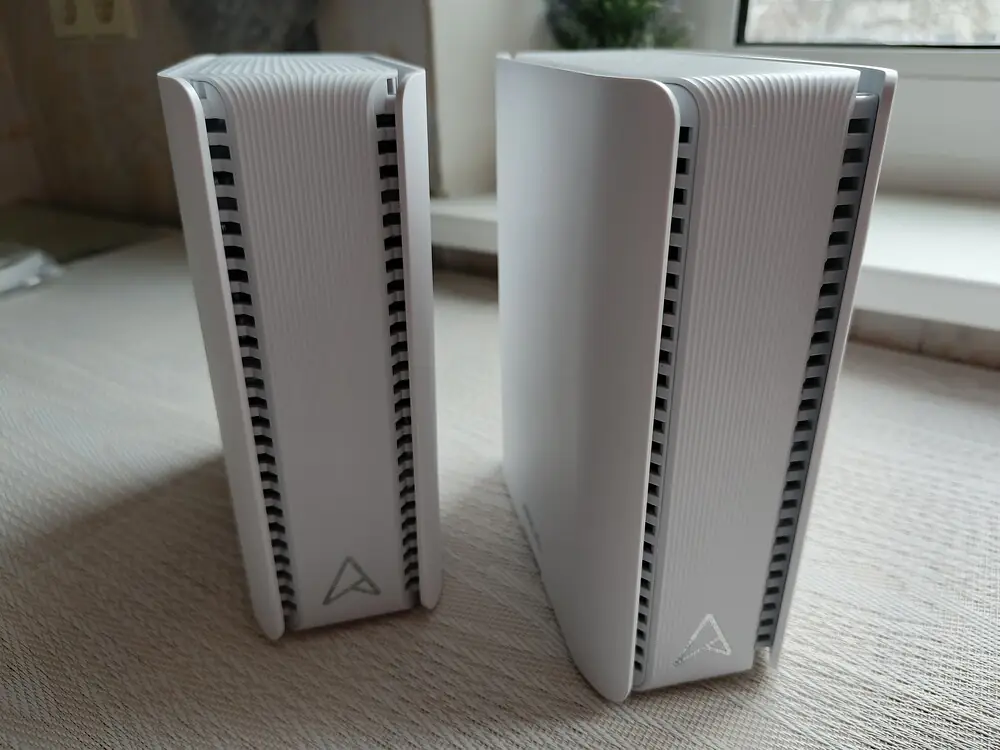

Yes, it’s smaller than the ZenWiFi BQ16, but the units will still take up quite a bit of space on a shelf or desk. There is no option to mount them on the wall, so keep that in mind. I would describe the design of this Mesh system as simple yet elegant.
The modules are made of high-quality white plastic. The build is sturdy, so there are no concerns about the manufacturing quality. The modules are nearly identical, though one of them has a special sticker indicating that it should be connected to the provider’s cable through the WAN port during the initial setup.
This is very convenient for users. However, I conducted an experiment and tried connecting the cable to the other module. I was able to set everything up just fine, so don’t worry if you accidentally mix up the modules.

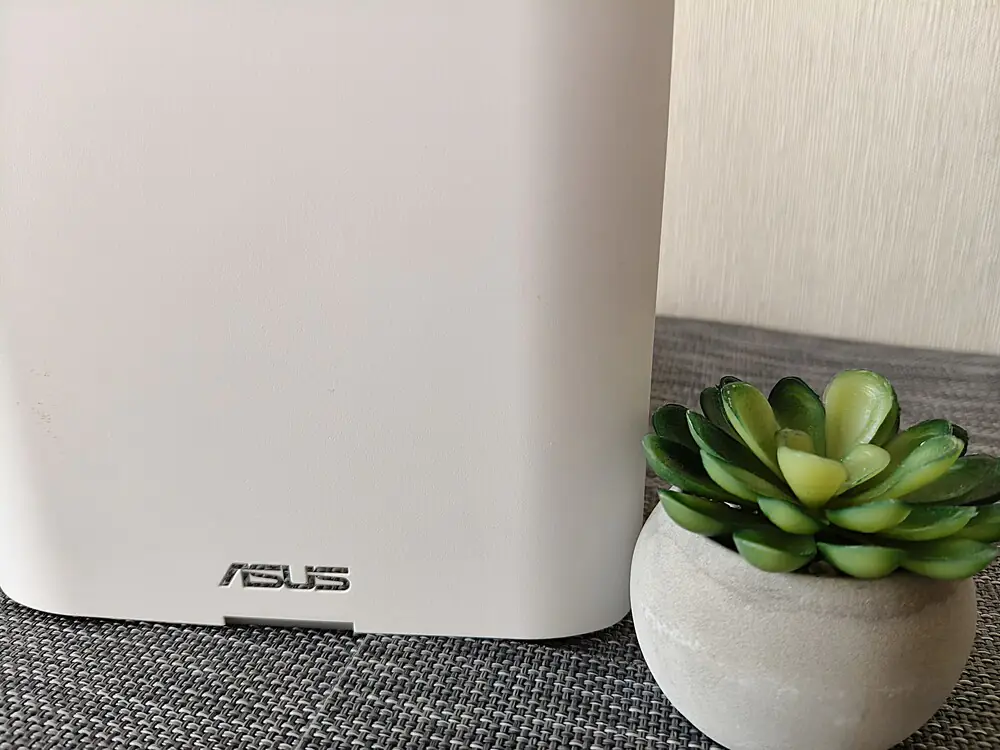

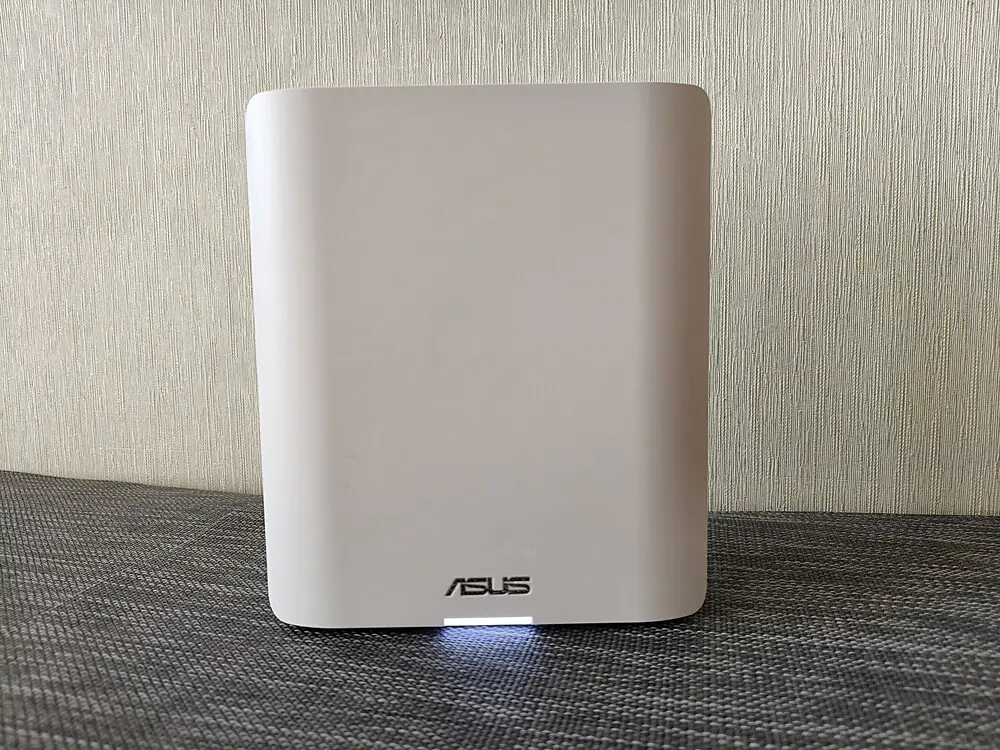

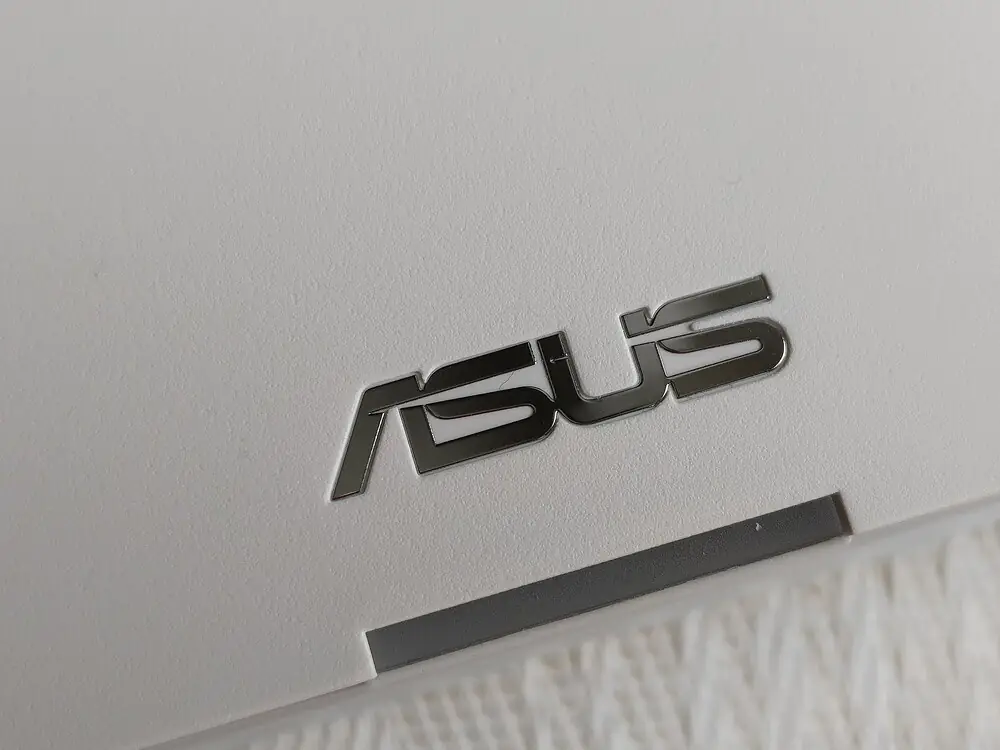

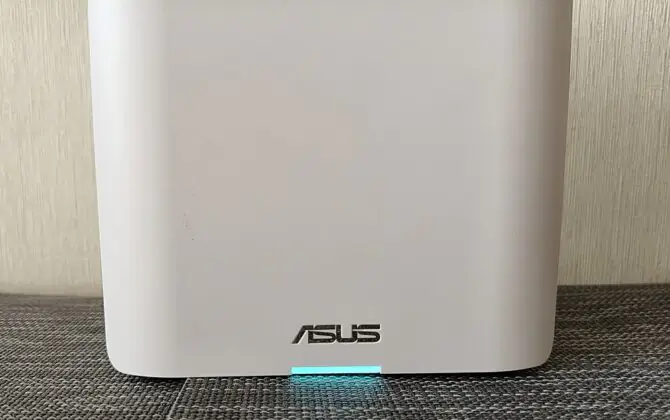

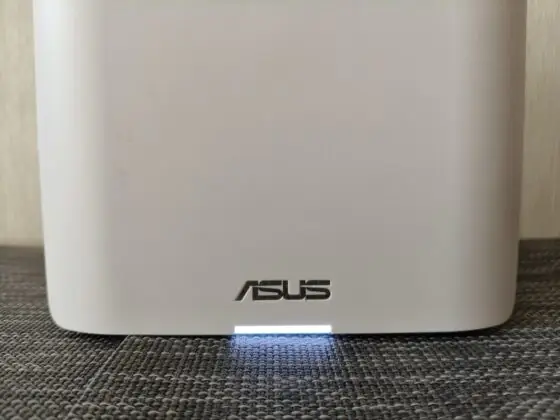

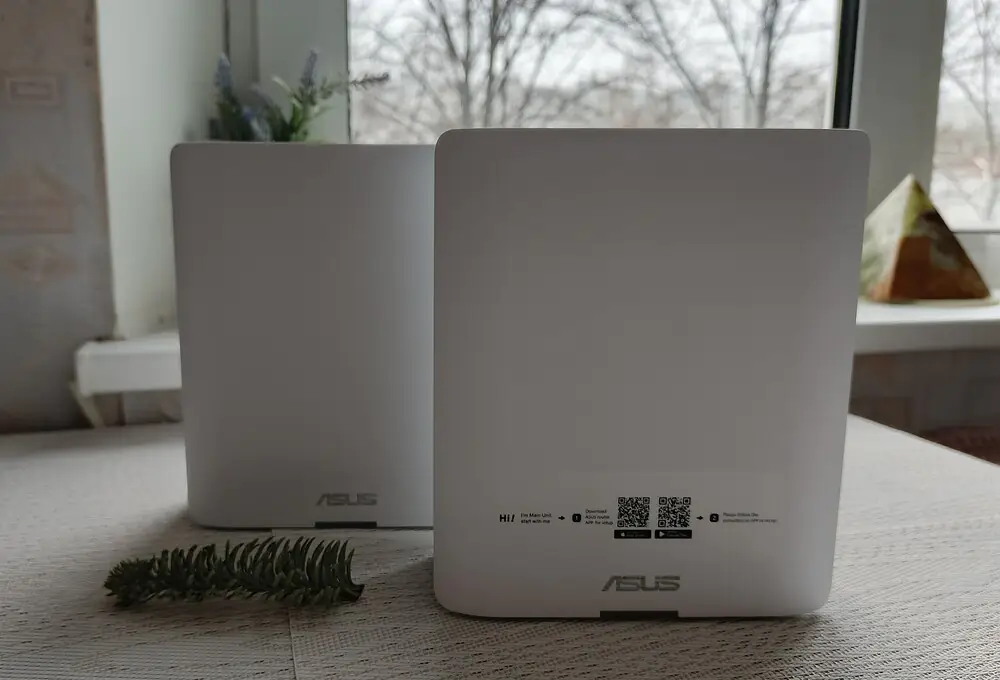

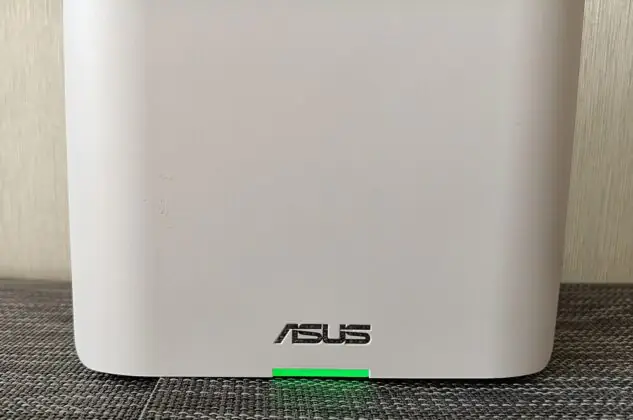

The front panel features nothing except the ASUS logo and an LED indicator.

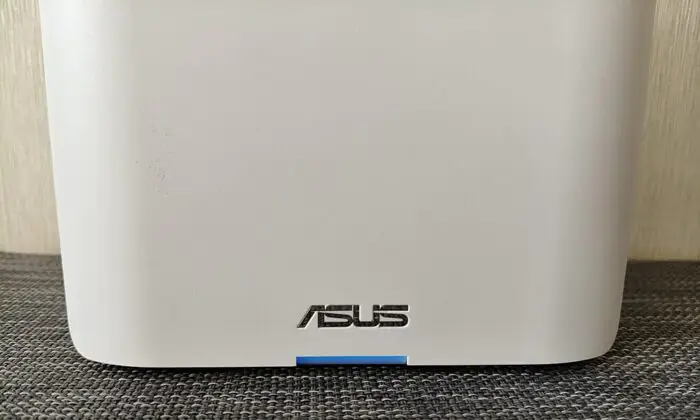

As for the indicator, it can light up in different colors, each with its own meaning. Once you plug the module into the outlet, the indicator will turn green, which may later change to pink. When the blocks are connected to each other, the indicator will blink blue. If the connection is successful, the indicator will turn bright white. A red color indicates a lack of internet connection.
By the way, the LED indicator can be turned off through the ASUS Router app. There is no physical button for disabling it.

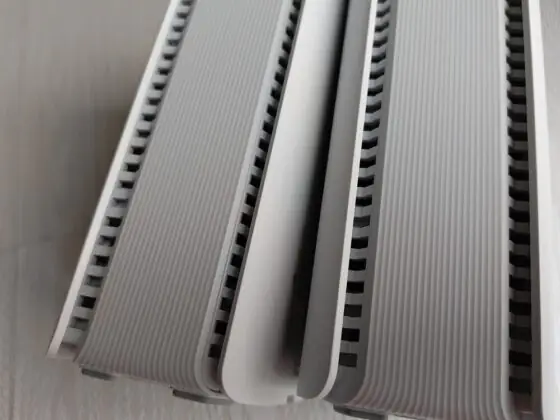

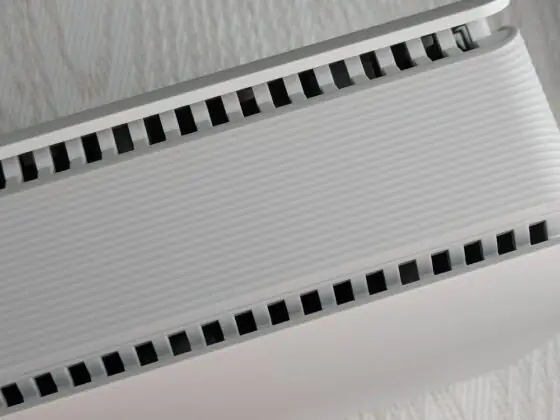

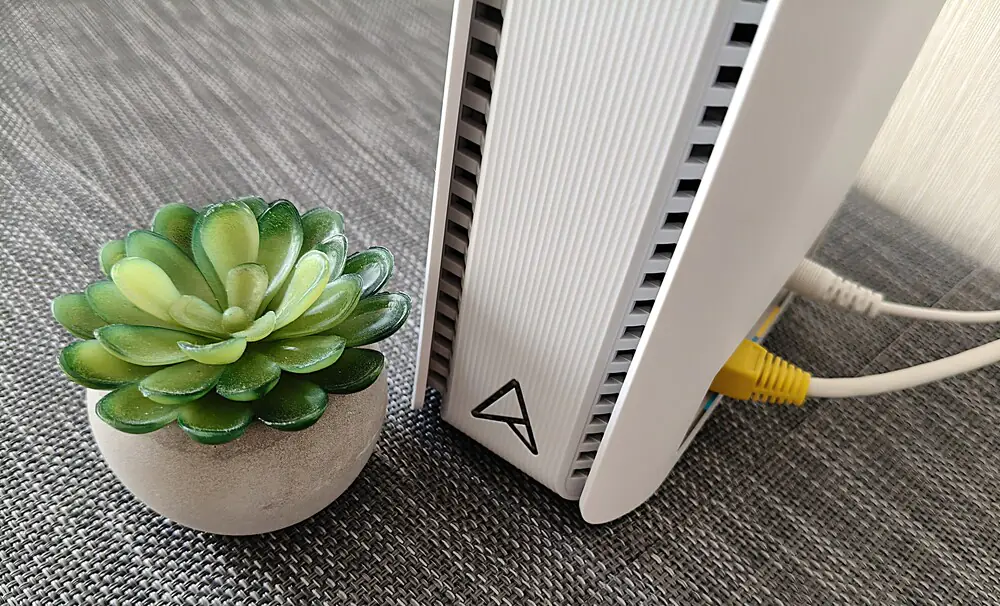

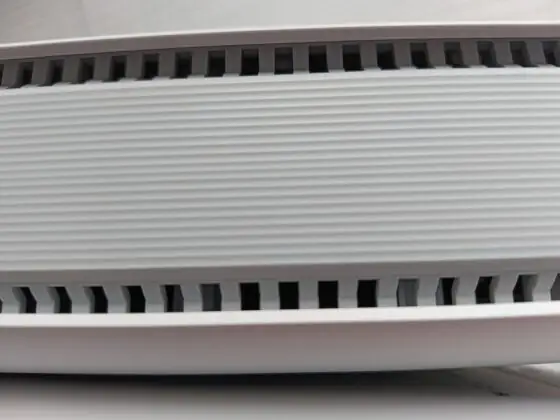

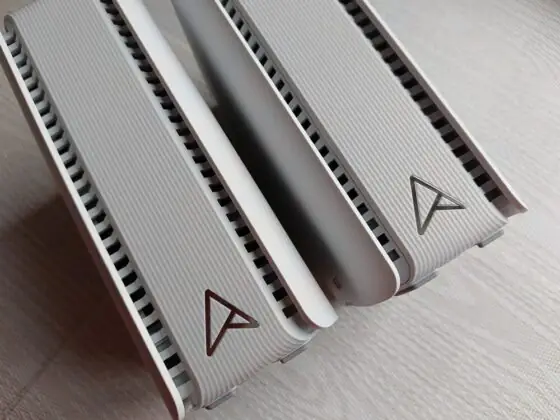

The sides of the modules feature an interesting design. There are ventilation holes on the sides, and in the center, plastic inserts with a pleasant-to-the-touch surface. On the right side, you’ll find the Zen series logo, which is also seen on the covers of laptops from this series.

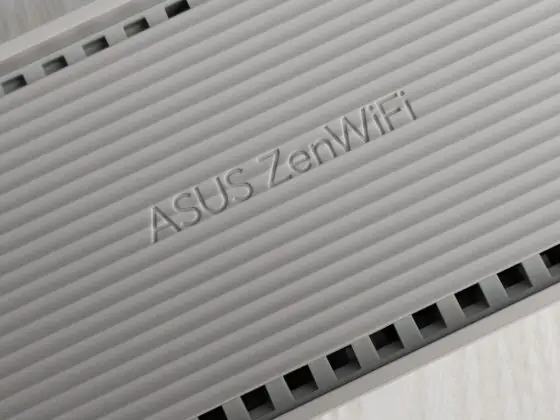

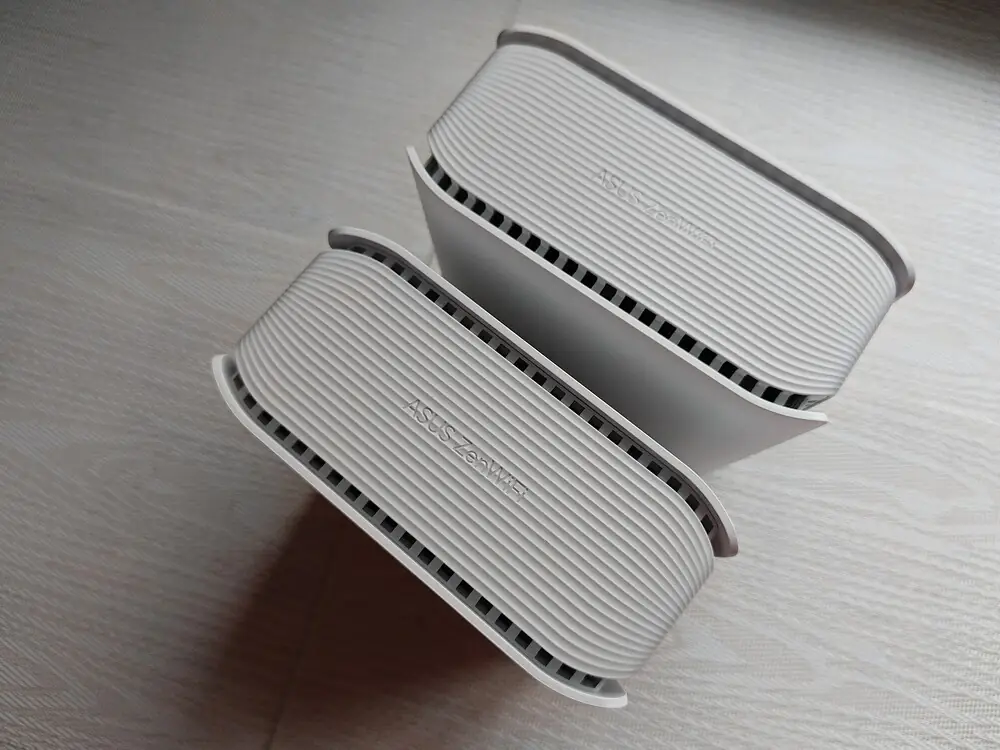

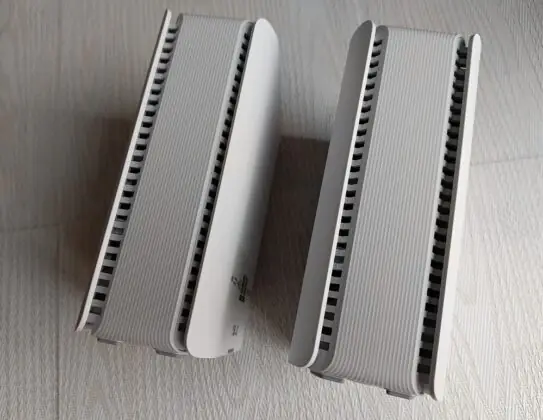

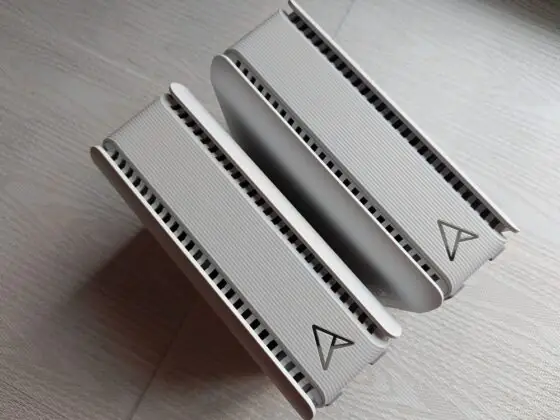

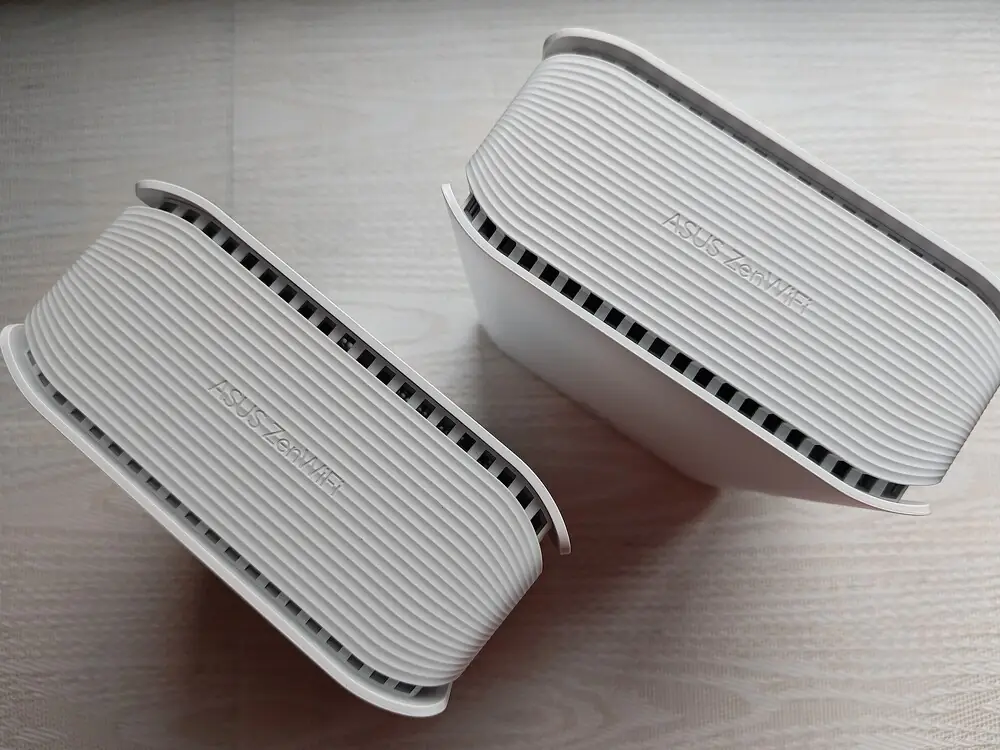

The top part also has ventilation holes on the sides, along with the ASUS ZenWiFi logo. The design is both stylish and practical.

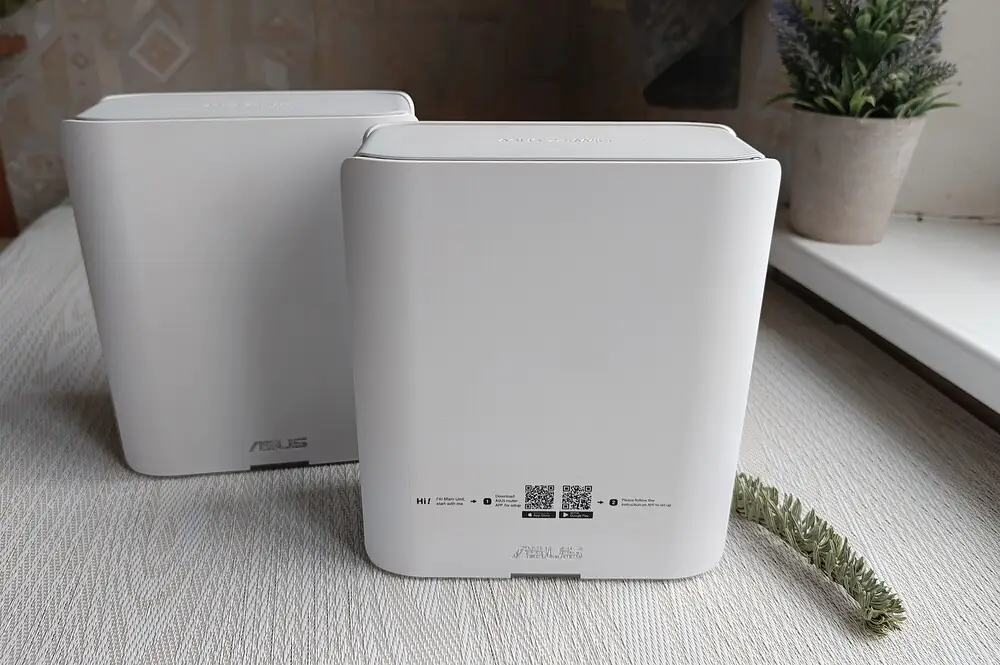

The rear surface of the router, this time, doesn’t feature the continuous ventilation grilles that we saw in the ZenWiFi BQ16. This is somewhat surprising, as those grilles had a practical purpose in cooling the Mesh system.
It’s worth noting that the ASUS ZenWiFi BT10 uses passive cooling, with no additional fans. All cooling is achieved through the natural expulsion of warm air through the ventilation openings.

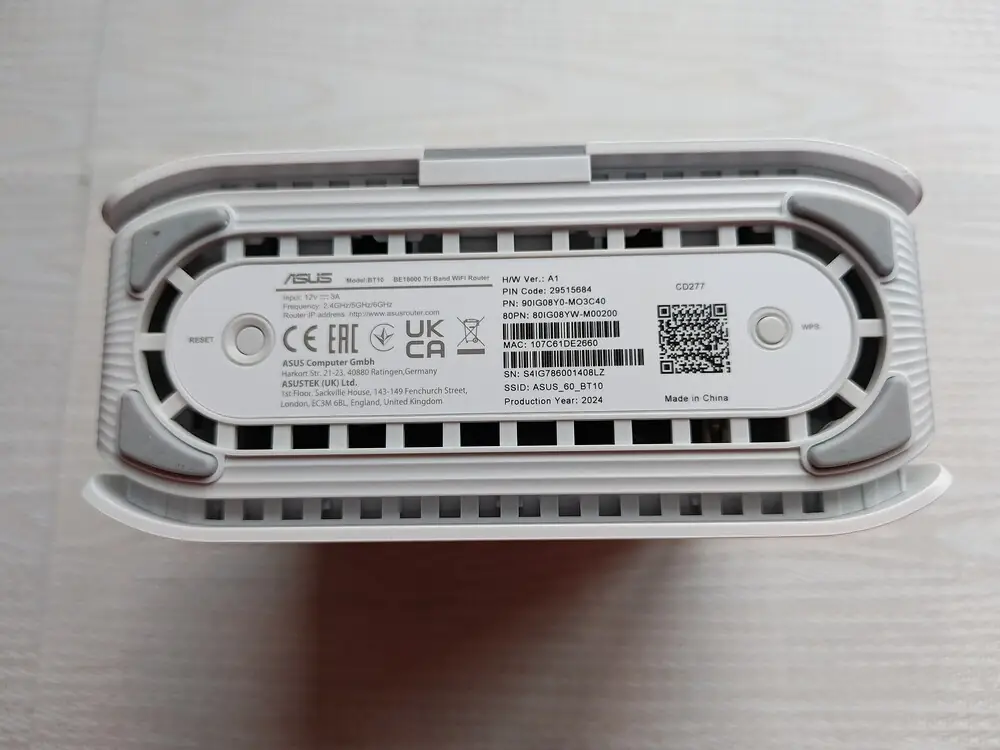

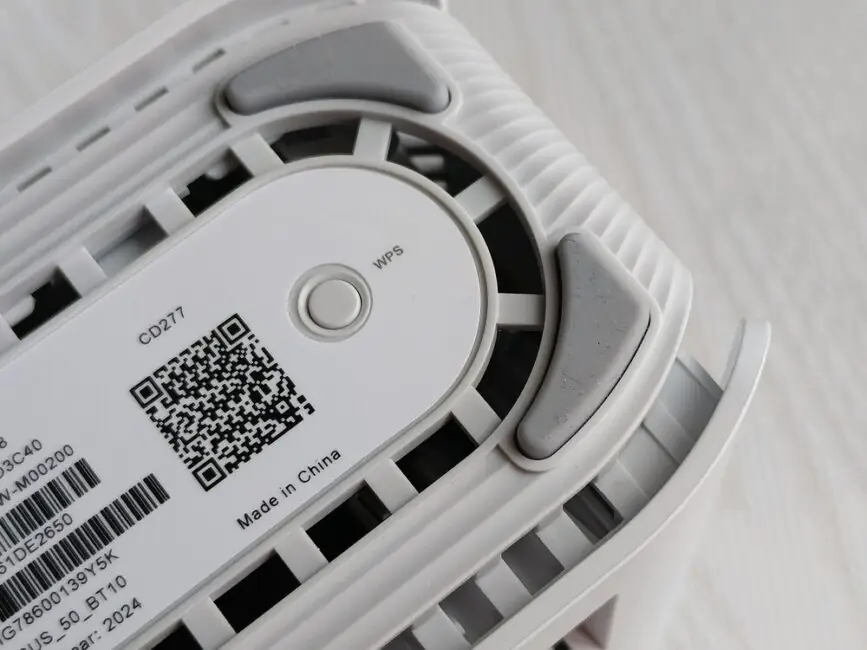

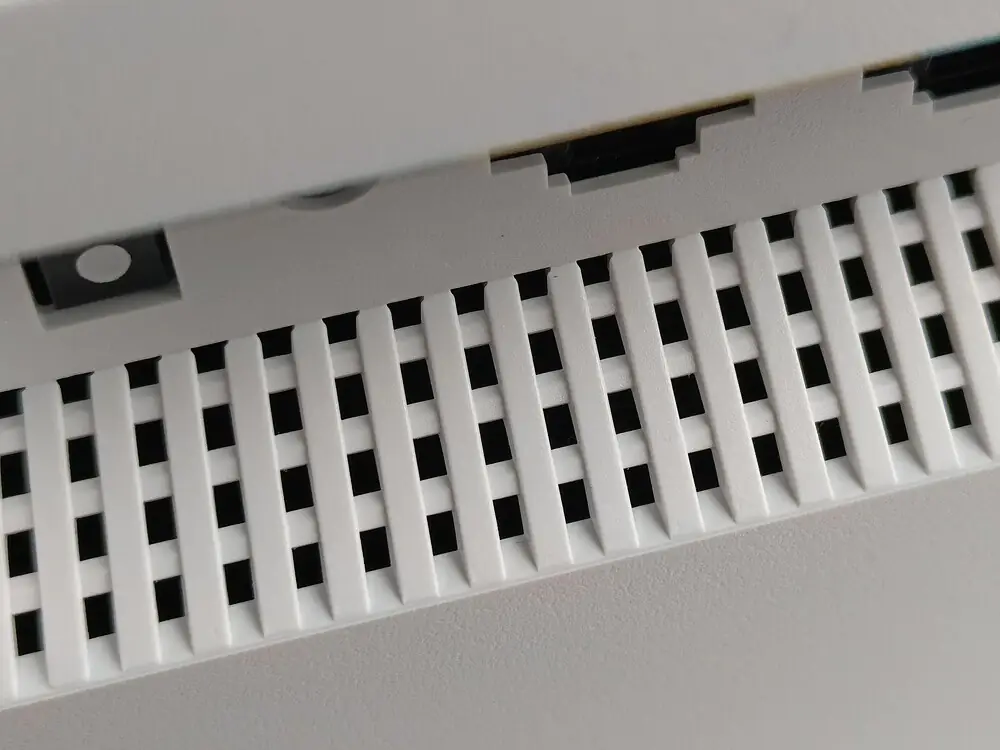

The bottom of the router is identical to the flagship version. The ventilation openings for cooling are the same shape as those on the top and sides. Additionally, there are four gray rubber feet that help the module stay firmly in place, even on smooth surfaces.
There are also two buttons: the Reset button and the WPS button. The WPS button allows you to connect a device to the Wi-Fi router without entering the network password. In the center, there’s a sticker displaying the exact model of the router, its main specifications, electrical input details, and the domain for accessing the router’s administration via the Internet. Additionally, the sticker includes the firmware version, hardware version, serial number, and MAC address. Of course, the equipment’s SSID and default password are listed, along with a QR code for easier connection to mobile devices like smartphones.
In short, my impression of the design is that I expected more compromises compared to the ZenWiFi BQ16. While the modules are smaller and lighter, the materials used for the casing remain the same. The attractive design will likely appeal to even the most discerning users, and I’m confident about that.
Read also: ASUS RT-BE88U Review: Router with Up to 34 Gbps Throughput
Ports and connectors

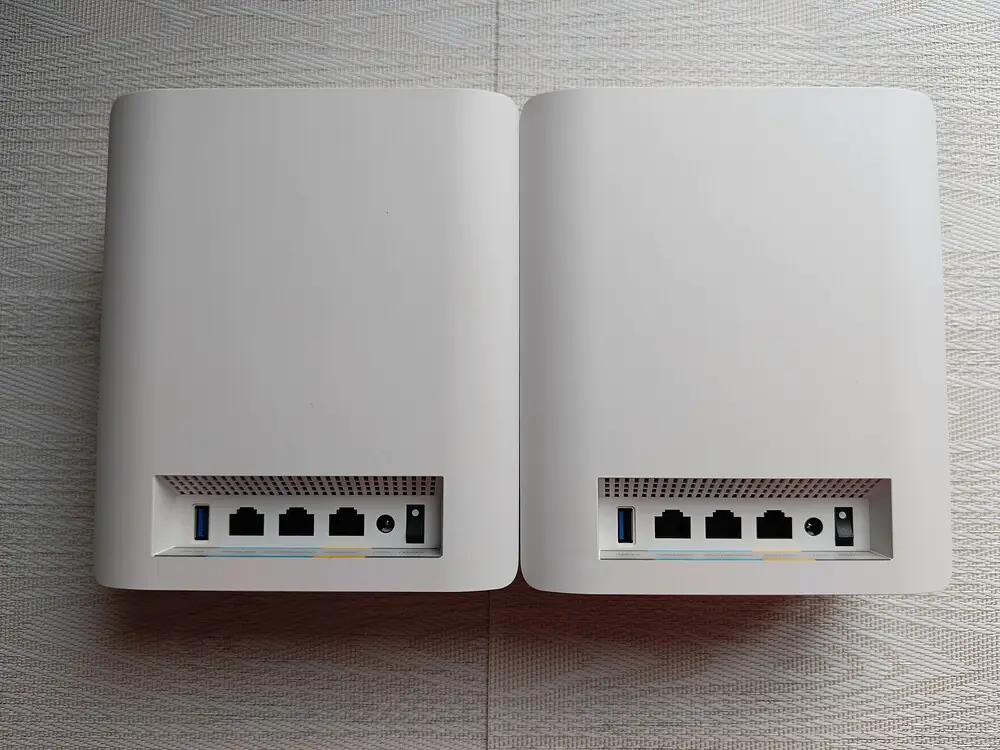

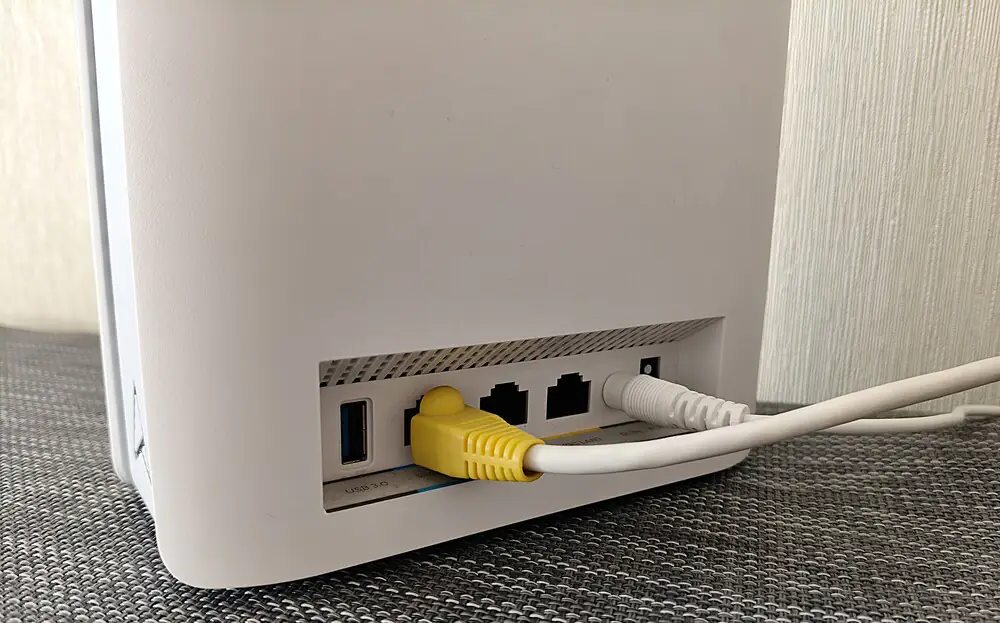

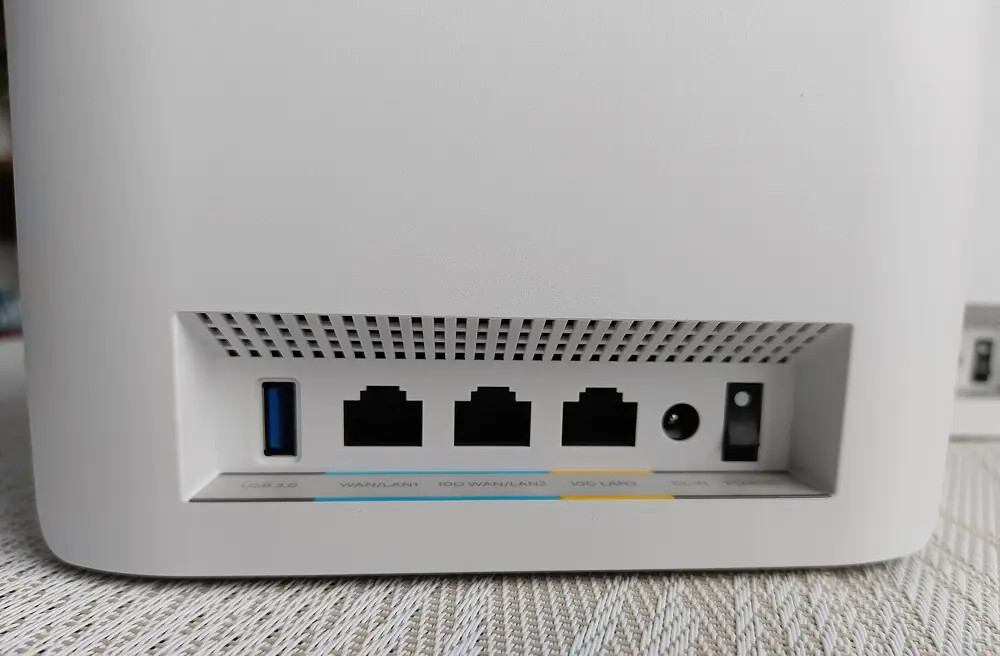

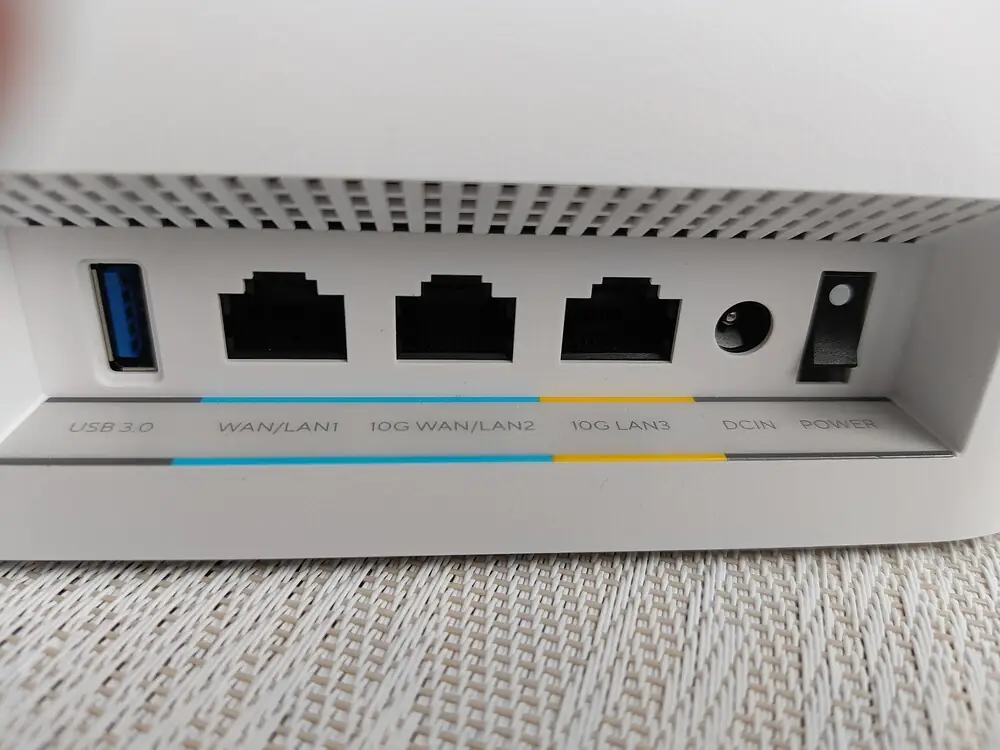

Now, let’s take a closer look at the rear panel of the ASUS ZenWiFi BT10. We’re particularly interested in the ports equipped on each module of this Mesh system. It’s worth noting that they are identical on both devices.
On the right side, there is a power switch and a DC-IN port where you connect the power cable. Next, you’ll find a modern 10-gigabit LAN port for local network connection, alongside a cutting-edge 10 Gigabit Ethernet LAN/WAN port. To make it easier to differentiate, the latter is highlighted with blue stripes, preventing confusion with the gigabit LAN port for the local network, which is marked with yellow stripes. Additionally, there’s another gigabit WAN/LAN port, where you can also plug in a cable from your provider. This port is also highlighted with blue stripes for clarity.
On the left side, there is a USB 3.0 Gen1 Type-A port, which allows you to connect an external storage device. It’s important to note that both modules in the set are identical and support the same connection options. The ports can be used for various connection schemes (Dual WAN), where the WAN, the first LAN port, and the USB port will be in use.
The presence of 10-gigabit ports ensures ultra-fast connectivity, making this Mesh router relevant for at least the next decade.
Read also: ASUS ROG Rapture GT-BE98 Review: Router with Wi-Fi 7
Just right for a large house or office
In one package, you either get one or two Mesh system units. I tested the ZenWiFi BT10 with two stations, which, according to ASUS, should cover up to 550 square meters. This is under ideal conditions with clear line-of-sight and only 6 Wi-Fi clients on the network. However, considering internal walls, ceilings, and the need for a stable minimum speed, I’d say this system is well-suited for a standard two-story house or a small office.
It’s important to note that you won’t be able to place the devices too far apart, especially if you want good coverage with Wi-Fi 5. Newer standards like Wi-Fi 6 or Wi-Fi 7 offer a larger range, but if your devices don’t support them, the range decreases. On the other hand, if your devices do support Wi-Fi 6 or 7, they can be spaced farther apart while still maintaining the claimed speeds. The recommended distance between stations should not exceed three meters.
Setting up and getting started is quite simple. You just need to plug all the devices into the power outlet, open the web-based settings page, or download the ASUS Router app on your smartphone and launch it. The app will automatically detect the necessary devices, and within a few minutes, you’ll just select the network name and password, as well as the administrator interface, and everything will be ready to go. I’ll go into more detail about the setup later.
One inconvenience is that ASUS asks us to place the mesh nodes within three meters of the main router during the initial setup before we can position them where we want in the house. However, given that everything else goes smoothly, this minor issue can be overlooked.
Each module can be used as the primary or additional unit under the same conditions, determined by the active WAN connection. The core hardware of each unit includes a quad-core processor with a clock speed of 2.0 GHz, responsible for Ethernet, hardware NAT, and the system itself. The device also features 2 GB of RAM and 256 MB of firmware storage.
It’s worth noting that each module comes with 8 internal antennas, which together use a tri-band grid covering the 2.4 GHz range, one 5 GHz band, and the 6 GHz band. This means that compared to the ZenWiFi BQ16, we’ve lost one of the 5 GHz bands.
All of this ensures a substantial bandwidth of up to 18,000 Mbps. It’s also important to mention that Wi-Fi 7 introduces ultra-wide 320 MHz channels in the 6 GHz band, doubling the bandwidth and enabling even faster data transfer.
To recap, the ASUS ZenWiFi BT10 supports three operating bands, which can be available separately or in Smart Band mode, providing an incredible total bandwidth of 18,000 Mbps. These bands operate and distribute as follows:
- 2.4 GHz Band: It operates under the 802.11be standard and provides a maximum speed of 688 Mbps in a 2×2 connection, meaning 4 antennas are used simultaneously between the client and the router on a 40 MHz channel. Additionally, it supports 4096-QAM modulation.
- 5 GHz Band: This band supports a throughput of 5764 Mbps in 4×4 connections, operates on a 160 MHz frequency, and supports 4096-QAM modulation. The 5 GHz band can operate separately on low (less than 100) or high (over 100) DFS channels, depending on manual or automatic configuration. Two bands can be used for clients, or one for trunking in a Mesh network with multiple ASUS routers.
- 6 GHz Band: The key feature of this band is the expanded frequency spectrum up to 7.125 GHz, enhancing speed and congestion management on other frequencies, as well as the addition of auxiliary channels. It operates at a maximum speed of 11,529 Mbps in a 4×4 setup on a 320 MHz range, using either high or low channels.
Thanks to the Target Wake Time technology, Wi-Fi clients can enter a sleep mode, optimizing power consumption and freeing up spectrum frequencies. Additionally, the Multi-RU Puncturing feature has been implemented to improve channel usage efficiency. These innovations allow Wi-Fi 7 devices to provide faster and more stable wireless connections, which is particularly beneficial for Mesh systems.
The ASUS ZenWiFi BT10 actively uses MLO technology, which allows dynamic switching between three frequency bands to maintain a stable connection with maximum bandwidth. In practice, this feature delivers excellent results, with the device maintaining its maximum speed in every area of the apartment.
Additionally, it supports OFDMA technology, which improves simultaneous client connections, and BSS Color, which speeds up the identification of the network without needing to scan the entire spectrum. Game Boost, OpenNAT, and WTFast are also included to optimize the gaming experience.
Another key feature is the support for 4K-QAM, which increases data transfer density and boosts speed by 20% compared to Wi-Fi 6E. Finally, Multi-Link Operation (MLO) technology enables the simultaneous use of all three frequency bands (2.4, 5, and 6 GHz), resulting in a more stable, faster, and smoother network performance.
This technology is particularly beneficial for communication between client devices and Mesh system nodes. The main advantage lies in the ability to use MLO to create a more reliable backhaul connection between nodes, even if the primary communication channel is operating on the 5 GHz band.
Read also: ASUS ROG Rapture GT6 review: Mesh system for gamers
Initial setup
ASUS deserves credit for the simplicity of the router’s initial setup. There are still two ways to set it up: through any browser on a laptop by visiting router.asus.com, or via the ASUS Router mobile app.
Lately, I’ve been using the ASUS Router app more often, as it offers a faster and more convenient way to set up the router for the first time. However, I prefer the web interface for more precise adjustments when configuring the router to suit my specific needs.
Before you begin setting up the module, you need to plug it into a power outlet and connect your provider’s cable to one of the 10-gigabit or gigabit WAN ports, marked in blue. Next, connect your smartphone to the Wi-Fi network. Don’t be alarmed if your mobile device shows that there is no internet access just yet.

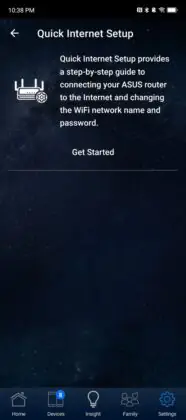

Pre-download the mobile app and open it. Start the process of setting up a new device. In the list of routers, find your device, which will initiate the setup process.
There’s no need to worry about not being able to complete the setup, as the process is very straightforward and easy to follow. Simply follow the Setup Wizard’s instructions, and in a short time, your Mesh system will be ready to use.
An important note: during the setup process, you have the option to configure the three frequency bands separately or use the Smart Band mode, which automatically selects the appropriate band for your laptop, smartphones, or TV. I personally always choose this mode, as it’s very convenient and practical.
After that, you should connect the second module. The process is quite simple, but I would recommend connecting the modules to each other using an Ethernet cable for the local network. Insert the cable into the LAN port, which is marked with a yellow stripe. Then, connect the modules, and everything will be ready to go. By the way, you can disconnect the second module from the main one and move it to another room. Just plug it into a power outlet, and the network device will take care of the rest.
From the first moment of using the ASUS ZenWiFi BT10, you can tell you’re dealing with a cutting-edge, powerful networking device. Everything works reliably, all apps and programs open almost instantly, with no delays or glitches.
Read also: ASUS ZenWiFi XT9 review: a versatile Mesh system

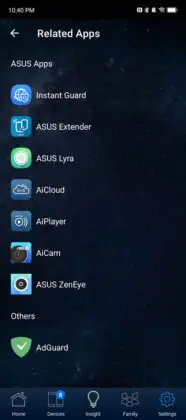

ASUS Router mobile application

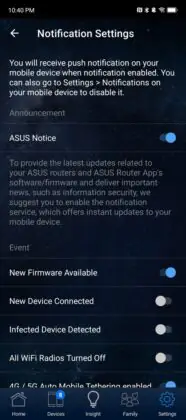

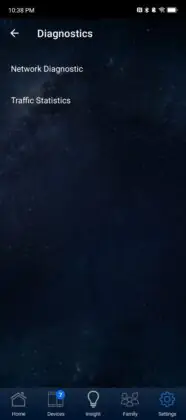

Personally, I find it much easier to manage the Mesh system through the ASUS Router app. Why? I think the ZenWiFi BT10 system is more geared towards an experienced smartphone user who wants to control everything through the app. Yes, it’s possible to set up the Mesh system through the app, but less experienced users might run into some difficulties.
The app itself is visually clean, but quite technical. I believe this aligns well with ASUS’s target audience for its products.

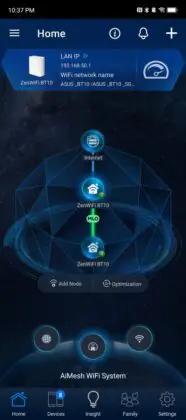

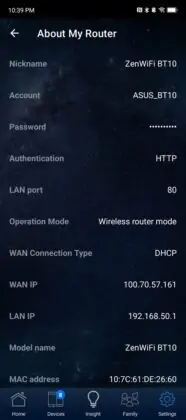

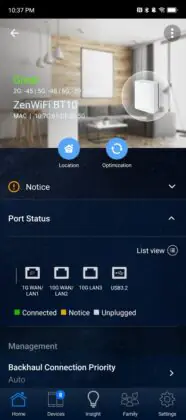

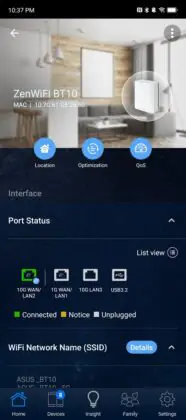

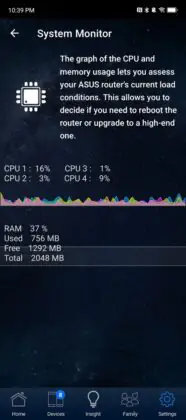

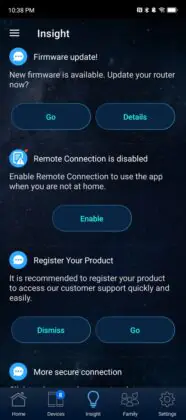

On the main page, you’ll first find a brief overview of your network, including the connected stations, the number of connected clients, and more. In the Devices tab, you can view all connected devices, along with key information such as signal strength, IP address, and other details.

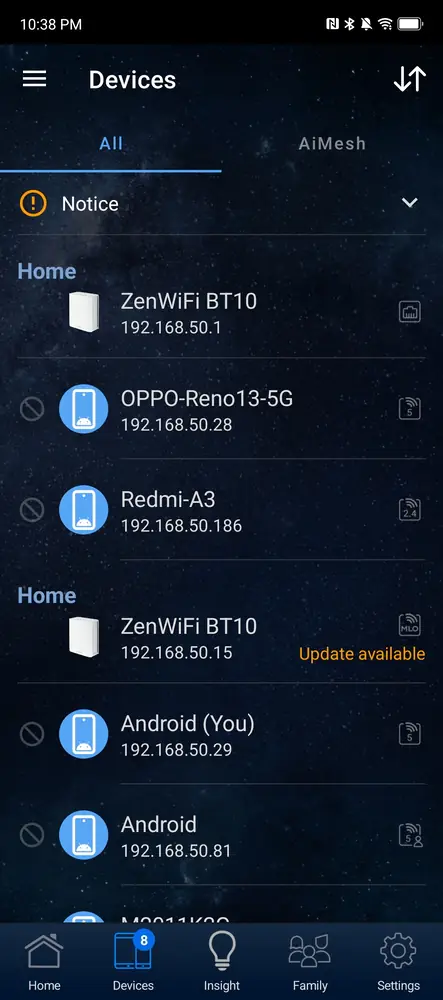

The ASUS Router app also displays a list of devices connected to each network unit and even shows which specific network (2.4 GHz, 5 GHz, or 6 GHz) they are connected to. From here, you can block internet access for each device individually or set speed limits for that particular device.

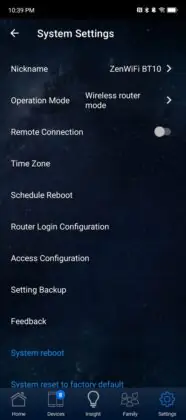

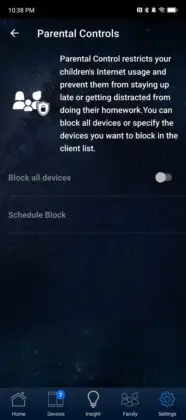

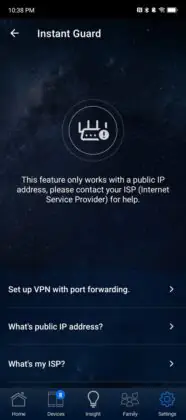

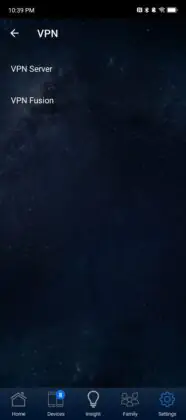

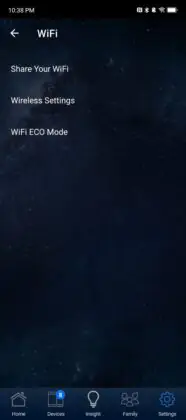

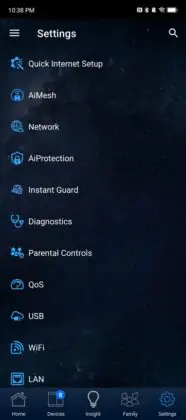

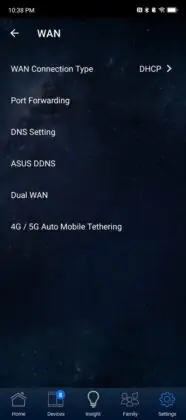

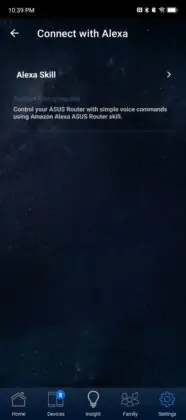

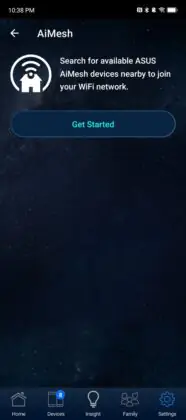

In the advanced settings, you can configure AiMesh, AiProtection, and WLAN. It’s mostly the same as the web interface, but with some limitations. A positive change is that the AiMesh system has become smarter and easier to manage compared to when it was first introduced. It’s now simple to connect compatible additional nodes if you want to expand the network, which wasn’t the case a few years ago.

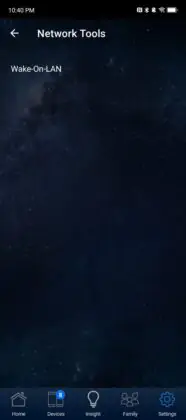

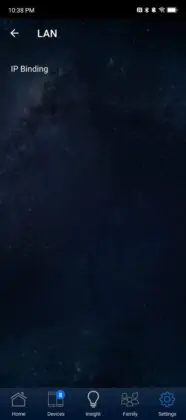

The only thing that’s more limited in the app compared to the browser setup is the number of available settings, but in my opinion, this will be an advantage for many users. Honestly, I don’t think any significant issues will arise. After all, how often do you need to configure the OFDMA mode for 802.11be combined with MU-MIMO? Such settings are rightly left in the browser interface by ASUS. Indeed, the ASUS Router app outperforms its competitors in this regard.
Read also: ASUS ROG Rapture GT-AXE16000 review: router for the most demanding users

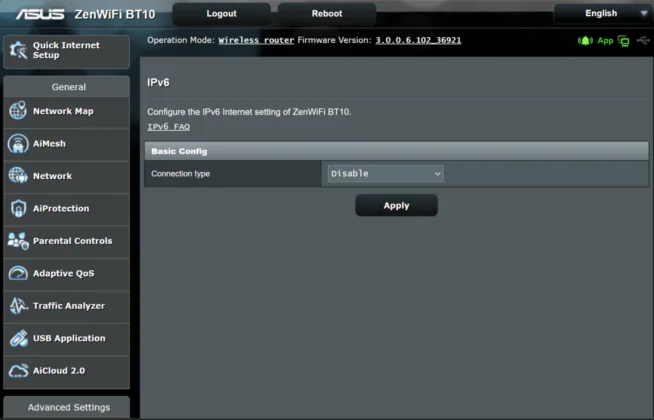

Advanced configuration via web interface

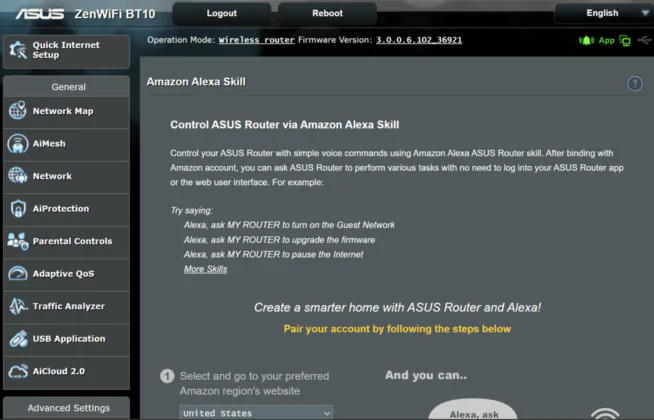

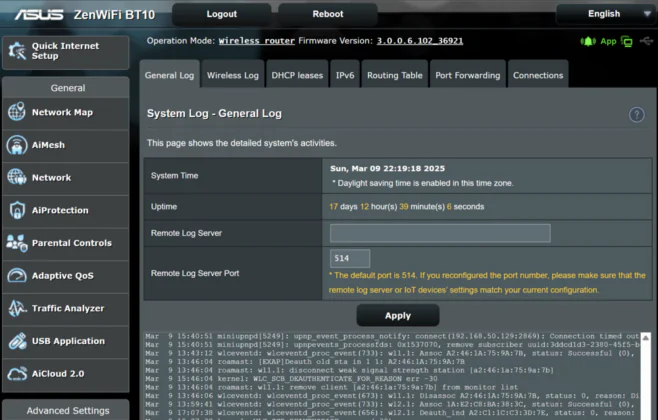

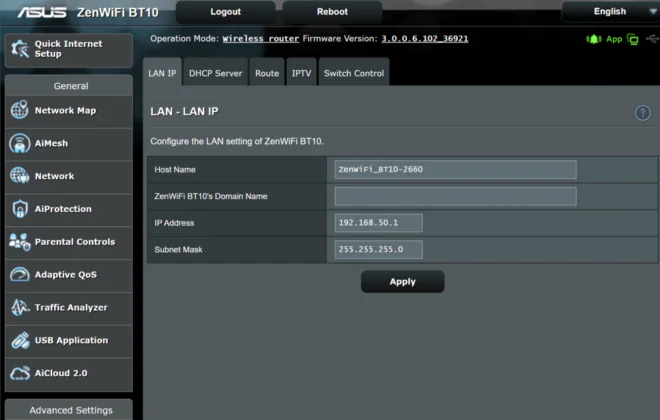

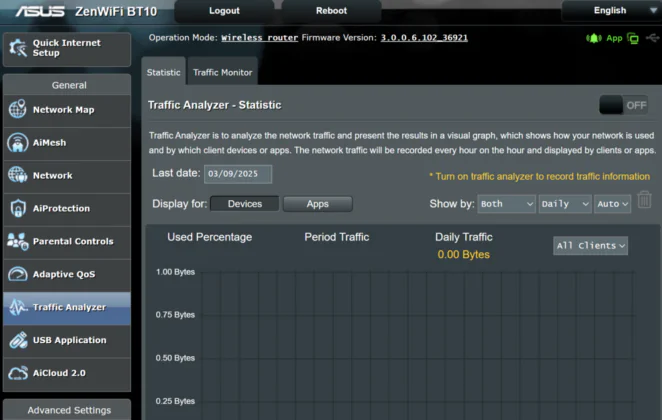

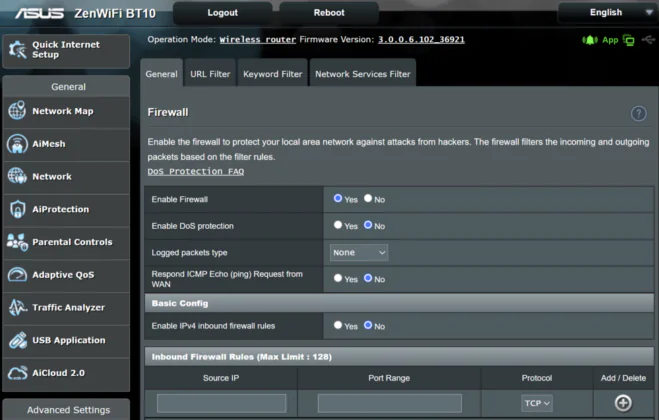

Now, let’s take a closer look at the advanced setup process through the web interface, which more discerning, experienced users will appreciate.
The ZenWiFi BT10 is currently running the latest firmware version, but you may be prompted to update it. If so, be sure to do so. You’ll receive a new version with improved firmware features, which will help better configure the device to suit your needs.

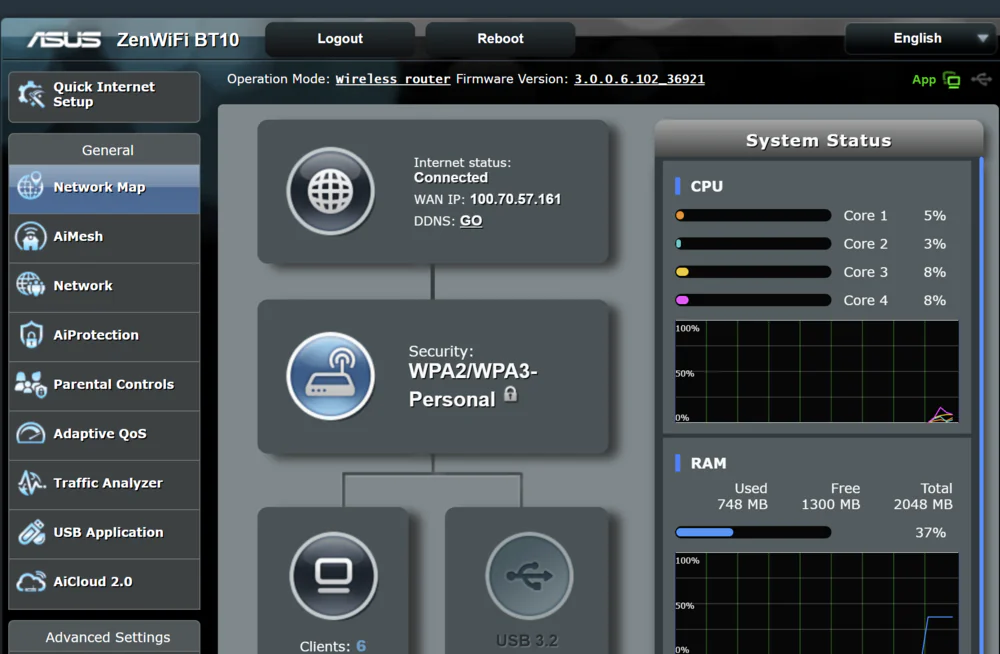

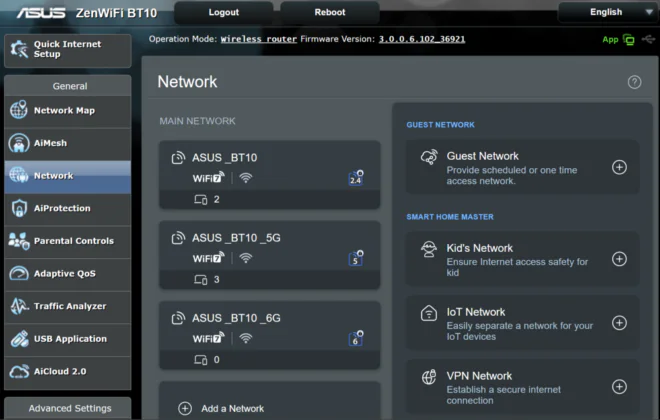

After entering your login and password, you’ll be directed to the Network Map, which provides an overview of the current system status. The interface itself is quite user-friendly, well-organized into logical sections, and available in 25 languages. This will allow you to manage everything as you wish. Both casual and experienced users will be satisfied with the level of control provided. The help documentation is easily accessible: when you hover the cursor over a setting you’re unfamiliar with, a question mark icon will appear. Click the question mark, and you’ll see explanatory information.
Unfortunately, the documentation hasn’t been updated to include information about all the features added by ASUS in their latest firmware, so this method doesn’t work for every setting. I would like ASUS to expand this feature to cover all their new Wi-Fi 7-related settings, to make working with the new configuration options associated with these standards easier.
Currently, the ZenWiFi BT10 is running the latest firmware version, but you may be prompted to update it. If so, be sure to do so, as the new version includes enhanced features.

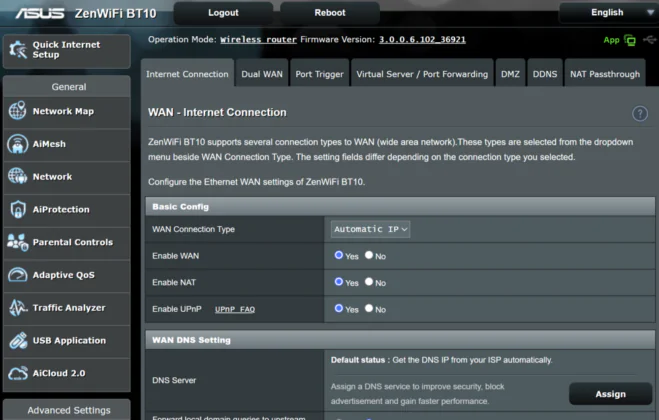

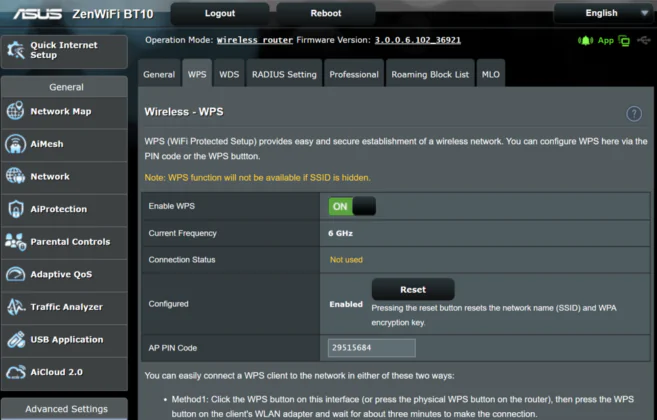

Instead of covering all the features, many of which are standard options for modern routers, let’s focus on the most interesting ones. Starting with the large information dashboard, which provides not only typical network traffic data but also ping information, a gaming radar shortcut (which we’ll revisit later), and features related to the lighting.

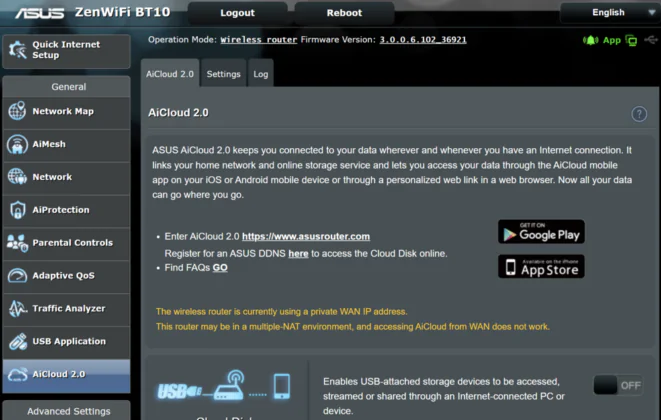

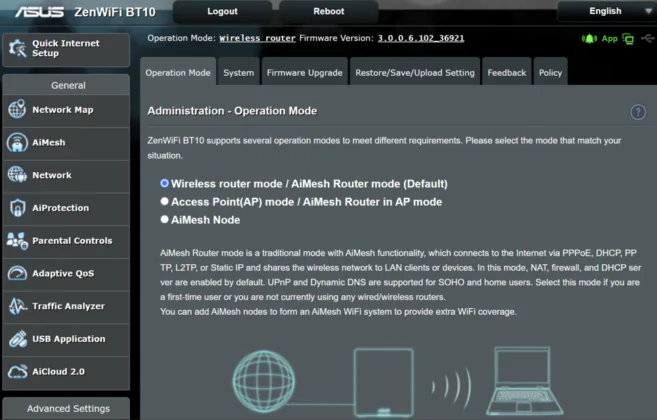

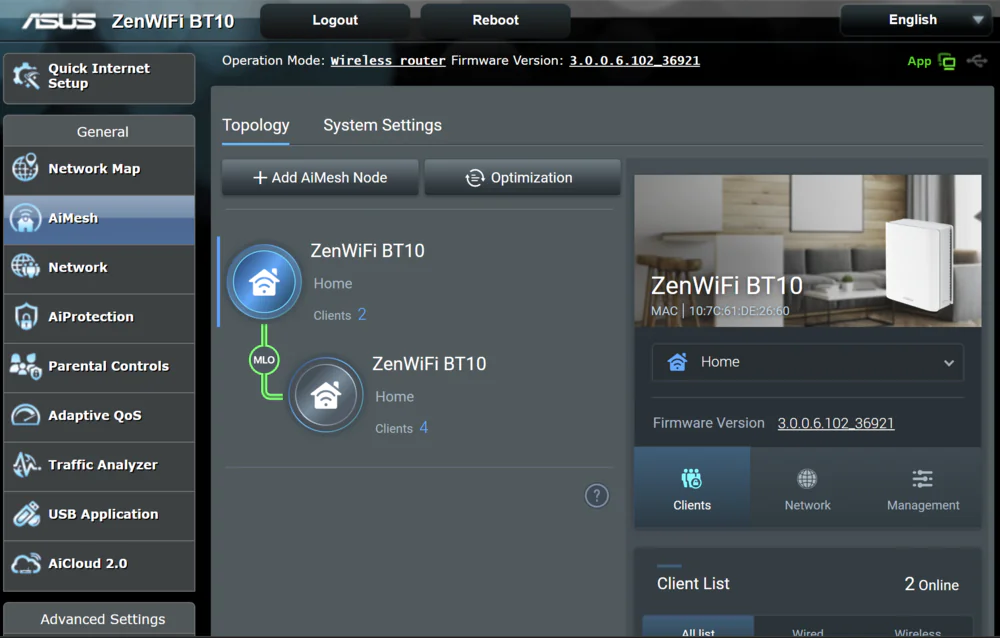

Among the general options, you’ll find AiMesh, which allows you to create a mesh network using various ASUS routers. This is an ideal solution for owners of single-family homes or very large apartments.
The ASUS ZenWiFi BQ16 features AiProtection, although it lacks an intrusion prevention system (IPS). During testing, AiProtection successfully protected my device from accessing a malicious website.

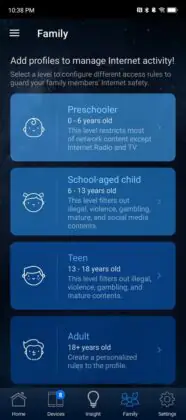

The ASUS ZenWiFi BQ16 also includes a “Parental Control” feature, allowing you to manage the internet access time for children.

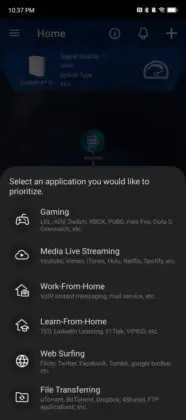

This router in this price range wouldn’t be complete without QoS (Quality of Service). ASUS offers options like WAN/LAN bandwidth monitoring and the ability to enable either adaptive or traditional QoS. The adaptive QoS optimizes the inbound and outbound bandwidth for wired and wireless connections based on predefined settings, such as gaming, multimedia streaming, VoIP, web browsing, and file transfer. There are also options to limit bandwidth. In the advanced settings, you’ll find typical parameters for the wireless network (such as support for 160 MHz or 320 MHz channel width, which is disabled by default, so it’s worth enabling it initially) and a guest network, which is a standard feature for newer routers.
While it’s possible to go into detail about each setting in the web interface, these might not be of much interest to the average user, and experienced users can easily find them on their own. So, let’s move on to the most interesting part of my review.
Read also: Review of ASUS Zenbook Duo (2025) UX8406CA: Two Screens Are Definitely Not Overkill
How ASUS ZenWiFi BT10 works in practice

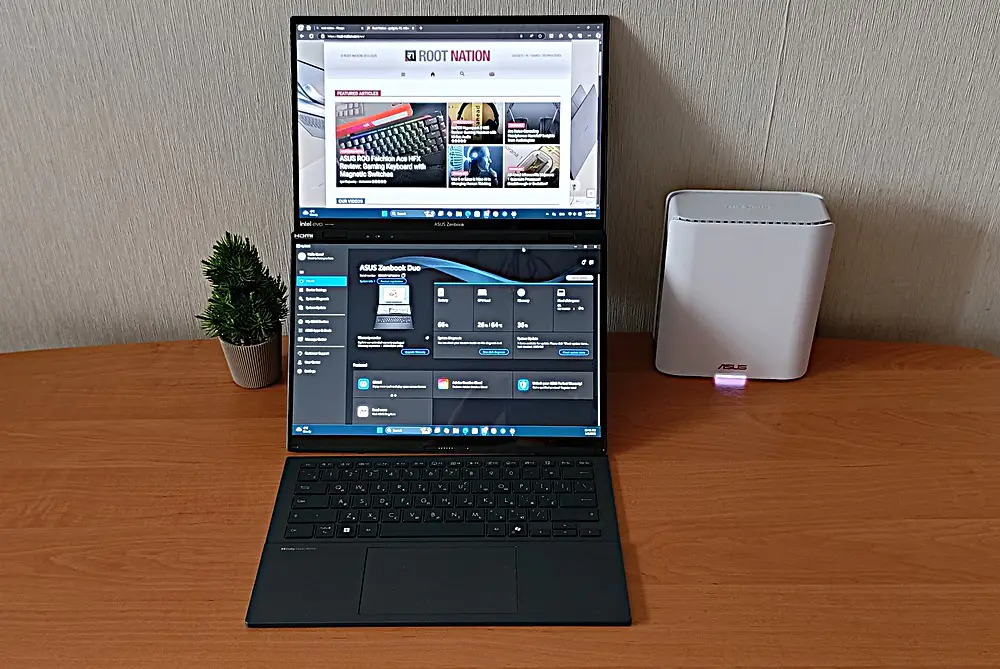

I’m sure this is a question on the minds of many readers. When purchasing a Mesh system like this, we expect maximum power and stability in performance. I’m confident that ASUS’s new offering won’t disappoint you. But let’s dive into the details.

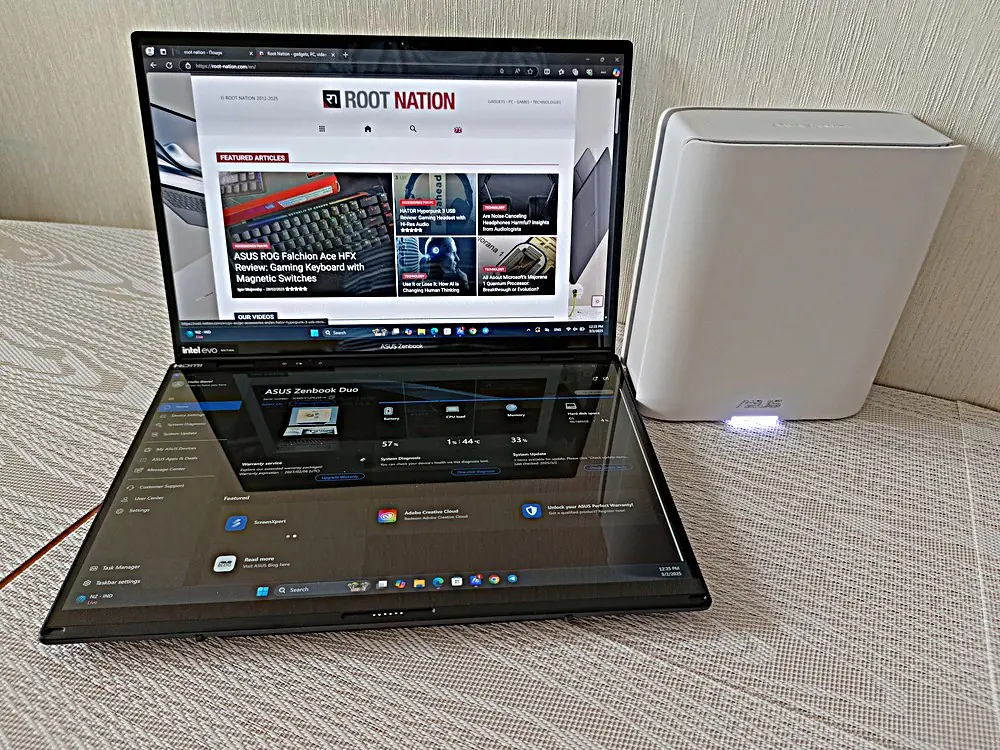

I connected up to 20 devices simultaneously, and none of them experienced any connection or speed issues, whether through wired or wireless Wi-Fi. The best results were from devices supporting Wi-Fi 7 (I tested the new standard on the ASUS Zenbook DUO 2025), but even my old Philips TV, nearly 7 years old, handled streaming video content without any problems.
The speed on older devices has significantly improved, which is one of the advantages of routers with Wi-Fi 7. Additionally, it’s worth mentioning the new quad-core processor.
For gaming, the ASUS ZenWiFi BT10 provides sufficient internet speed, making you forget you’re using Wi-Fi instead of a wired connection. The difference is minimal and negligible. The speed and power are so high that internet issues are unlikely. A few settings in the Games mode maximize the router’s gaming capabilities. It’s so convenient and fast that it’s hard to describe. It feels like you’re playing a game stored on your laptop rather than on Steam servers.
File transfer speeds and streaming video content from YouTube also pose no issues. You can easily download a game from a server while simultaneously chatting and sharing content with friends or colleagues, or watching an online movie or series. Everything will run smoothly, without delays or problems. I’m confident that the same experience will be shared by every family member.

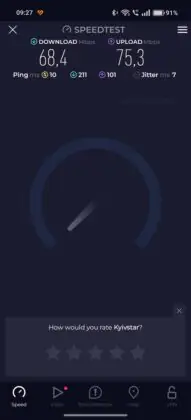

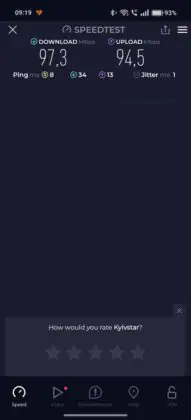

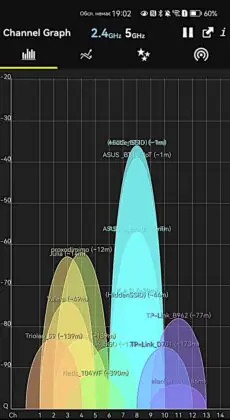

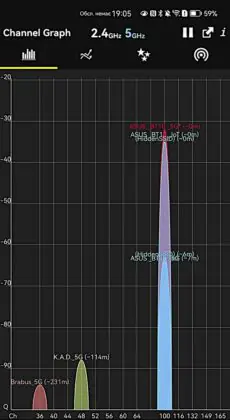

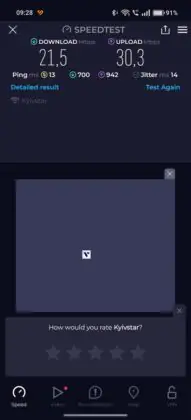

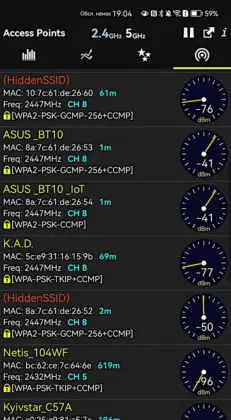

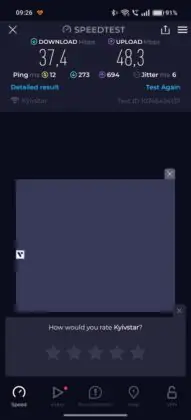

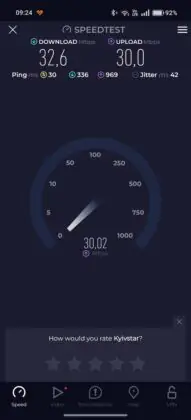

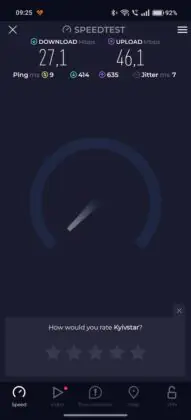

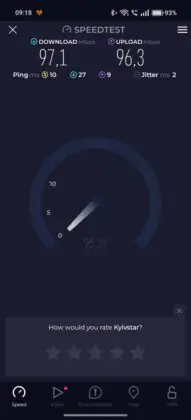

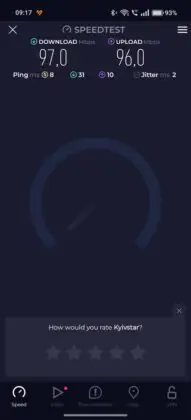

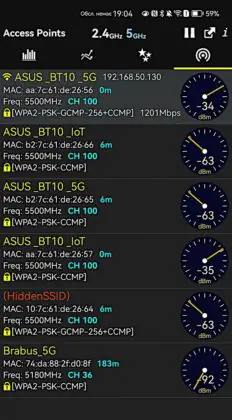

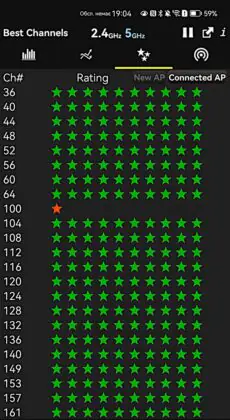

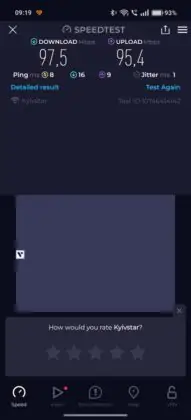

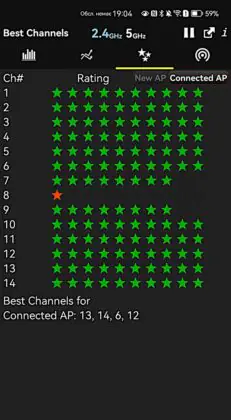

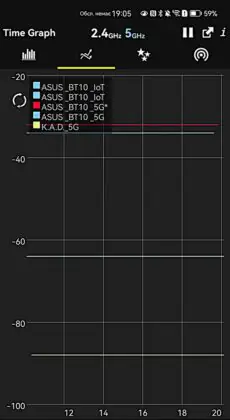

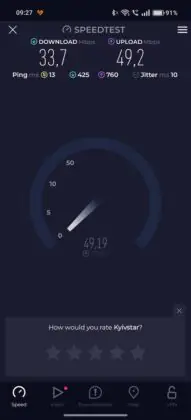

When testing the maximum performance of wireless Wi-Fi connections, factors like network density in the area must be taken into account. That’s why I ran tests on different channels and at different times of day to fully assess the router’s potential. Not even the concrete walls in my apartment interfered with the signal, which reached every corner. It felt as though two or three routers were working at once.
As you may already recall, I usually conduct all my tests in my apartment in Kharkiv. For testing the signal and its strength of this monster, I selected six control points:
- 1 meter from ASUS ZenWiFi BT10 (in one room)
- 3 meters from ASUS ZenWiFi BT10 (with 2 walls in the way)
- 10 meters from ASUS ZenWiFi BT10 (with 2 walls in the way)
- 15 meters from ASUS ZenWiFi BT10 (with 3 walls in the way)
- on the landing 20 meters from ASUS ZenWiFi BT10 (with 3 walls in the way)
- the first floor of the house 35 meters from ASUS ZenWiFi BT10 (with 10 walls in the way)

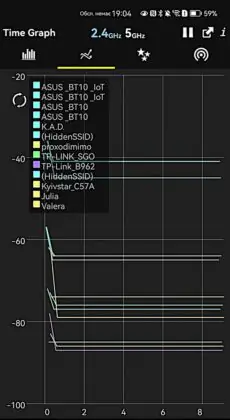

The test results speak for themselves: there were no issues with the connection or signal stability. It felt as if the router was always nearby. The signal was stable, with no drops or interruptions.
It’s also worth noting that ASUS’s new model handled the tasks effectively, even without support for Wi-Fi 7 and the new Multi-Link Operation and Multi-RU Puncturing features.

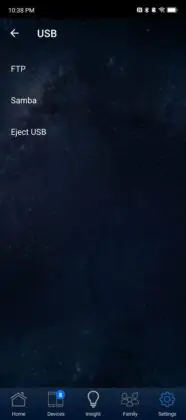

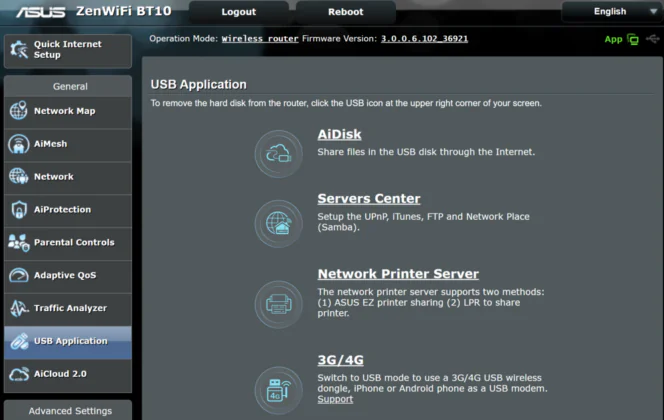

I also ran a few additional tests, checking the capabilities of the USB 3.0 Gen 1 Type A port. Its performance turned out to be very good, though not record-breaking. For a router, this is quite decent, as even USB 3.0 often doesn’t exceed 100 MB/s. On the other hand, one might expect higher speeds, but for routers, this result is fairly typical.
Any router operates 24/7, so energy consumption is an important factor. However, I have good news in this regard. Routers supporting the new Wi-Fi 7 standard are surprisingly energy-efficient, and the ASUS ZenWiFi BT10 is no exception.
The base station consumes only 3.9W during normal operation. Under heavy load, power consumption rises to around 4.5-5.0W. However, keep in mind that the additional module also requires about 3.5-3.8W of power.
It is also worth noting the lack of noise and heat from the ASUS ZenWiFi BT10. Even under load, the network device remained only slightly warm. This means that the absence of a fan did not affect the temperature management in any noticeable way.
Read also: Review of the ASUS ROG Zephyrus G16 2024 Gaming Laptop with AMD Ryzen AI 9 HX 370
Conclusions
I’ve tested many mesh systems, and each of them has its own unique features. I am often asked whether it’s worth buying such a mesh system if you live in a typical three- or four-room apartment. I still don’t have a definitive answer. However, one thing I can say for sure is that if you purchase the modern ASUS ZenWiFi BT10 router, you won’t face any Wi-Fi connection issues for at least the next 10 years. Yes, I’m not mistaken because we’re dealing with a state-of-the-art router that supports the latest Wi-Fi 7 standard.
The new router from ASUS provides an excellent network with high speeds, wide coverage, and stable signal reception. All parameters can be flexibly adjusted and configured, and users can combine base stations in different ways. Some might opt for a wired connection, while others may need a wireless bridge to connect two networks. Users have a broad range of options. Each of the two routers can be connected to a separate provider, allowing for load balancing or failover switching. With dual WAN, each router can use up to four external channels.
It is also worth noting the 6 GHz band, which is the most powerful in terms of both coverage and bandwidth. As you move farther from the router, the speed exceeds 2000 Mbps. This band provides a mesh connection of over 4 Gbps, surpassing the results of previous tests.
This Mesh system is designed for a broad audience. It will be particularly appealing to those with a private house or small office, but gamers will also appreciate it. You will definitely have no complaints about the performance of the ASUS ZenWiFi BT10.
For some, the high price may be a drawback, but trust me, the new model is worth every penny. If you’re looking for a state-of-the-art, compact Mesh system that provides high performance, fast and reliable connections, and stable signal coverage in every corner of a private home, apartment, or small office, I highly recommend the ASUS ZenWiFi BT10 – it’s definitely worth it.
Read also:
- ASUS TUF Gaming H1 Gen II Gaming Headset Review
- What to Choose: Old Gaming Laptop or New Ultrabook? A Look at ASUS Zenbook S 16
- ASUS TUF Gaming VG259Q3A Gaming Monitor Review
Advantages
- modern, compact design
- high quality materials and assembly
- high-performance quad-core processor
- uninterrupted operation of all communication modules
- excellent security tools and parental control
- performance with support for Wi-Fi 6E and Wi-Fi 7
- convenient ASUS Router mobile application
- possibility of more accurate configuration in the web interface
Drawbacks
- slightly lacking performance in the 2.4 GHz band
- rather high price
