This won’t be a deep dive into the ASUS Prime RTX 5060 Ti 16GB, but I’ll approach it the way I would if I were considering it for my own setup. Because when I’m choosing a graphics card, my priorities are pretty straightforward: video memory and codec support come first – everything else follows.
Performance is practically a given if the card is recent. Support for new technologies is also expected – DLSS 4, for instance, is available on the RTX 5090 and will likely show up even on a hypothetical RTX 5050 with, say, just 6 GB of VRAM. As for power efficiency, it usually scales inversely with price. After all, when was the last time you saw a budget GPU consume more power than a high-end one – within the same generation, that is?
Technical characteristics
- Capacity: 758 TOPs
- Bus: PCI Express 5.0
- Video memory: 16 GB GDDR7
- CUDA cores: 4608
- Memory speed: 28 GB
- Memory bus: 128 bit
- Connectors: HDMI 2.1b, 3×DisplayPort 2.1b
- HDCP support: yes, 2.3
- Dimensions: 304×120×50 mm
- Recommended PSU power: 550W
- Power supply: 6+2 pin
- Dimensions: 2.5 slots
- SFF-ready: yes
Video review of ASUS Prime RTX 5060 Ti 16GB
Positioning
Within the RTX Blackwell lineup, the 5060 Ti 16GB is currently my only realistic choice. The next step up for me would be the RTX 5090 – but that’s something I’m thinking about maybe three or four years down the line. Right now, the 5060 Ti is available and accessible (about $600 in assembly). And given how much AMD’s RX 9000 launch disrupted NVIDIA’s position, there’s a good chance we’ll see further price drops. Then again, that’s not guaranteed – tariffs and other external factors could still influence pricing.
I won’t go into NVIDIA’s less-than-consumer-friendly decisions, or into the 8GB versions of the RTX 5060 and 5060 Ti – let’s just say, if you can’t say anything good, it’s better to say nothing at all. If you’re specifically looking for an 8GB card, consider the ASUS RTX 4060 Dual. It’s a solid option and still holds up well.
General description and advantages
So, what does the RTX 5060 Ti bring to the table? In terms of performance, it lands roughly on par with the RTX 4070 – just about 5% behind in most cases. At the time of writing, though, the price difference between the two ranges from $50 to $240 in favor of the newer card, making the 5060 Ti a more cost-effective choice overall.

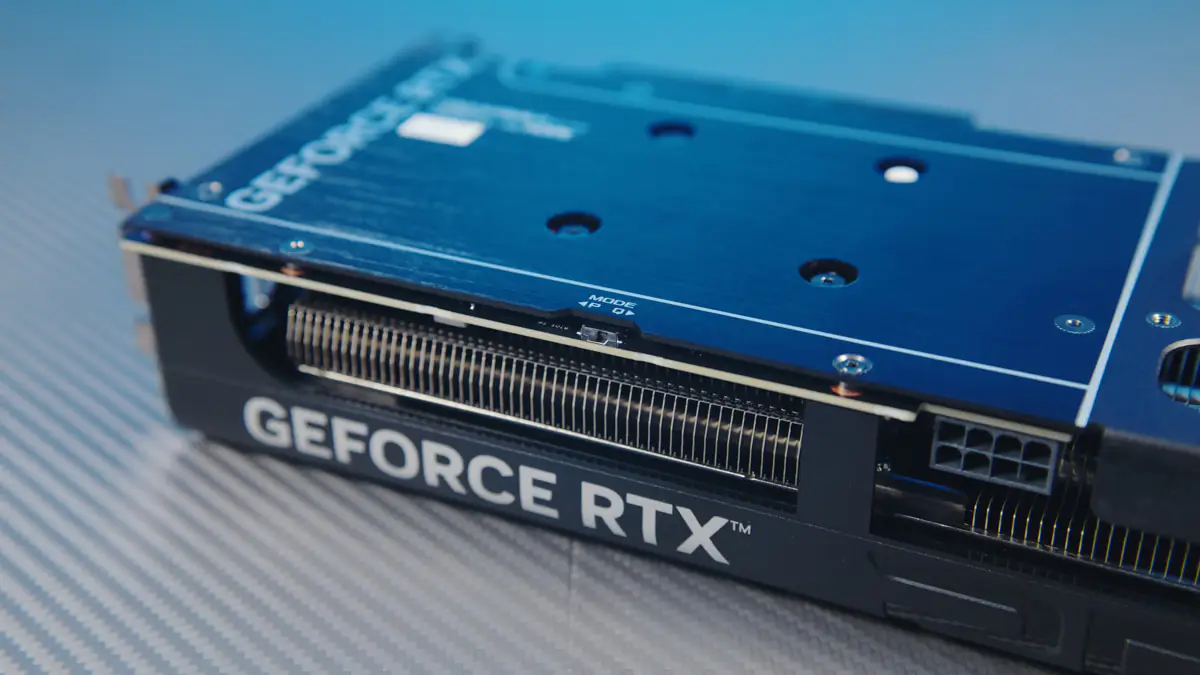

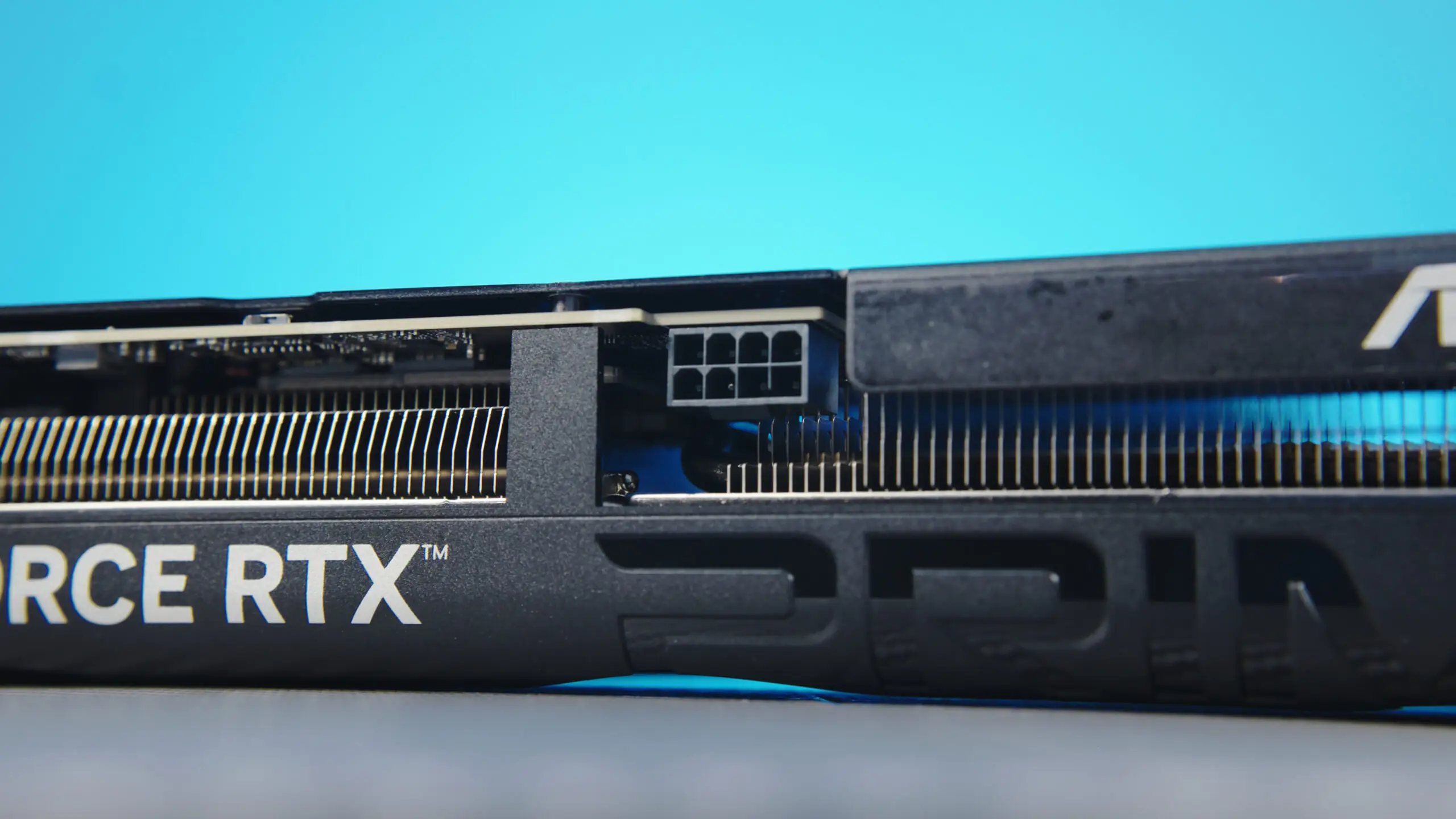

However, the newer card comes with 50% more video memory, lower power consumption, and ditches the 12VHPWR connector in favor of a standard 6+2 pin – which is a relief for many builds. On top of that, it benefits from a full stack of Blackwell architecture improvements, which bring a range of practical advantages to the table.
That means new codecs available across the board, upgraded AI engines aimed at creators, DLSS 4 support for gamers, and more – all included out of the box.

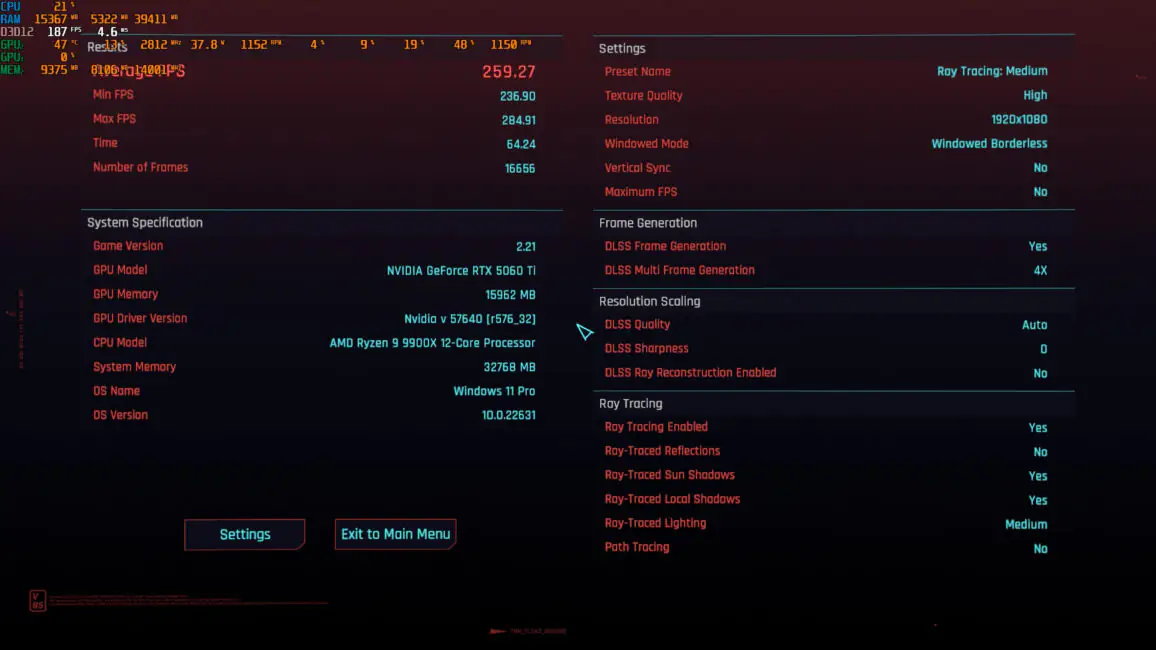

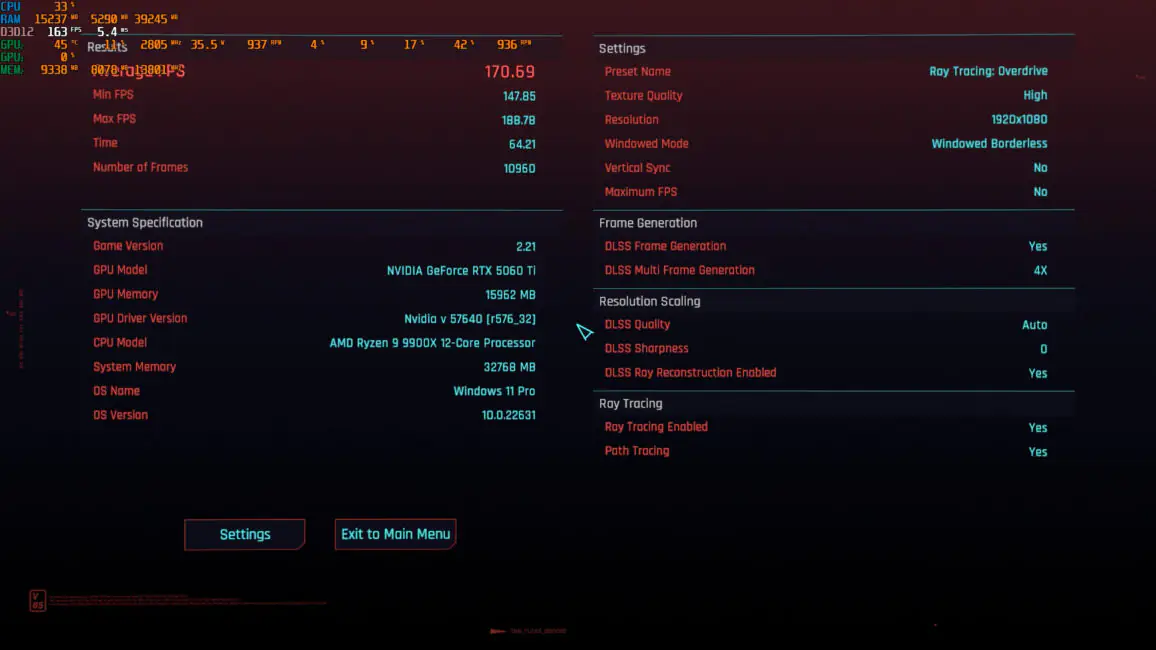

Specifically, DLSS Frame Generation – which I demonstrated in a laptop review with RTX Blackwell – is a game-changer. It can boost FPS by up to four times in Cyberpunk 2077. So, regardless of the usual complaints, if you start at 60 FPS with a certain input lag, then hit the “increase my FPS” button and end up with input lag similar to 50 FPS but see over 250 frames on screen, I’d call that a clear advantage and a notable win overall.

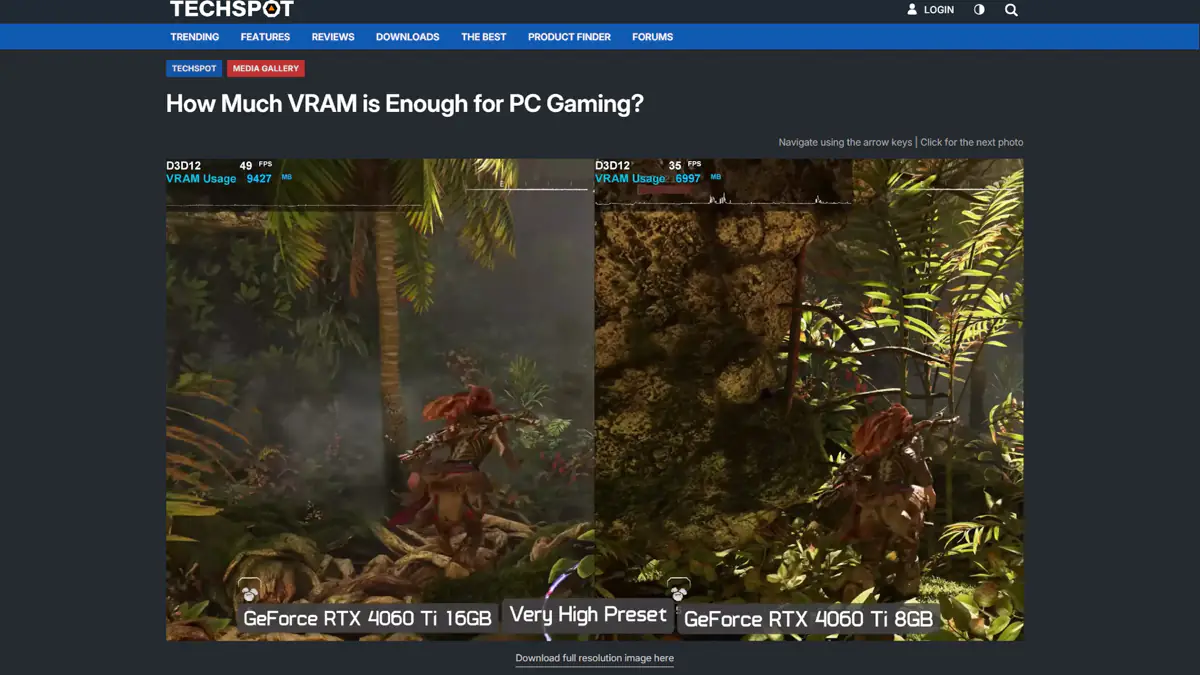

In practical terms, the RTX 5060 Ti has the potential to become the next RTX 3060 12GB – a card that remains a solid recommendation even five years after release, and one you might suggest over a 10GB RTX 3080. The reason is straightforward: if you don’t have enough VRAM for modern games, raw GPU power won’t help. Modern titles, even at low settings, keep demanding more memory, and the 3060 has a comfortable 2GB buffer in that regard – something the 3080’s 10GB configuration lacks.
As for the ASUS PRIME RTX 5060 Ti 16GB – it’s arguably the most sensible Blackwell-based option available right now. For me, it’s the clear pick for both Full HD and even 1440p gaming. More importantly, it also makes a strong case for creative workloads, including AI tasks and video editing.
Specifications and design

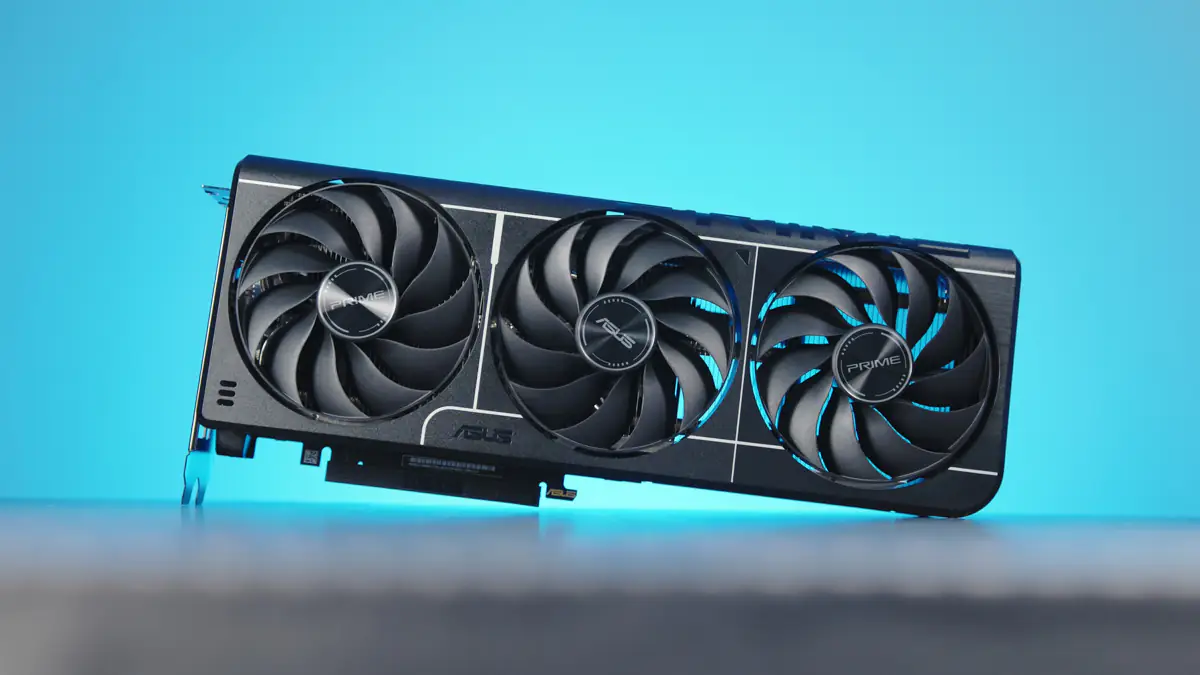

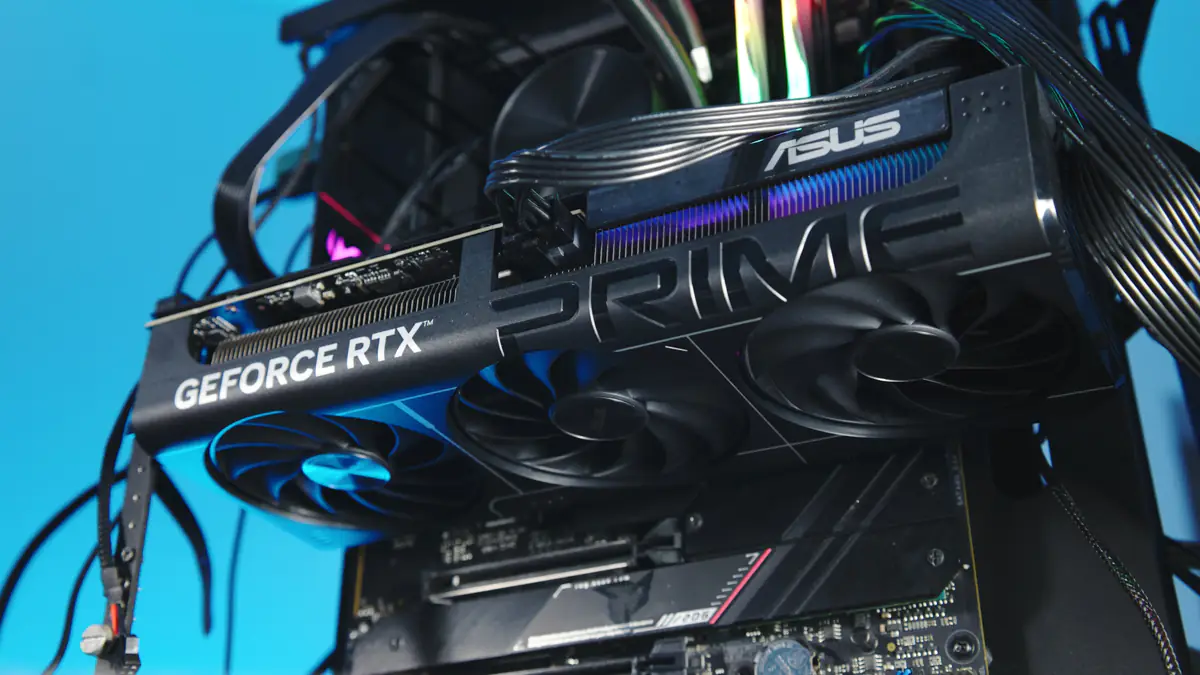

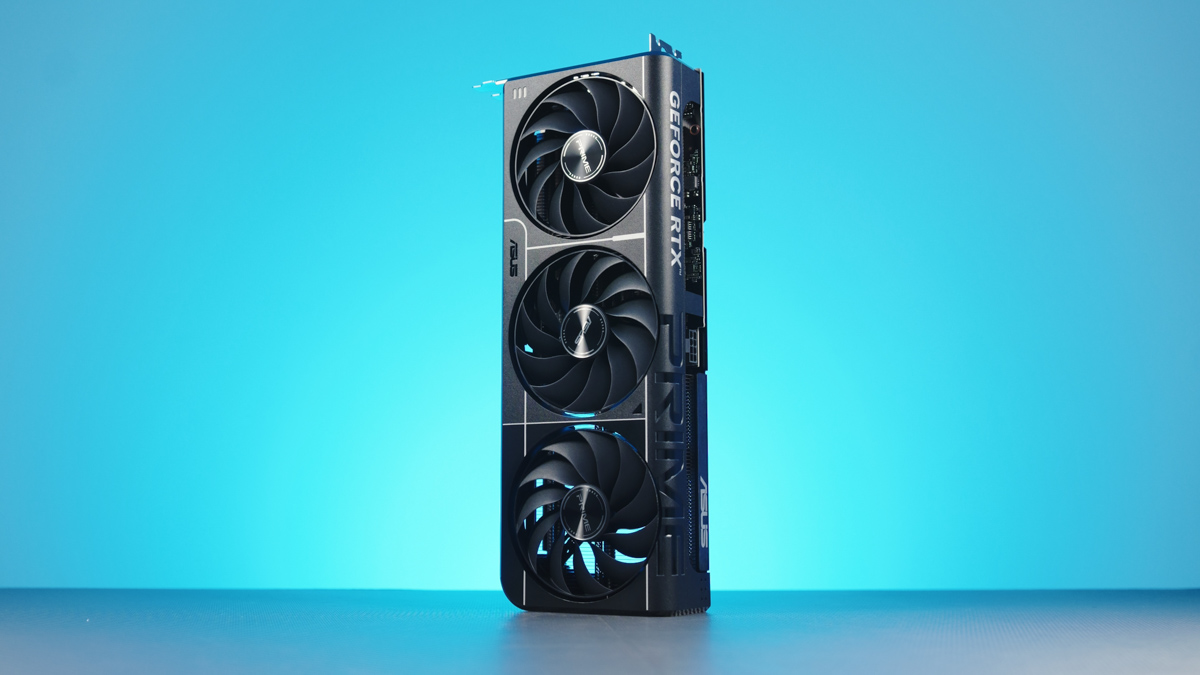

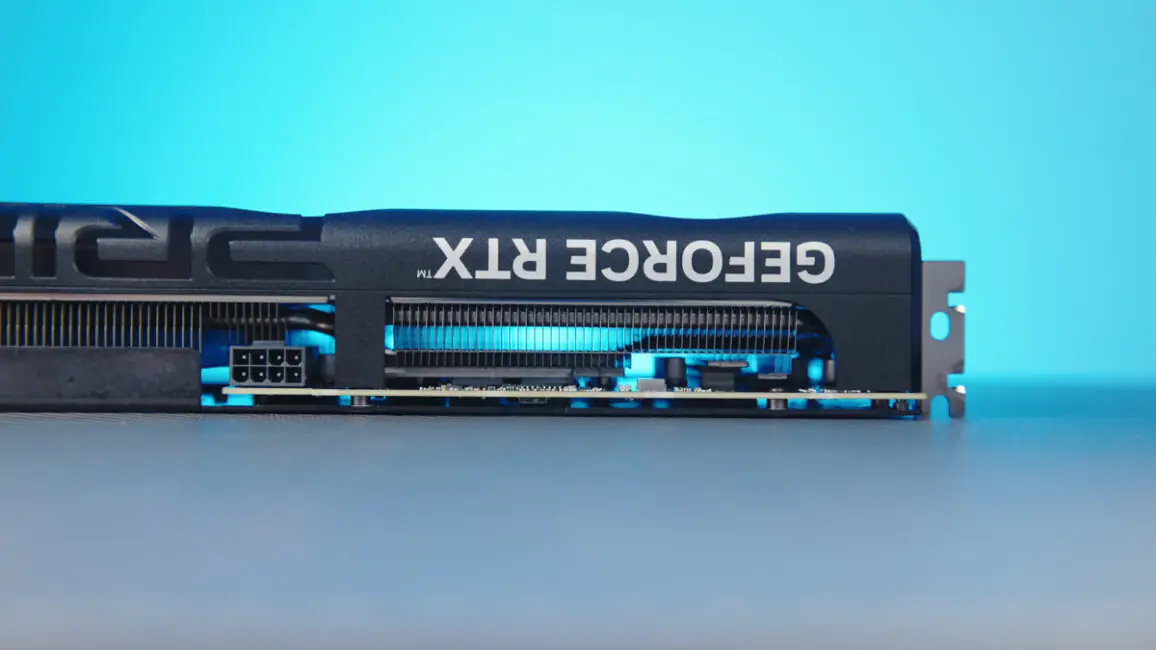

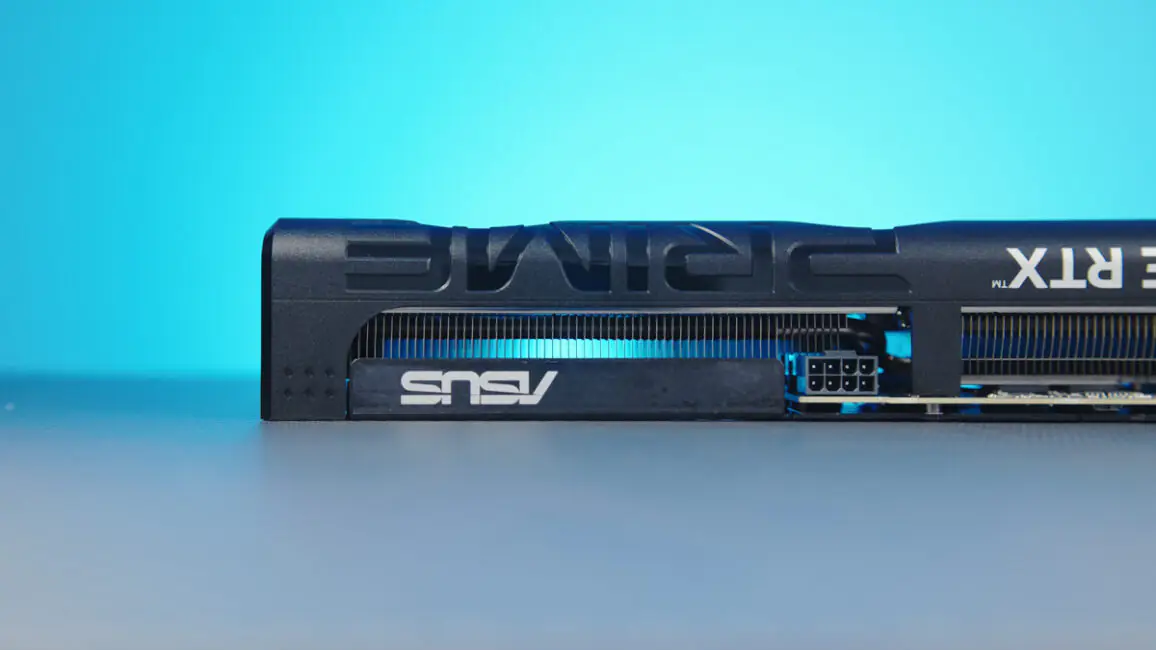

Looking specifically at the ASUS Prime RTX 5060 Ti 16GB, the card features a triple-fan cooling system and takes up 2.5 slots in width – which in practice is closer to three. That said, if you’re planning a dual-GPU setup using LSFG, that half-slot margin might actually make the difference and give you just enough clearance.
Another plus: the card is compatible with small form factor (SFF) builds and only requires a power supply rated at 550W or higher. That makes it a practical option for compact systems without demanding high-end PSU specs.

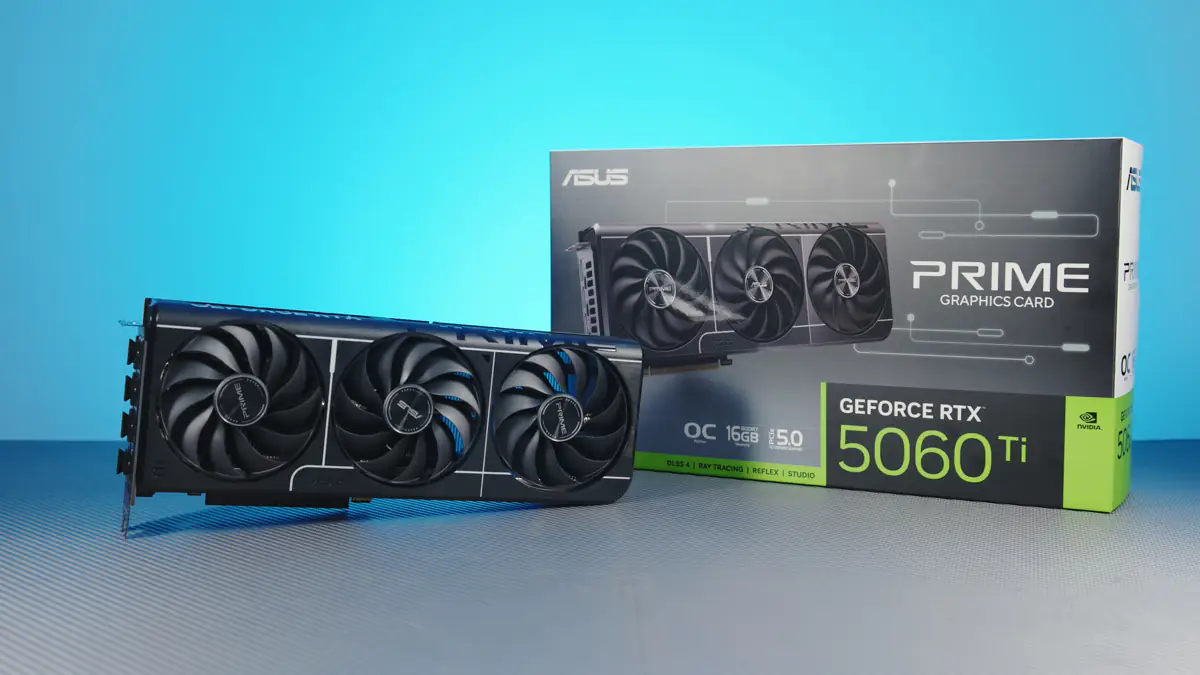

The card also includes a dual BIOS setup and supports a Zero RPM mode – something not mentioned on the box but clearly listed on the official website.
What might not appeal to everyone? There’s no RGB lighting, it only has a single HDMI port, and due to high demand, the 16GB versions can be harder to find. If you’re looking for an 8GB card, you’ll likely have an easier time finding options.
Conclusions
There’s one important compliment I can give this graphics card: I would want it in my personal PC – or even in a laptop. In a laptop, this card would be especially impressive for both gaming and work, particularly when you consider the pricing of Blackwell-based laptops right now.
Do I recommend it? For those who still believe the 10GB RTX 3080 outperforms the 12GB RTX 3060 – no, I wouldn’t recommend it. For everyone else, yes, I’m happy to recommend the ASUS Prime RTX 5060 Ti 16GB.
