10 common mistakes when compiling a PC

Building a PC today is considerably easier than it was a decade ago. The range of available components has expanded significantly, and there is no shortage of online resources, including written guides, video tutorials, and AI-assisted support. Even so, common assembly mistakes still occur, including among experienced builders, often due to rushing, overlooking small details, or limited hands-on experience. This article examines ten of the most common mistakes and explains how to avoid them before starting your build.

TABLE OF CONTENTS:

Component Compatibility

One of the most frustrating issues during a PC build is discovering that the system cannot be assembled because of physical or technical incompatibilities between components. The most common problems involve platform selection, power requirements, or form factor. For example, a high-performance graphics card may be fully compatible with the motherboard but still be too large to fit inside a compact case. There are also cases of partial compatibility, where components work together but cannot operate at their full capabilities. For instance, high-speed DDR5 memory may run at a lower frequency due to motherboard limitations, while a PCIe 5.0 SSD may operate at PCIe 4.0 speeds if the platform does not support the newer standard.

How to avoid compatibility issues during the planning stage:

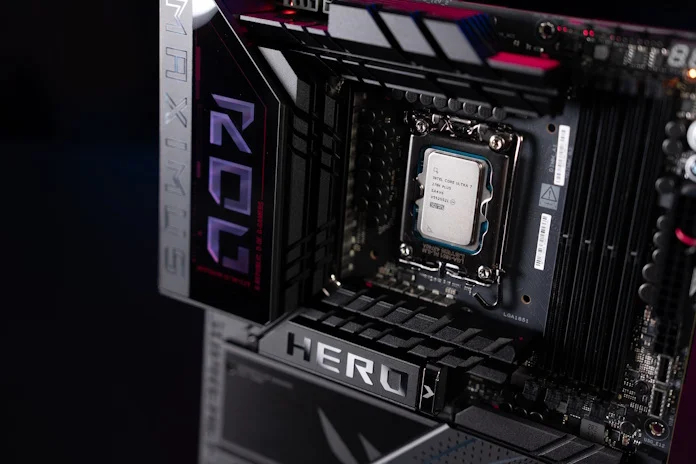

Carefully verify compatibility between the CPU, motherboard socket, and memory type.
Check the dimensions of the graphics card, AIO radiator, or CPU air cooler against the available clearance inside the case before purchasing the components.
Always consult the motherboard manufacturer’s Qualified Vendor List (QVL) before purchasing memory to confirm compatibility with your chosen RAM kit.

Incorrect Case Fan Installation

An improperly configured airflow layout is a common mistake, even among experienced PC builders. Reversing the direction of just one case fan can disrupt airflow and create recirculation inside the case, reducing overall cooling efficiency. A standard airflow configuration follows a simple principle: front-mounted fans act as intakes, drawing cool air into the case, while rear and top-mounted fans serve as exhausts, expelling warm air from the system.

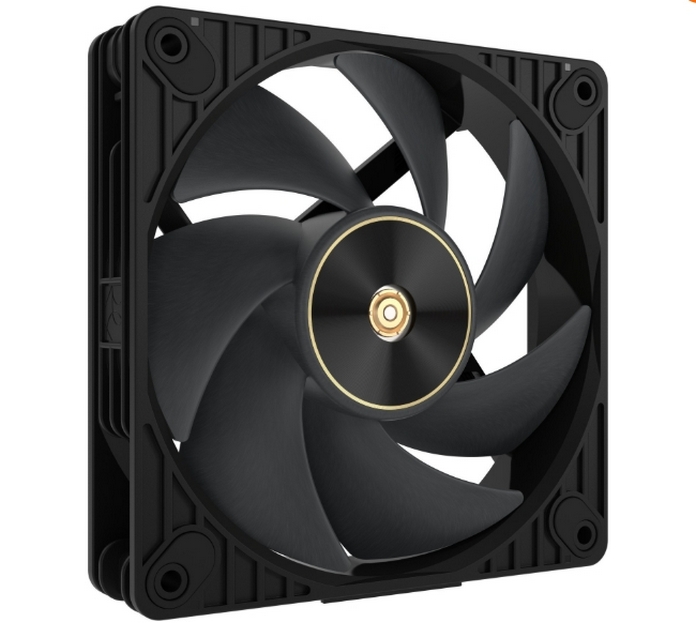

Effective airflow is particularly important in modern systems equipped with high-performance CPUs and graphics cards that generate significant amounts of heat. However, even a basic setup with three quality case fans, such as the ASUS ProArt PF120, mounted as front intakes can make a substantial difference in reducing operating temperatures.

Insufficient CPU Cooling

Another common mistake is pairing a high-performance processor with an inadequate cooling solution. Even mid-range CPUs generate considerably more heat under load than they did a few years ago. During demanding workloads, such as modern games or professional applications, CPU temperatures can easily exceed 80–90°C. .

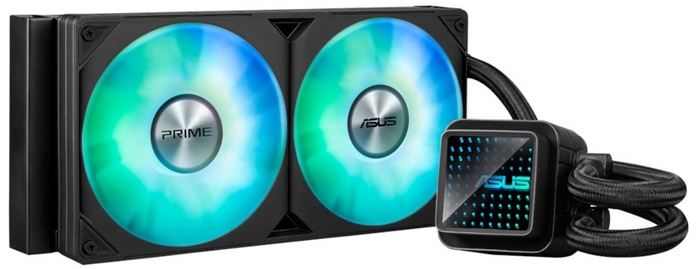

In most cases, a compact 240 mm all-in-one (AIO) liquid cooler, such as the ASUS Prime LC 240, is sufficient for stable operation. For higher thermal loads, an affordable 360 mm solution like the ASUS TUF Gaming LC II 360 ARGB provides additional cooling capacity without requiring a premium investment.

Incorrect Thermal Paste Application

Despite the abundance of tutorials available today, improper thermal paste application remains a common mistake. A frequent issue is applying either too little or too much paste. An insufficient amount reduces heat transfer between the CPU and the cooler, while excessive paste may spread beyond the integrated heat spreader and potentially contaminate the CPU socket or surrounding components.

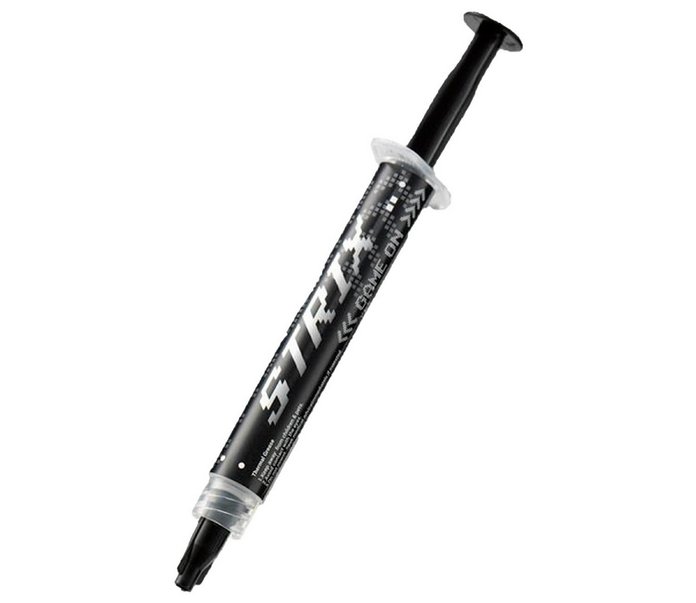

In most cases, a small pea-sized drop applied to the center of the CPU is sufficient for standard processors. Quality thermal compounds, such as ROG Strix RG-05, tend to spread evenly across the surface under the pressure of the cooling solution’s contact plate.

Forgotten Protective Film on the Cooler Base

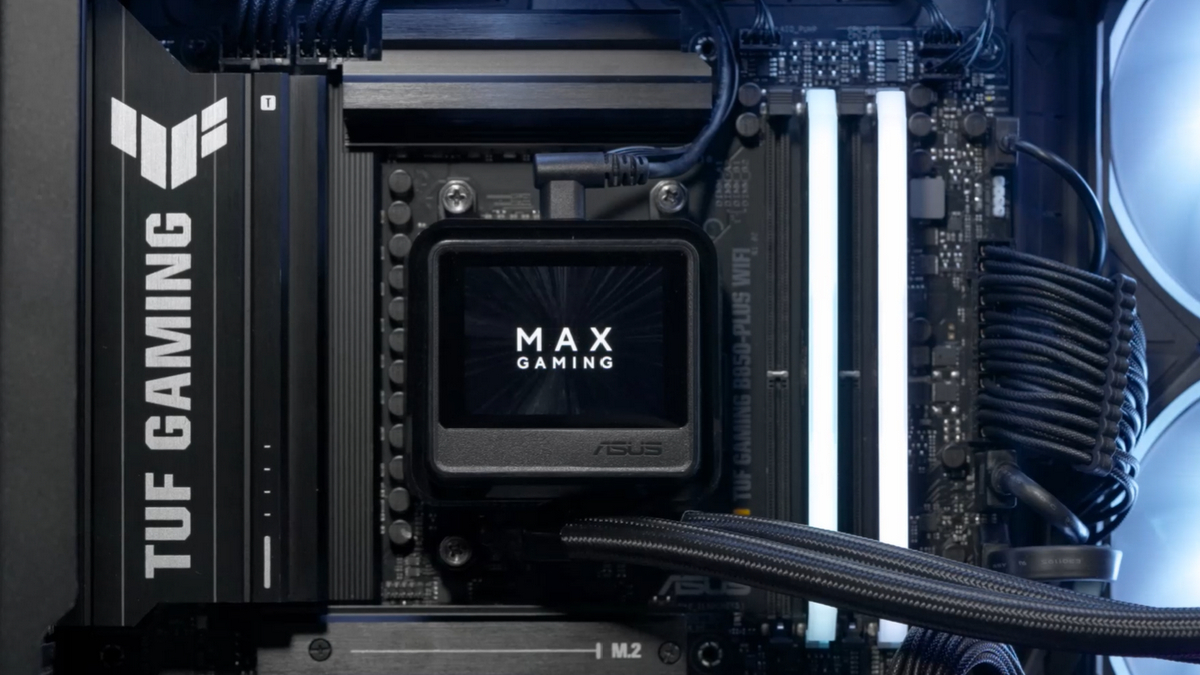

One of the most basic yet surprisingly common mistakes is failing to remove the transparent protective film from the contact surface of the CPU cooler or AIO water block. In such cases, the system may still boot normally, but under load CPU temperatures can rise almost instantly to abnormal levels due to the absence of proper metal-to-metal contact.

Undersized or Low-Quality Power Supply Unit

The power supply unit (PSU) is one of the most critical components in a PC system, although it is often considered only at the end of the build process. It is responsible for the stability and safety of all hardware, and cutting costs in this area can lead to serious issues. An insufficiently rated PSU can cause system instability, unexpected reboots, or shutdowns under load. In the worst cases, a low-quality unit may damage other expensive components. It is generally recommended to choose a PSU with a power headroom of around 20–30%, ensuring the system can handle peak loads comfortably and allowing room for future upgrades.

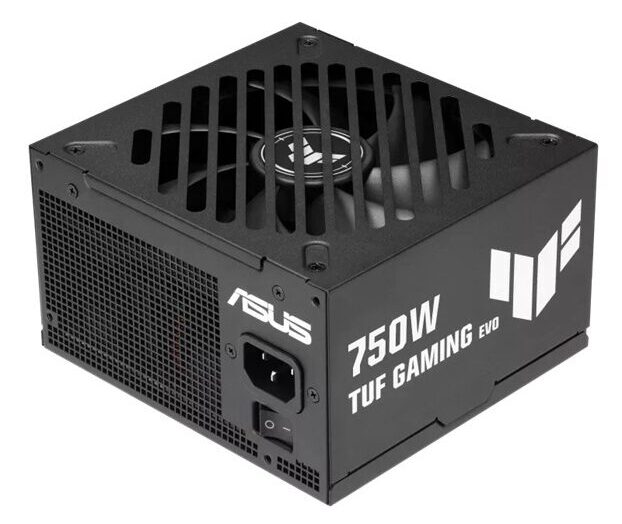

For most modern mid-range builds, the ASUS TUF 750 EVO is a suitable choice. It provides sufficient power output, 80 PLUS Gold and Cybenetics Gold efficiency ratings, and is built to meet the durability testing standards associated with the TUF series.

Incorrect Power Cable Connections

Another common issue involves mistakes when selecting and connecting power cables and connectors. This is particularly relevant for modern graphics cards, which may require newer power standards or multiple separate power lines. An incorrectly connected or low-quality cable can potentially damage the graphics adapter or other components in the system.

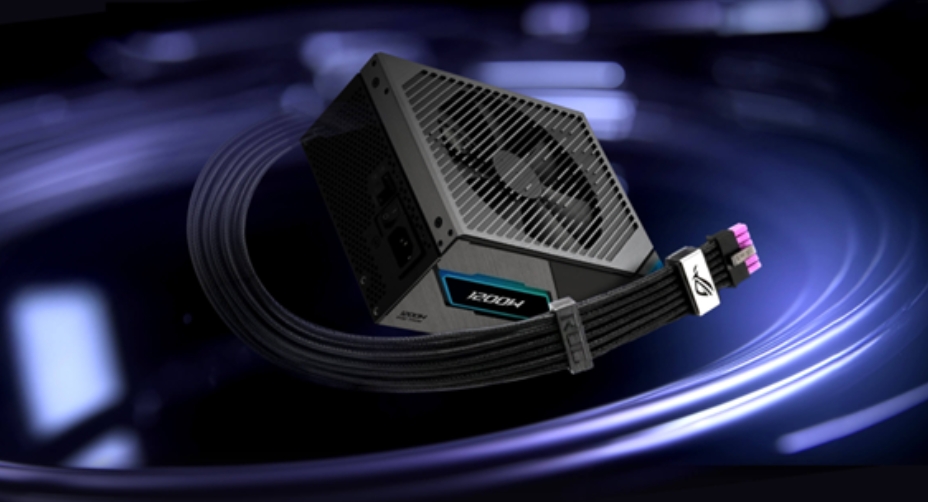

In high-end systems with power-hungry graphics cards, specialized power cable solutions such as ASUS ROG Equalizer are sometimes used. They are designed to support stable power delivery under sustained high load conditions and to improve electrical reliability during peak consumption. However, their function is limited to power transmission. They do not provide temperature monitoring or any form of thermal control for the graphics card, and their impact on system thermals is indirect at best.

Lack of a GPU Support Bracket

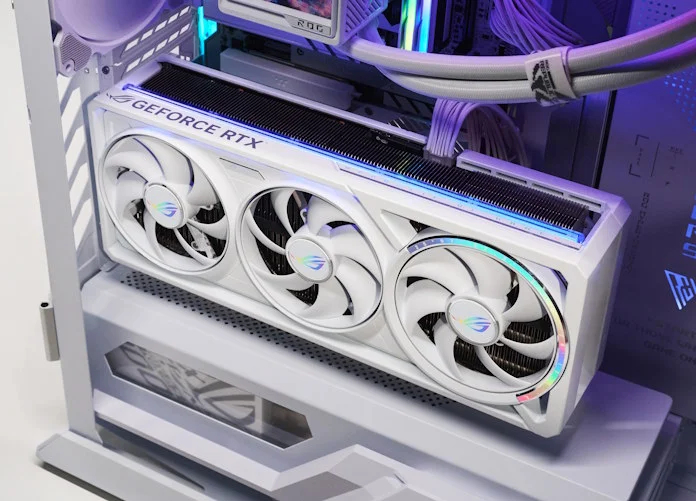

Modern graphics cards have become significantly larger and heavier, particularly high-end models equipped with massive triple-slot cooling solutions. Even when reinforced PCIe slots are used on the motherboard, the weight of the GPU can cause gradual sagging over time. In some cases, this may lead to physical stress on the PCB, including potential deformation of the board or damage to the PCIe connector.

For graphics cards at the level of GeForce RTX 5070 Ti and above, a dedicated support bracket has effectively become a standard accessory. It is often included in the box and may also serve additional purposes, such as the stand/screwdriver combination tool bundled with ASUS TUF Gaming and ROG graphics cards. There are also standalone solutions, such as the ROG Herculx. Such brackets not only provide stable physical support for heavy GPUs but can also function as a visual element within the overall PC build design.

Incorrect RAM Installation

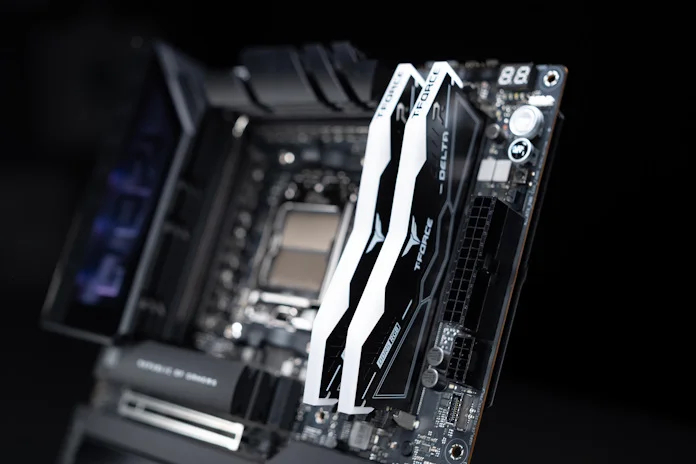

Physically installing memory modules is usually straightforward, but users often make mistakes when selecting the correct memory slots. If two modules are placed in adjacent slots, the system may run in single-channel mode instead of dual-channel. This significantly reduces memory bandwidth and lowers overall performance, particularly in games and workloads that are sensitive to memory speed. On most motherboards, enabling dual-channel mode requires installing the modules in alternating slots – typically the second and fourth DIMM slots.

Unbalanced Configuration

Even when all selected components are technically compatible, the overall system can still be unbalanced. A typical example is pairing a low-end CPU with a high-end GPU (or the opposite), where one component becomes a bottleneck for the other and limits overall performance. This imbalance can also involve other parts of the system: slow memory, an underperforming SSD, or a budget motherboard with an insufficient power delivery subsystem (VRM) for a high-power CPU. As a result, the total system cost may be high, while the actual performance gain remains below expectations.

How do you strike a balance? Use the recommended system requirements for modern games and professional photo-editing or video-editing software as a guide.
