UGREEN Maxidok Thunderbolt 5 Docks review: the end of desktop compromise

Let us be honest for a second: docking stations are rarely thrilling. They are utilitarian metal boxes that sit on a desk, manage a spaghetti monster of cables, and generally exist to be forgotten. For the last few years, we have been trapped in the 40Gbps bottleneck of Thunderbolt 3 and Thunderbolt 4, carefully calculating bandwidth like we were rationing water in a desert. If you wanted to run dual high-resolution monitors, you had to accept that your external SSD might suffer a speed penalty. That era of compromise is officially dead. UGREEN has arrived with its new Maxidok series, specifically the 17-in-1 and 10-in-1 Thunderbolt 5 Docking Stations, and they are essentially demanding that you throw every power-hungry peripheral you own at them.

Thunderbolt 5 is not just a minor, iterative spec bump; it is a fundamental shift in how we build our desktop ecosystems. We are now looking at a staggering 120 Gbps of bandwidth, completely rewriting the rules of what a single cable can achieve. UGREEN has clearly designed the Maxidok line to be the absolute center of gravity for a modern workstation. These are not flimsy travel hubs you toss into the bottom of a backpack on your way to a coffee shop. They are monolithic desktop commanders engineered for video editors, 3D artists, and anyone who has spent the last half-decade tired of dongle life.

TABLE OF CONTENTS:

Design and Build: Heavy Metal

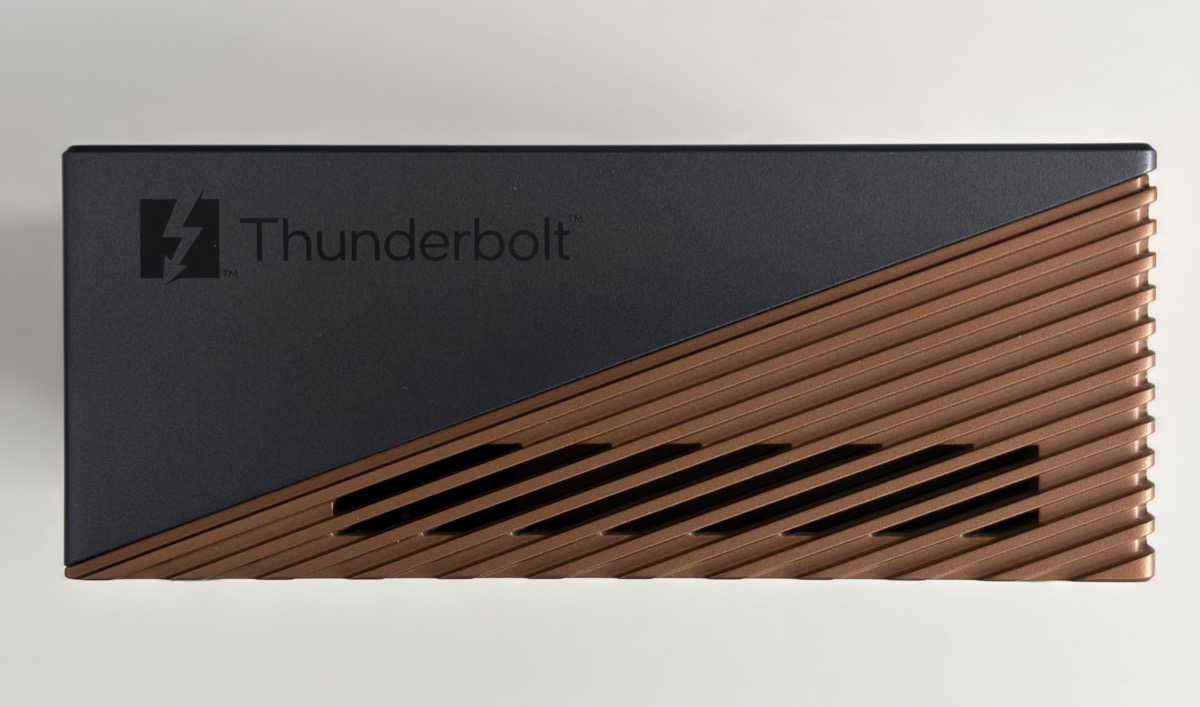

When you pull the flagship Maxidok 17-in-1 out of its packaging, the first thing you notice is the sheer, undeniable density of the thing. Clocking in at roughly the size of a Mac mini, UGREEN opted for a robust zinc alloy housing that feels less like a computer accessory and more like a piece of high-end, audiophile-grade equipment that reminds me of Fosi Audio. It features a striking two-tone design, splitting the chassis into a sleek grey front section and a striking copper-colored rear. This structural heft is crucial because pushing massive amounts of data and over a hundred watts of power generates a significant, inescapable thermal load.

To manage this heat without sounding like a jet engine, UGREEN implemented a sophisticated cooling system inside the 17-in-1 chassis. The finned pattern on the rear handles passive cooling, while an internal fan kicks on to provide active cooling when the thermal load demands it. During normal web browsing, answering emails, or writing scripts, the dock remains incredibly quiet. Even under heavy use, while it definitely gets warm to the touch, it avoids reaching obscenely hot temperatures that would cause concern for your desk surface or the longevity of the components inside. The 10-in-1 model shares a similar premium aesthetic and metallic finish, though it naturally lacks the sheer physical footprint and the active cooling fan of its bigger sibling. Both devices look incredibly sleek on a desk, perfectly complementing modern premium laptops from Apple, Dell, and Lenovo.

The 17-in-1 Maxidok: Everything Everywhere All At Once

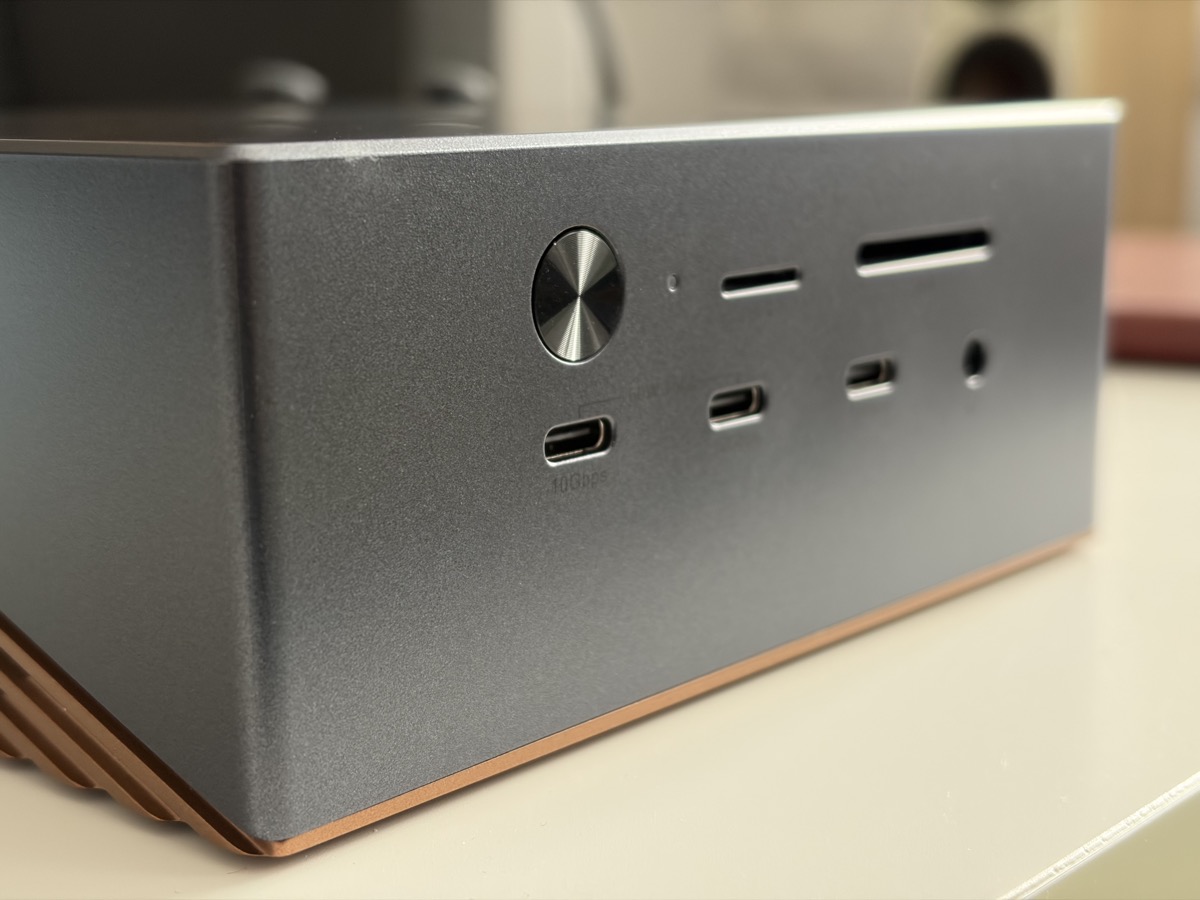

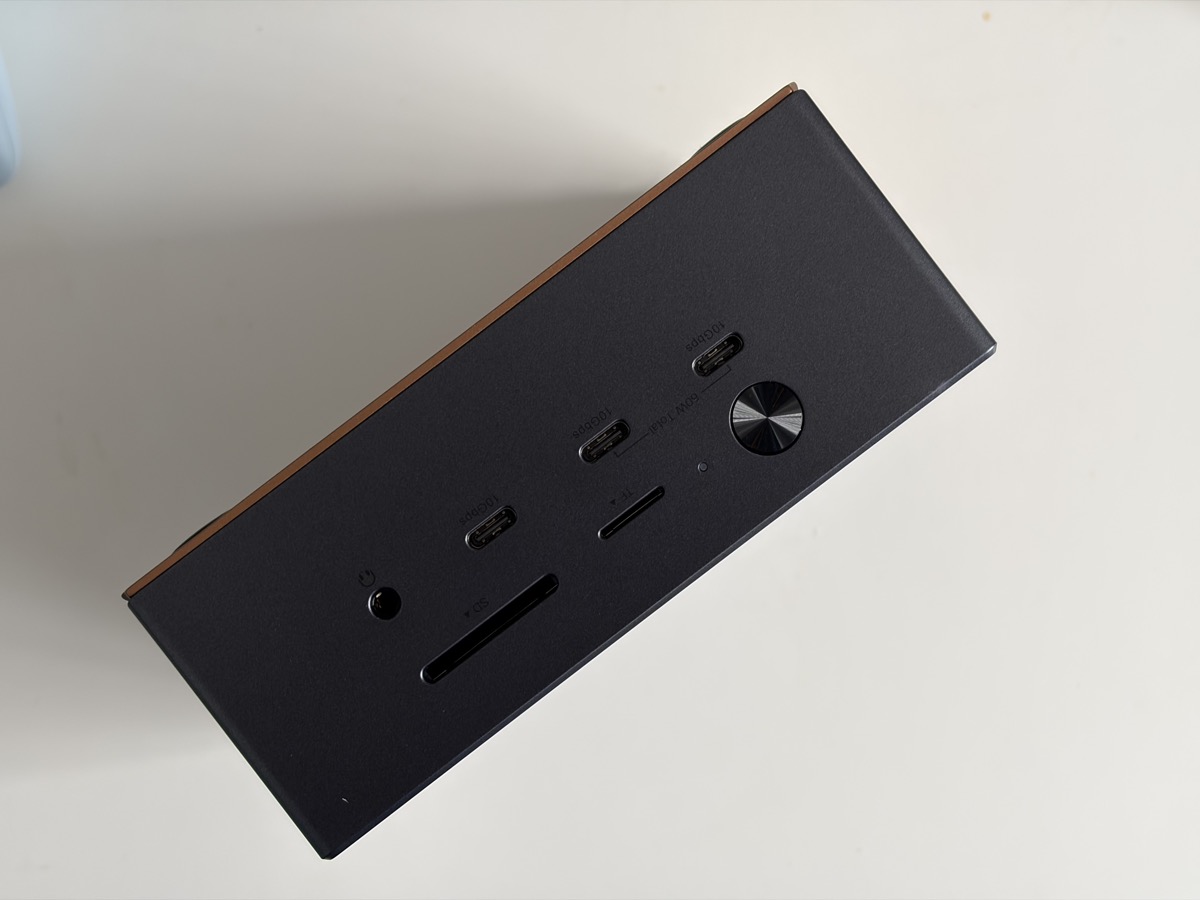

Let us talk about the star of the show, the 17-in-1 Maxidok. Retailing at $549, UGREEN has effectively thrown the kitchen sink at this device, creating one of the most feature-rich docking stations currently on the market. As the name implies, there are seventeen distinct options for connecting your gear, and the thoughtful layout makes the dock remarkably compelling to use on a daily basis. On the front panel, you are greeted with a dedicated power button, SD and microSD card slots capable of hitting 312 MB/s, a 3.5mm audio jack, and three USB 3.2 Type-C ports rated for 10Gbps. Two of those front-facing USB-C ports even support a total maximum charging output of up to 60W, making it incredibly easy to fast-charge an iPad, a drone battery, or a mirrorless camera without having to awkwardly reach around to the back of the unit.

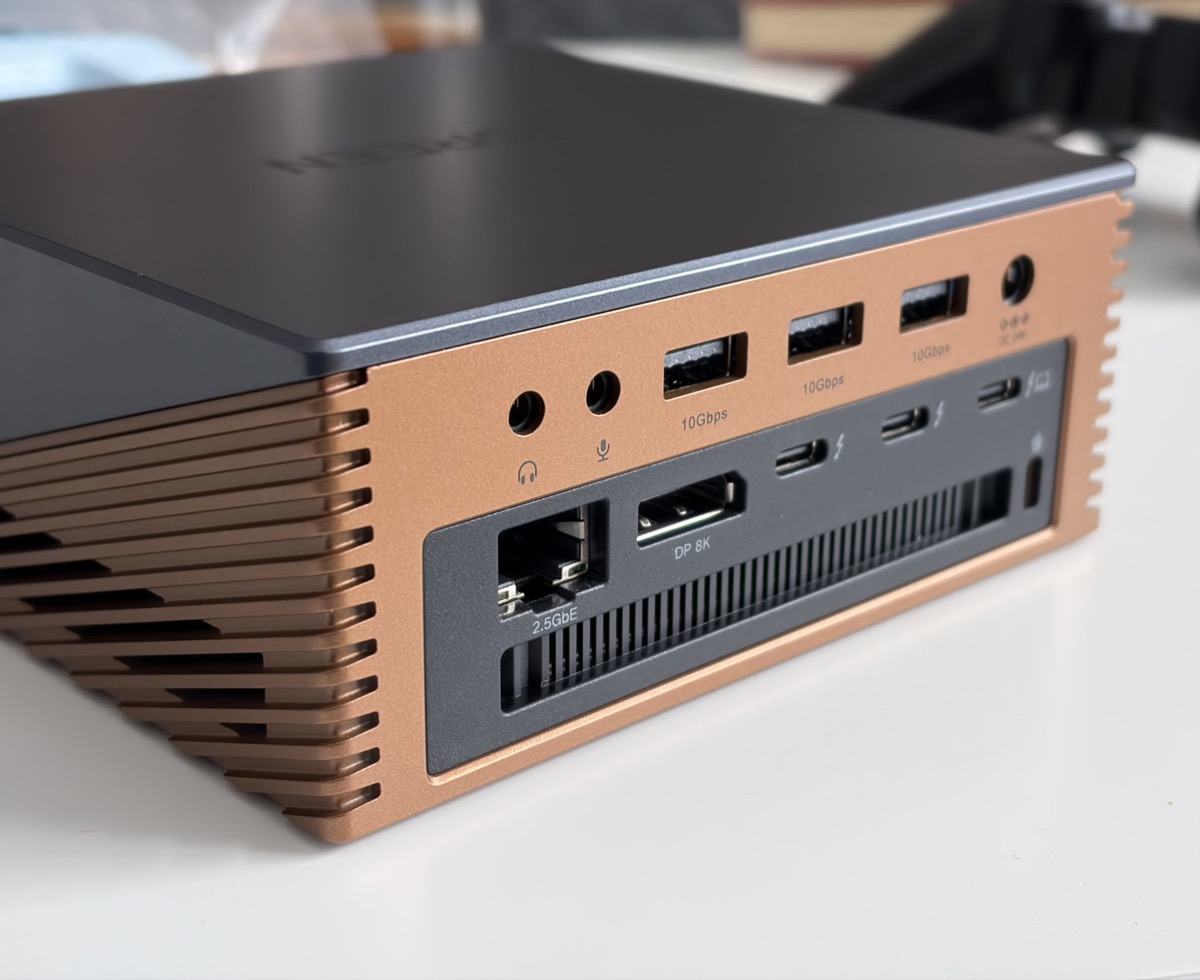

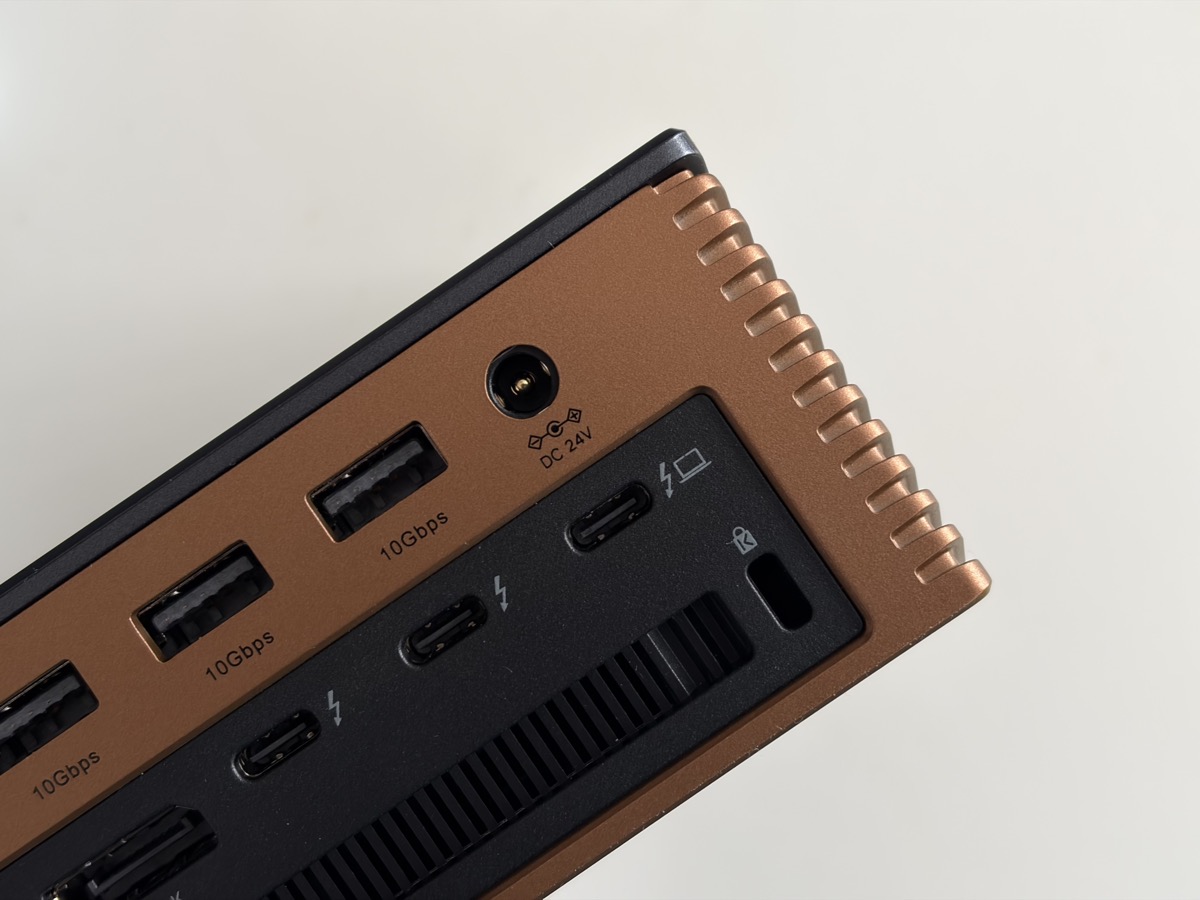

The back of the dock, however, is where the real magic happens. You get a DC input for the massive 240W power supply, three Thunderbolt 5 ports, three 10Gbps USB-A ports, two additional 3.5mm audio jacks, a dedicated DisplayPort, and a blisteringly fast 2.5GbE Ethernet port. One of those Thunderbolt 5 ports connects directly to your host laptop, delivering a staggering 140W of passthrough power. That is enough juice to fast-charge even the most demanding workstations, like the 16-inch MacBook Pro, under a heavy rendering load, drastically cutting down on the cable clutter of needing a separate charging brick. The two downstream Thunderbolt 5 ports provide 15W of power each, which is perfect for driving portable monitors.

The absolute killer feature of the 17-in-1 is something entirely unexpected: an integrated M.2 NVMe SSD slot located cleanly on the bottom of the unit. Pop open a concealed panel – which smartly features a built-in passive radiator to keep drive temperatures in check – and you can drop in a high-speed PCIe Gen4 x4 drive with a capacity of up to 8TB. This single inclusion fundamentally changes the value proposition of the entire device. Instead of cluttering your workspace with a docking station, a separate external SSD enclosure, and the tangled mess of cables required to connect them, everything is cleanly contained within one sleek box. Because it operates over the immense bandwidth of Thunderbolt 5, the internal drive acts essentially like your laptop’s native storage. It is wildly fast, completely reliable, and perfect for caching massive video timelines or storing sprawling sample libraries.

The 10-in-1 Maxidok: The Sensible Sibling

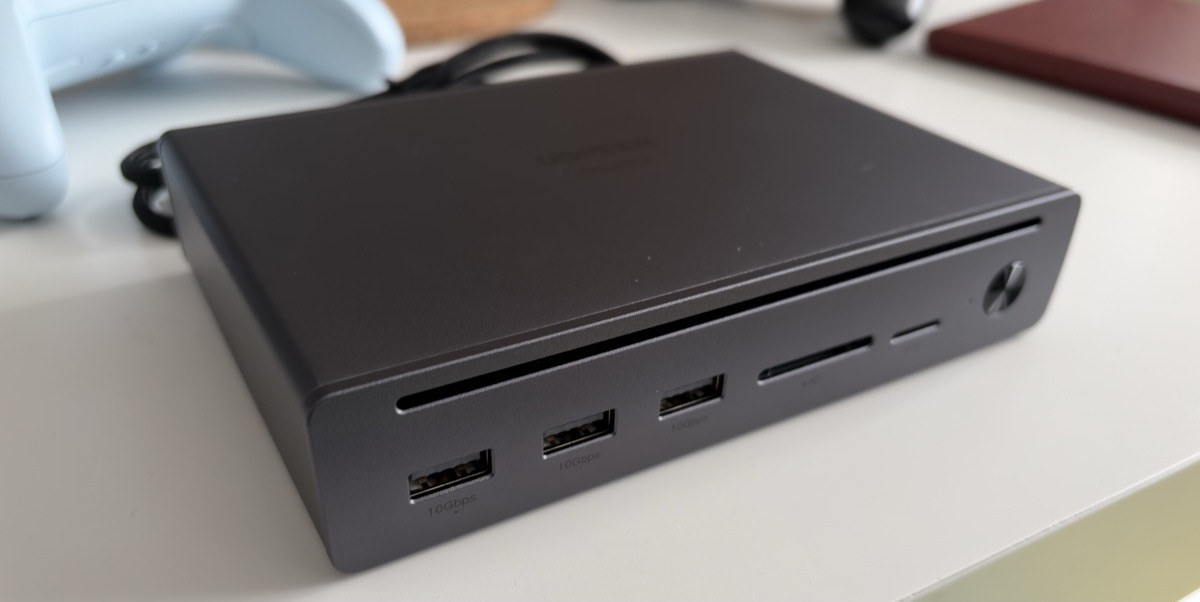

Of course, not everyone needs seventeen separate ports, 2.5GbE networking, and built-in NVMe storage. That is exactly where the Maxidok 10-in-1 comes into play, dropping the price significantly while retaining the core generational leap of Thunderbolt 5. Retailing at a more palatable $329, the smaller model offers the exact same next-generation speeds but trims the fat for a much more streamlined desktop setup. It relies on a smaller 140W power adapter and provides up to 110W of passthrough charging to your host laptop via a built-in Thunderbolt 5 cable, which is still more than ample for the vast majority of laptops on the market today.

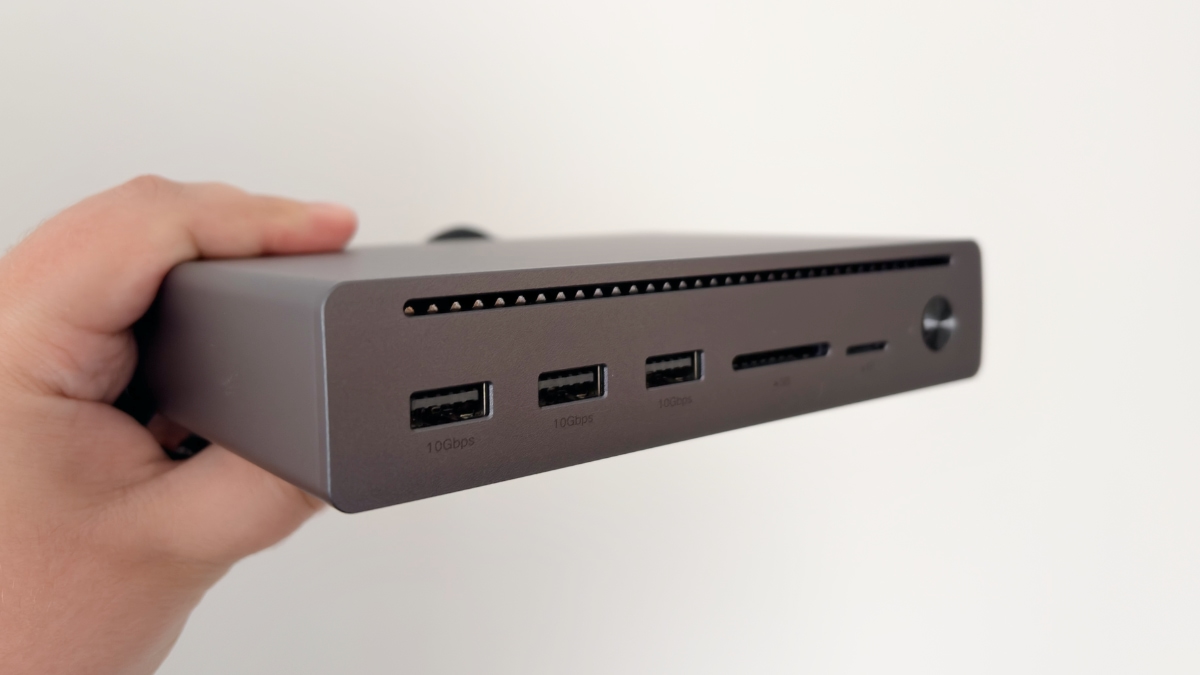

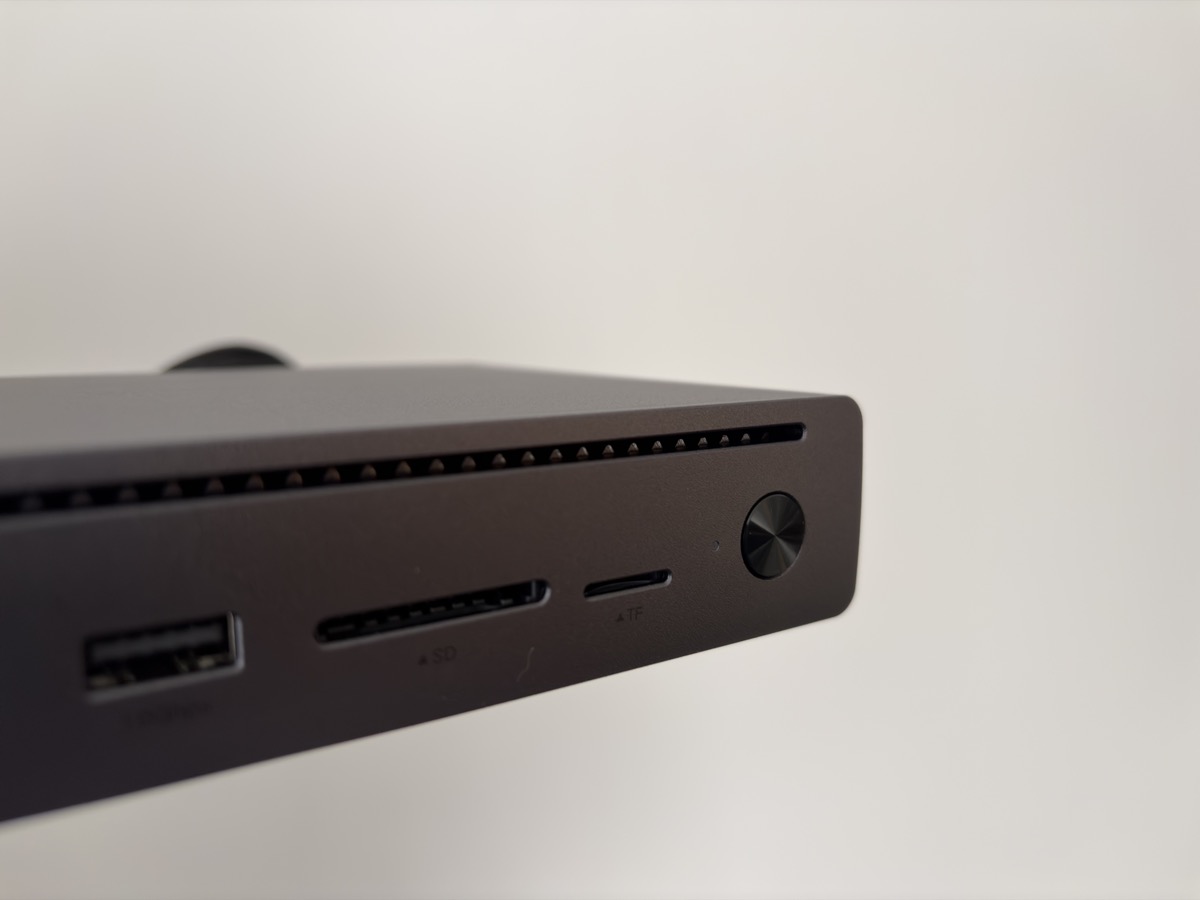

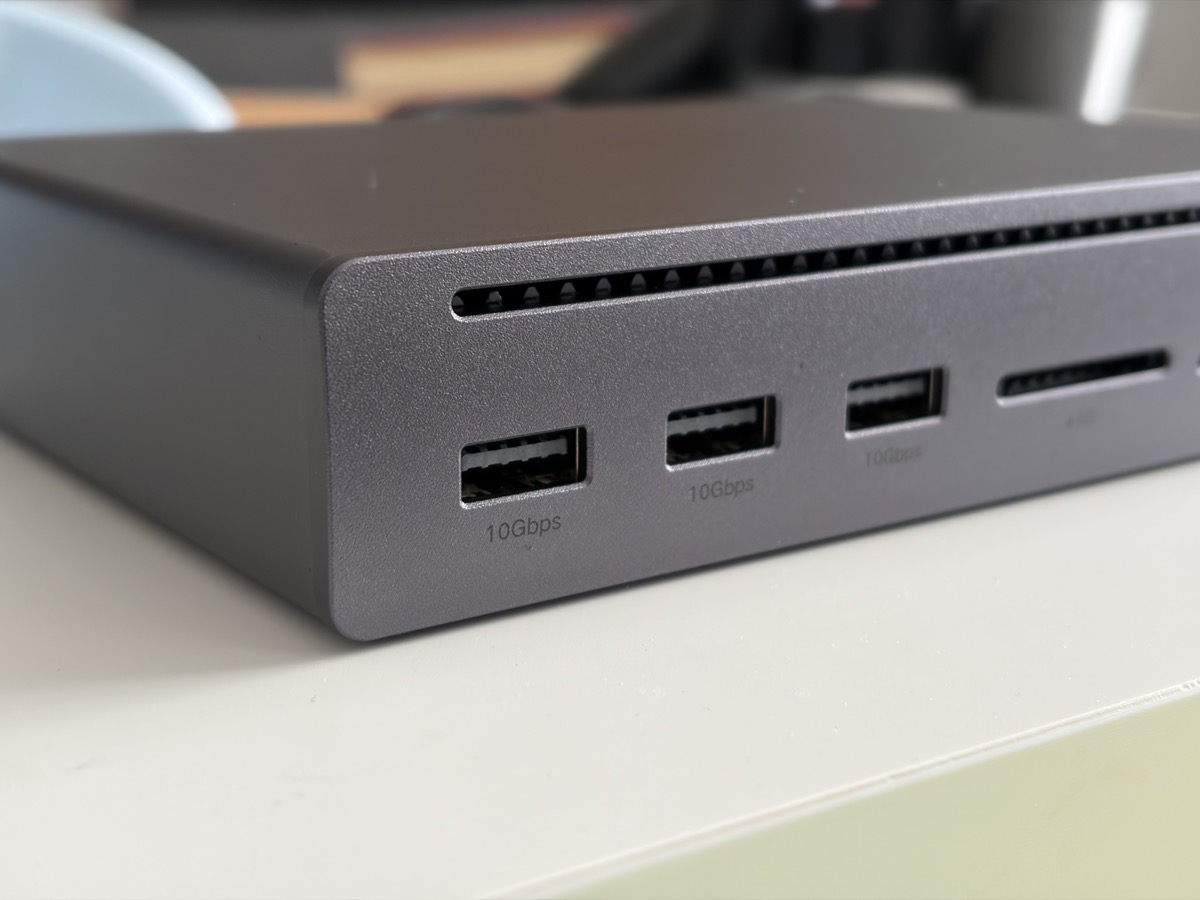

You still retain two downstream Thunderbolt 5 ports, a DisplayPort, an Ethernet port – though it steps down to 1GbE – and a DC power input on the back. Around the front, the 10-in-1 provides three 10Gbps USB-A ports, standard SD and microSD card slots maxing out at 170 MB/s, and a power button. You do lose out on the built-in SSD storage, the active cooling fan, and the highly convenient front-facing USB-C ports. Trading away front USB-C connectivity in favor of older USB-A ports feels like a slight misstep for a cutting-edge hub, but for a user who simply wants to run high-resolution displays, connect a few fast peripherals, and enjoy the raw throughput of Thunderbolt 5 without spending flagship money, it is a remarkably sensible entry point into the ecosystem.

Display Performance and The HDMI Hiccup

In actual daily use, relying on these docks feels like someone removed a digital speed limit you never consciously realized was holding you back. Display support is absolutely magnificent, though your exact mileage will be entirely determined by the specific chip inside your computer and your operating system. Both docks cap out at supporting dual 6K displays at 60Hz or a single massive 8K display at 60Hz. While some competing Thunderbolt 5 docks manage to squeeze in support for three external displays, the dual-monitor limit here covers the vast majority of professional workflows perfectly.

However, there is a rather significant elephant in the room that might throw a massive wrench into your particular desk setup: neither the 17-in-1 nor the 10-in-1 includes a native HDMI port. In a world where countless users share their primary monitors between a work laptop and a gaming desktop, the absence of HDMI is a baffling omission. If your monitor’s single DisplayPort is already occupied by a gaming rig, you are forced to rely on USB-C to HDMI adapter cables connected to the downstream Thunderbolt 5 ports. This introduces immediate friction, especially since macOS devices can be notoriously finicky about outputting the correct native resolutions over these adapter cables. Windows machines tend to handle the conversion beautifully, but Mac users relying heavily on HDMI displays should definitely tread carefully and prepare for potential troubleshooting.

Additionally, the included Thunderbolt 5 cable on the 17-in-1 is incredibly short, severely limiting your options for placing the dock on your desk. You are almost certainly going to have to buy a longer, officially certified Thunderbolt 5 cable right out of the gate to achieve a truly clean, hidden aesthetic.

The Verdict

Despite the glaring absence of an HDMI port and the frustratingly short included cable, the UGREEN Maxidok series represents a massive, undeniable leap forward for desktop connectivity. The transition to Thunderbolt 5 is real, and UGREEN has executed the hardware brilliantly. At $549, the 17-in-1 is an absolute powerhouse, combining a ridiculous array of ports, top-tier 140W power delivery, and an ingenious built-in SSD slot into a genuinely beautiful piece of industrial design. It is the definitive dock for the creative professional who refuses to compromise on absolutely anything and demands a single-cable solution for their entire digital life.

The $329 10-in-1, meanwhile, brings that exact same next-generation bandwidth to a much more accessible package, proving that you do not need to buy the biggest hub on the market to get the absolute fastest speeds. Both models are incredibly well-built, rock-solid in their reliability, and entirely ready to handle the next five years of peripheral technology. We finally have docking stations that are faster than the devices we plug into them, and navigating that kind of power is a wonderful problem to have. If you are building a modern desk setup and want a central hub that can handle virtually everything you throw at it, the UGREEN Maxidok lineup is currently setting the gold standard.

Design 10
Build quality 9
Compatibility 8
Feature set 8
